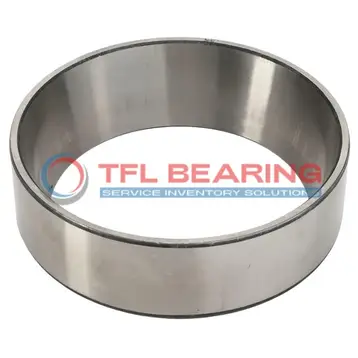

L433710 Single Cups (Imperial)

L433710 Single Cups (Imperial)

The L433710 is a single cup bearing with an 8.5-inch outer diameter and a width of 0.8125 inches, crafted from sturdy chrome steel. It fits well with tapered roller bearings and is interchangeable with Timken models for easy replacement.

Designed for standard use, it operates smoothly in temperatures ranging from -30°C to 110°C. Its ABEC-1 rating ensures reliable performance for general industrial applications.

The cup features precise tolerances, with a backing diameter of 8.30 inches at the front and 8.07 inches at the back. This makes it suitable for machinery requiring consistent alignment and durability.

Compliant with RoHS and REACH standards, it’s a practical choice for maintenance or upgrades in heavy-duty equipment. Ideal for use in construction or agricultural machinery where tapered roller bearings are common.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number L433710
  • Brand TFL
  • Interchangeable Timken
  • Size 8.07" x 8.5" x 0.8125"
  • Outer Dia 8.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.8125"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.06"
  • Cup Frontface Backing Diameter 8.30"
  • Cup Backface Backing Diameter 8.07"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number L433749-L433710
  • Cups Type Standard
  • Series L433700
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is L433710 Bearing Engineered for Reliability?

L433710 Bearing features chrome steel construction, ensuring durability in various operating conditions.
Its precise outer diameter tolerance of +0.001″ to 0 guarantees a secure fit and smooth performance.
The tapered roller design efficiently handles radial and thrust loads, making it versatile for different applications.
With a temperature range of -30° to 110°C, it performs reliably in both cold and warm environments.

Why Choose L433710 Bearing for Precision Tasks?

L433710 Bearing’s ABEC-1 rating ensures consistent precision, suitable for industrial applications.
The standard cup design simplifies installation, reducing downtime during maintenance or replacements.
Its chrome steel rings provide excellent wear resistance, extending the bearing’s service life.
The tapered roller type offers balanced load distribution, enhancing overall performance.

Built for Durability: L433710 Bearing

L433710 Bearing is crafted from high-quality chrome steel, known for its strength and longevity.
The cup width tolerance of +0.002″ to -0.01 ensures precise alignment, reducing operational stress.
Its standard cup type makes it compatible with various systems, offering flexibility in use.
With RoHS and REACH compliance, it meets environmental and safety standards.

Steel vs Ceramic Bearings: Strengths of L433710 Bearing

L433710 Bearing’s chrome steel material provides superior load capacity compared to ceramic alternatives.
The tapered roller design ensures efficient load distribution, reducing friction and heat generation.
Its precise dimensions and tolerances make it a reliable choice for heavy-duty applications.
The bearing operates smoothly within a wide temperature range, ensuring consistent performance.

Application

Industrial Uses of L433710 Bearing
L433710 Bearing is commonly used in heavy machinery, such as mining equipment and construction vehicles, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is L433710 Bearing Used?
You’ll often find L433710 Bearing in agricultural machinery, supporting components like gearboxes and wheel hubs. Its inch sizing makes it a convenient choice for equipment manufactured to imperial standards.

Built for Heavy-Duty Use: L433710 Bearing
L433710 Bearing excels in industrial applications like conveyor systems, where its robust design withstands continuous operation. The standard cup type simplifies replacement and maintenance.

Automotive vs Aerospace: Applications of L433710 Bearing
In automotive settings, L433710 Bearing is ideal for truck wheel assemblies, offering reliable performance under heavy loads. For aerospace, its precision fits auxiliary systems requiring consistent torque handling.

Perfect Fit for Automation: L433710 Bearing
L433710 Bearing works well in automated production lines, particularly in roller systems where smooth motion is key. The ABEC-1 rating ensures sufficient precision for most industrial automation needs.
