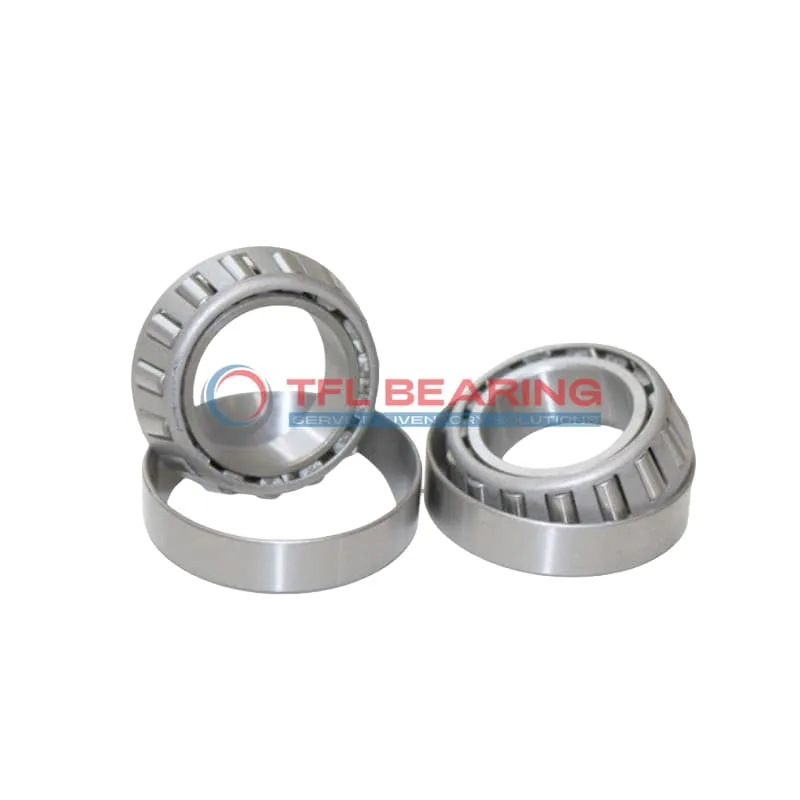

TS (Single Row Tapered Roller Bearings) (Imperial) 5395V-5320

The 5395V-5320 is a single-row tapered roller bearing with a 1.9375″ bore and 3.9843″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 56600 lbf radial and 7450 lbf thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty machinery like gearboxes or industrial equipment where combined loads are common.

Weighing 3.600 lb, it offers a robust yet manageable size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 5395V-5320
Brand TFL
Interchangeable Timken
Size 1.9375" x 3.9843" x 1.719"
Bore Dia 1.9375"
Bore Dia Tolerance +0.005" to 0
Outer Dia 3.9843"
Outer Dia Tolerance +0.001" to 0
Cone Width 1.751"
Cone Width Tolerance +0.003" to -0.01
Cup Width 1.4375"
Cup Width Tolerance +0.002" to -0.01
Width 1.719"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.14"
Cup Backface ToClear Radius 0.130"
Cone Frontface Backing Diameter 2.36"
Cone Backface Backing Diameter 2.6"
Cup Frontface Backing Diameter 3.82"
Cup Backface Backing Diameter 3.46"
Cage Cone Frontface Clearance 0.07"
Cage Cone Backface Clearance 0.08"
Effective Center Location -0.64"
System of Measurement Inch
Type Bearing
Cone Part Number 5395V
Cup Part Number 5320
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 5300
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 56600 lbf
Static Radial Load 60100 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 14700 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7450 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 3.600 lb

Features

Why Choose 5395V-5320 Bearing for Precision Tasks?

5395V-5320 Bearing is crafted with chrome steel rings and rollers, ensuring durability and high load capacity.
Its dynamic radial load rating of 56,600 lbf makes it suitable for heavy-duty applications.

The tapered roller design efficiently handles combined loads, providing stability and smooth operation.
With a standard radial clearance, it offers reliable performance in various industrial settings.

5395V-5320 Bearing operates within a temperature range of -30° to 110°C, adapting to diverse environments.
The steel cage maintains roller alignment, reducing wear and extending the bearing’s service life.

Application

Industrial Uses of 5395V-5320 Bearing
The 5395V-5320 Bearing is commonly used in heavy machinery like construction equipment and mining gear, where its tapered roller design handles combined loads efficiently.
Its chrome steel construction ensures durability even in tough environments, making it a reliable choice for long-term use.

Where Is 5395V-5320 Bearing Used?
You’ll often find 5395V-5320 Bearing in agricultural machinery, such as tractors and harvesters, where it supports high radial and thrust loads.
The inch sizing makes it compatible with older equipment, while the open design allows for easy lubrication.

Built for Heavy-Duty Use: 5395V-5320 Bearing
In industrial fans and pumps, 5395V-5320 Bearing provides stable performance under continuous operation.
The steel cage and chrome steel rollers offer excellent wear resistance, reducing maintenance needs.

Automotive vs Aerospace: Applications of 5395V-5320 Bearing
In automotive applications, 5395V-5320 Bearing is ideal for wheel hubs and differentials, thanks to its robust design.
For aerospace, its precision and load capacity make it suitable for auxiliary systems, though it’s more common in ground equipment.

Perfect Fit for Automation: 5395V-5320 Bearing
The 5395V-5320 Bearing works well in conveyor systems and robotic arms, where smooth rotation is key.
Its standard radial clearance ensures consistent performance without frequent adjustments.
