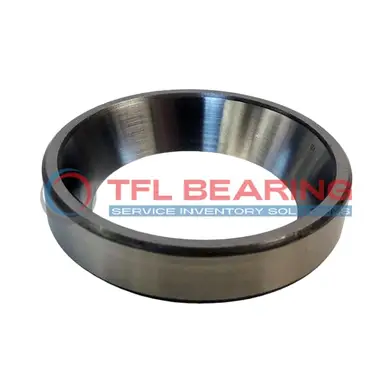

L507910 Single Cups (Imperial)

L507910 Single Cups (Imperial)

The L507910 is a single cup tapered roller bearing with an outer diameter of 3.4375 inches and a width of 0.5625 inches, crafted from durable chrome steel. It fits well with Timken bearings, making it a practical choice for replacements.

Designed for standard use, it operates smoothly in temperatures ranging from -30°C to 110°C. The cup’s precise tolerances ensure a reliable fit in various applications.

Its robust construction and ABEC-1 rating make it suitable for moderate-speed operations. The cup’s design allows for easy installation and maintenance.

Ideal for industrial machinery or automotive systems where tapered roller bearings are needed. Compliant with RoHS and REACH standards, it’s a safe and dependable option.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number L507910
  • Brand TFL
  • Interchangeable Timken
  • Size 3.11" x 3.4375" x 0.5625"
  • Outer Dia 3.4375"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.5625"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.06"
  • Cup Frontface Backing Diameter 3.29"
  • Cup Backface Backing Diameter 3.11"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number L507945-L507910 , L507949-L507910 , L507949-L507910-B
  • Cups Type Standard
  • Series L507900
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Does L507910 Bearing Ensure Smooth Operation?

L507910 Bearing is crafted from chrome steel, offering durability and resistance to wear in tapered roller applications.
Its precise outer diameter tolerance of +0.001″ to 0 ensures a snug fit, reducing vibration and noise.
The standard cup design simplifies installation, making it compatible with various interchangeable models like Timken.
With a temperature range of -30° to 110°C, it performs reliably in diverse operating conditions.

Application

Industrial Uses of L507910 Bearing
L507910 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered design handles radial and thrust loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is L507910 Bearing Used?
You’ll often find L507910 Bearing in automotive applications like wheel hubs and differential systems, thanks to its precise inch sizing and compatibility with Timken designs. Its robust build makes it reliable for long-term use.

Built for Heavy-Duty Use: L507910 Bearing
L507910 Bearing excels in industrial gearboxes and conveyor systems, where its standard cup type simplifies installation. The ABEC-1 rating ensures consistent performance without overcomplicating the design.

Automotive vs Industrial: Applications of L507910 Bearing
In automotive settings, L507910 Bearing supports smooth wheel rotation, while in industrial contexts, it’s trusted for pulley systems. Its temperature range (-30° to 110°C) suits both environments.
