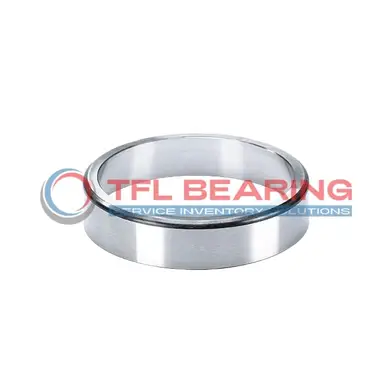

KL630310 Single Cups (Imperial)

KL630310 Single Cups (Imperial)

The KL630310 is a single cup bearing with an outer diameter of 7.5625 inches and a width of 0.748 inches, made from sturdy chrome steel. It fits well with Timken bearings, offering a reliable alternative for replacements.

Designed for tapered roller bearings, this cup handles moderate loads and operates smoothly in temperatures from -30°C to 110°C. Its ABEC-1 rating ensures decent precision for general applications.

The cup features a standard design with a backing diameter of 7.20 inches at the backface, making it easy to install in compatible housings. It’s compliant with RoHS and REACH standards for safe use.

Ideal for industrial machinery or automotive systems where tapered roller bearings are needed. Its durable construction ensures long service life even under regular use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number KL630310
  • Brand TFL
  • Interchangeable Timken
  • Size 7.20" x 7.5625" x 0.748"
  • Outer Dia 7.5625"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.748"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.08"
  • Cup Frontface Backing Diameter 7.40"
  • Cup Backface Backing Diameter 7.20"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number KL630349-KL630310
  • Cups Type Standard
  • Series L630300
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is KL630310 Bearing Engineered for Reliability?

KL630310 Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its tapered roller design ensures efficient load distribution, enhancing performance under stress.

The cup width tolerance of +0.002″ to -0.01″ allows for precise fitting, reducing operational issues.
With a temperature range of -30° to 110°C, it performs reliably in varied environments.

KL630310 Bearing’s standard cup type simplifies installation, saving time and effort.
Its ABEC-1 rating ensures consistent quality for industrial applications.

Application

Industrial Uses of KL630310 Bearing
KL630310 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is KL630310 Bearing Used?
You’ll often find KL630310 Bearing in industrial gearboxes and conveyor systems, thanks to its reliable performance under heavy loads. Its inch sizing makes it a good fit for machinery following imperial measurements.

Built for Heavy-Duty Use: KL630310 Bearing
KL630310 Bearing works well in mining equipment, where its robust design withstands constant vibration and shock loads. The standard cup type simplifies replacements in existing setups.

Automotive vs Aerospace: Applications of KL630310 Bearing
In automotive applications, KL630310 Bearing supports wheel hubs and drivetrains, offering stability under stress. For aerospace, its precision fits auxiliary systems requiring consistent performance.

Perfect Fit for Automation: KL630310 Bearing
KL630310 Bearing is a solid choice for automated assembly lines, where smooth rotation reduces downtime. The ABEC-1 rating ensures adequate precision for general industrial use.
