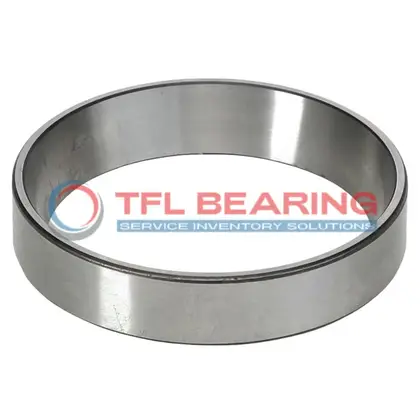

K36920 Single Cups (Imperial)

K36920 Single Cups (Imperial)

The K36920 is a tapered roller bearing cup with an outer diameter of 8.9375 inches and a width of 0.9063 inches, crafted from durable chrome steel. It fits seamlessly with Timken bearings, offering reliable interchangeability.

Designed for standard use, it operates smoothly in temperatures ranging from -30°C to 110°C. Its ABEC-1 rating ensures consistent performance for general industrial applications.

The cup features precise tolerances, with a backing diameter of 8.74 inches at the front and 8.43 inches at the back. This design provides a secure fit and easy installation.

Ideal for machinery requiring tapered roller bearings, such as automotive or heavy equipment. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for various industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K36920
  • Brand TFL
  • Interchangeable Timken
  • Size 8.43" x 8.9375" x 0.9063"
  • Outer Dia 8.9375"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.9063"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.06"
  • Cup Frontface Backing Diameter 8.74"
  • Cup Backface Backing Diameter 8.43"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number K36990-K36920
  • Cups Type Standard
  • Series 36900
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is K36920 Bearing Engineered for Reliability?

K36920 Bearing features chrome steel construction, ensuring durability and resistance to wear in demanding applications.
Its tapered roller design provides stable performance under heavy loads, making it suitable for industrial use.

The precise outer diameter tolerance of +0.001″ to 0 ensures a secure fit, reducing vibration and noise.
With a temperature range of -30° to 110°C, K36920 Bearing performs reliably in varying conditions.

The standard cup design simplifies installation, saving time and effort during maintenance.
Its ABEC-1 rating guarantees consistent quality and performance for general applications.

Application

Industrial Uses of K36920 Bearing
K36920 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered design handles radial and thrust loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is K36920 Bearing Used?
You’ll often find K36920 Bearing in agricultural machinery, supporting components like gearboxes and wheel hubs. Its inch sizing makes it a reliable choice for older or imperial-based systems.

Built for Heavy-Duty Use: K36920 Bearing
K36920 Bearing excels in industrial applications like conveyor systems, where its robust design withstands continuous operation. The tapered rollers provide smooth performance under varying load conditions.

Automotive vs Aerospace: Applications of K36920 Bearing
In automotive settings, K36920 Bearing is ideal for truck wheel hubs, offering stability under heavy loads. For aerospace, its precision fits auxiliary systems requiring consistent performance.

Perfect Fit for Automation: K36920 Bearing
K36920 Bearing works well in automated assembly lines, where its tapered rollers reduce friction. The chrome steel rings ensure long-term reliability in high-cycle operations.
