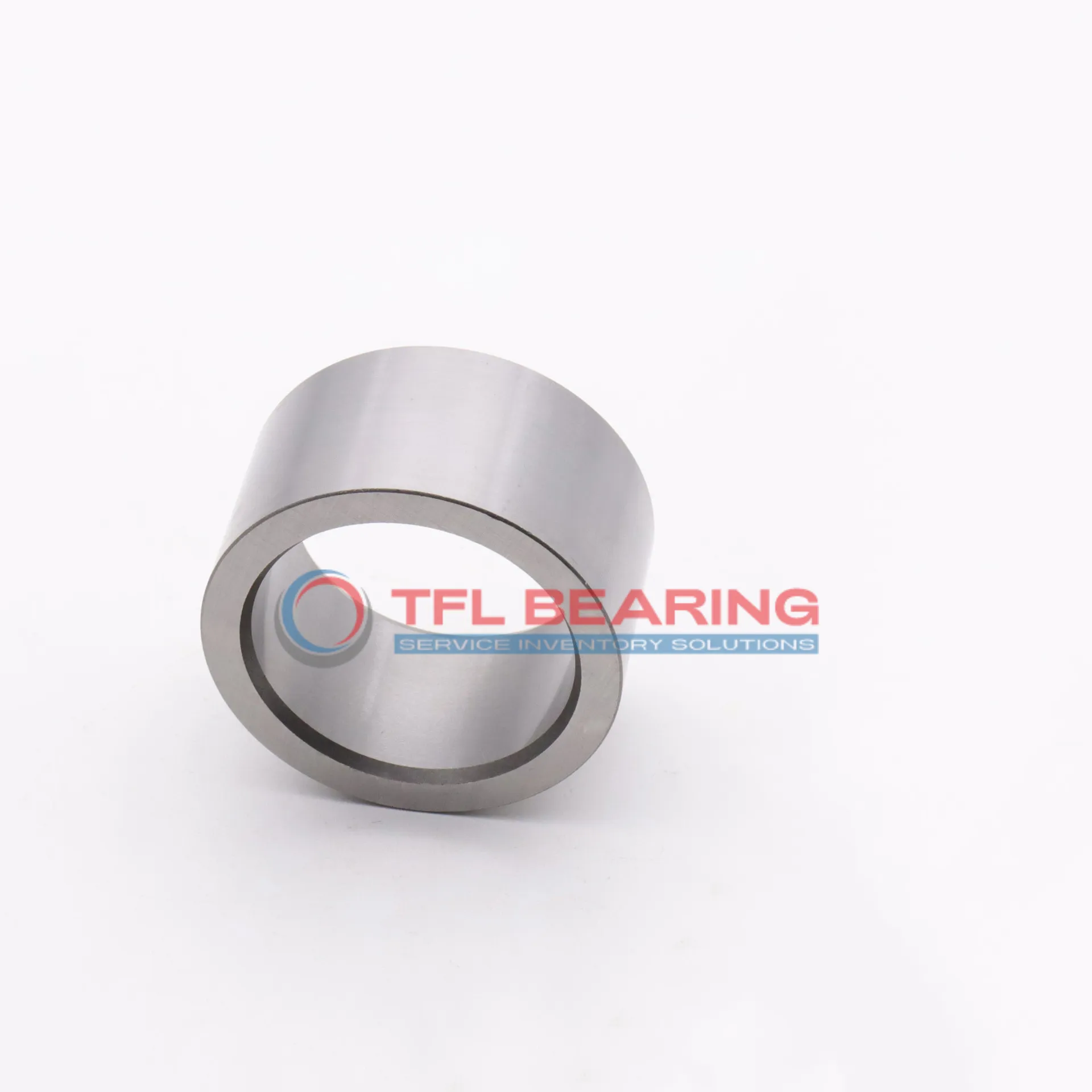

Inner Rings LR20X25X26.5

Inner Rings LR20X25X26.5

The LR20X25X26.5 is a needle roller bearing inner ring with a 20mm bore and 25mm outer diameter, crafted from sturdy chrome steel. It’s pre-lubricated for smooth operation and fits seamlessly with INA bearings for easy replacements.
With a width of 26.5mm and a minimal chamfer angle of 30°, it’s designed for compact spaces. The precise tolerances ensure a snug fit, reducing wear over time.
This inner ring is ideal for applications requiring high load capacity in confined areas, such as gear pumps or small engines. Its lightweight design at just 38g makes it easy to handle during assembly.
Compliant with RoHS standards, it’s a reliable choice for environmentally conscious projects. The 0.3mm rounded edges help prevent damage during installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LR20X25X26.5
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series LR
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.011mm to 0.002mm
  • Outer Dia 25 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 26.5 mm
  • Width Tolerance 0 to 0.21mm
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 38 g
  • Rmin 0.3 mm
Inner Rings LR20X25X26.5 dimension drawing
Download DWG Download PDF

Features

Performance Features of LR20X25X26.5 Bearing
LR20X25X26.5 Bearing is crafted from chrome steel, offering excellent durability and resistance to wear.
Its precise needle roller design ensures smooth operation even in compact spaces.
The bearing’s lubrication enhances performance, reducing friction and extending its service life.
With a bore diameter of 20 mm and outer diameter of 25 mm, it fits seamlessly into various applications.
LR20X25X26.5 Bearing’s chamfer angle of 30° facilitates easy installation and alignment.
Its metric measurements and compatibility with INA make it a versatile choice for many setups.

Application

Essential Roles of LR20X25X26.5 Bearing
LR20X25X26.5 Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The chrome steel construction ensures durability even in demanding environments.
In automotive applications, LR20X25X26.5 Bearing fits well in transmission systems, providing smooth rotation and reducing friction. Its metric dimensions make it a reliable choice for various vehicle models.
For automation equipment, LR20X25X26.5 Bearing supports precise movements in robotic arms and conveyor systems. The lubricated design helps maintain performance over long operational periods.
In household appliances like washing machines, LR20X25X26.5 Bearing ensures quiet and efficient operation. Its compact size and robust build make it ideal for space-constrained designs.
