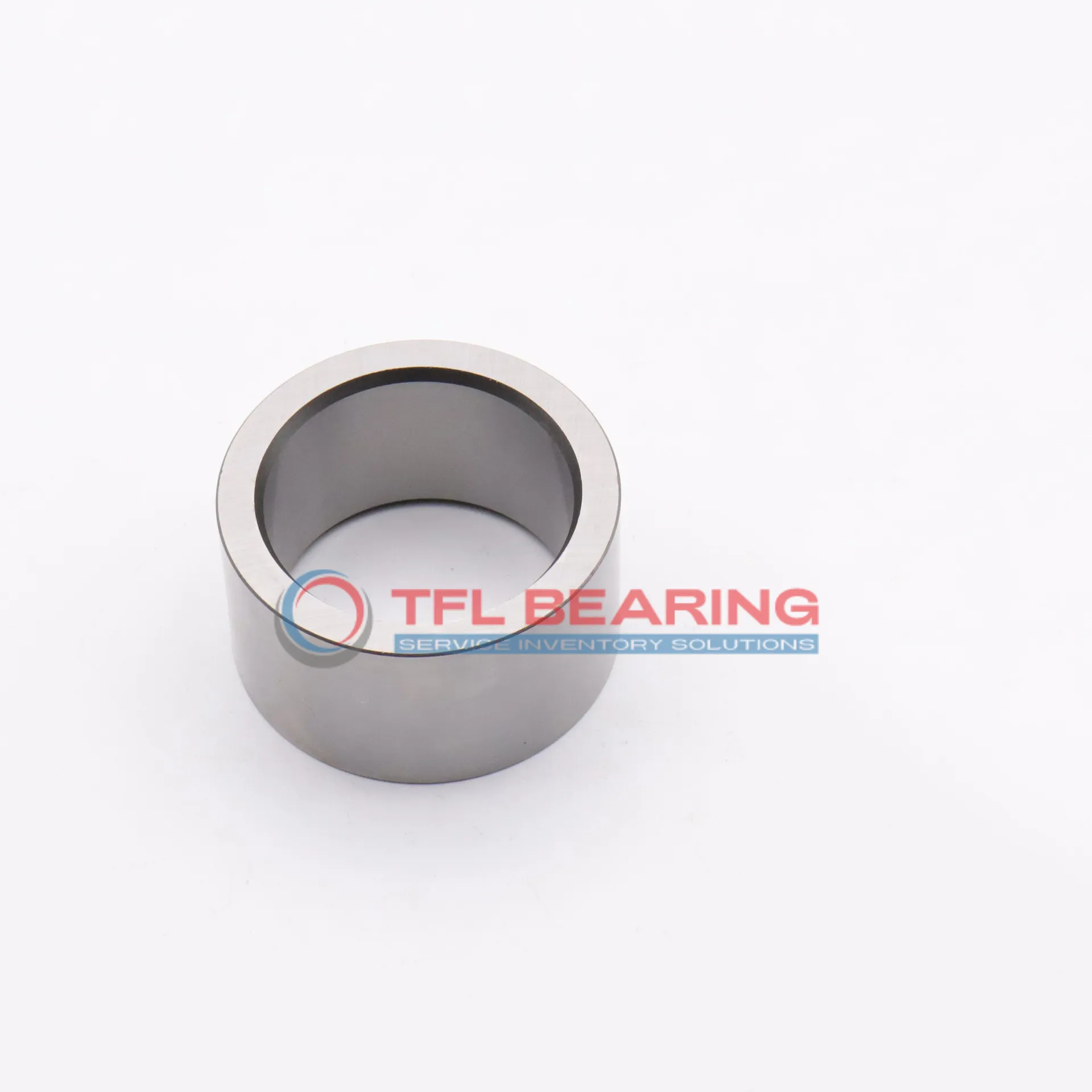

Inner Rings IR95X110X35-XL

The IR95X110X35-XL is a needle roller bearing inner ring with a 95mm bore and 110mm outer diameter, crafted from sturdy chrome steel. Its 35mm width and precise tolerances ensure a snug fit in demanding applications.
Lubricated for smooth operation, this ring reduces friction and wear, extending the life of your machinery. The chrome steel construction offers reliable strength under heavy loads.
With a minimum corner radius of 1.1mm, it fits seamlessly into compact designs. This model is interchangeable with INA bearings, making replacements straightforward.
Ideal for use in gearboxes, transmissions, or industrial equipment where precision and durability are key. Weighing 657g, it’s a robust yet manageable component for various mechanical setups. Compliant with RoHS standards for safety and environmental care.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number IR95X110X35-XL
Brand TFL
Interchangeable brand INA
System of Measurement Metric
Roller Bearing Type Needle
Series IR
Bore Dia 95 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 110 mm
Outer Dia Tolerance -0.027mm to -0.014mm
Width 35 mm
Width Tolerance -0.2mm to 0
Material Chrome Steel
Lubrication Lubricated
RoHS Compliant
Weight 657 g
Rmin 1.1 mm

Inner Rings IR95X110X35-XL dimension drawing

Download DWG Download PDF

Features

Performance Features of IR95X110X35-XL Bearing
IR95X110X35-XL Bearing is crafted from durable chrome steel, ensuring strength and longevity in demanding applications.
Its precise bore diameter of 95 mm with a tight tolerance range guarantees a secure fit for smooth operation.
The needle roller design enhances load distribution, making it suitable for high-performance machinery.
With RoHS compliance, IR95X110X35-XL Bearing meets environmental standards while delivering reliable performance.

Application

Industrial Uses of IR95X110X35-XL Bearing
IR95X110X35-XL Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its needle roller design handles high radial loads efficiently. The chrome steel material ensures durability even in demanding environments.
What Makes IR95X110X35-XL Bearing a Preferred Choice?
In automotive applications, IR95X110X35-XL Bearing fits well in gearboxes and drivetrains, providing smooth rotation under high stress. Its precise metric dimensions make it interchangeable with INA bearings, simplifying replacements.
Built for Heavy-Duty Use: IR95X110X35-XL Bearing
For industrial automation, IR95X110X35-XL Bearing supports robotic arms and conveyor systems, where its lubricated design reduces friction. The wide temperature tolerance ensures reliable performance in varying conditions.
Automotive vs Industrial: Applications of IR95X110X35-XL Bearing
In automotive settings, IR95X110X35-XL Bearing excels in transmission systems, while in industrial uses, it’s ideal for pumps and compressors. Its robust construction and compatibility with INA bearings add to its versatility.
