116098 Single Cups (Imperial)

116098 Single Cups (Imperial)

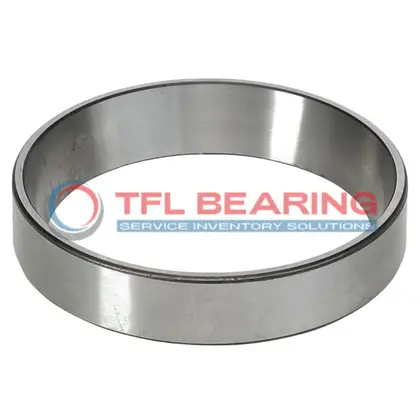

The 116098 is a single cup bearing with an outer diameter of 9.875 inches and a width of 1.875 inches, crafted from durable chrome steel. It fits well in imperial-sized systems and operates efficiently in temperatures from -30°C to 110°C.

Designed for tapered roller bearings, it offers reliable performance with an ABEC-1 rating. The cup features precise tolerances, ensuring a snug fit and smooth operation.

Its standard design makes it interchangeable with Timken models, simplifying replacements. Ideal for industrial machinery or automotive applications where tapered roller bearings are needed.

Compliant with RoHS and REACH standards, it’s a safe and dependable choice for various mechanical setups. The robust construction ensures long service life even under demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 116098
  • Brand TFL
  • Interchangeable Timken
  • Size 8.66" x 9.875" x 1.875"
  • Outer Dia 9.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.19"
  • Cup Frontface Backing Diameter 8.84"
  • Cup Backface Backing Diameter 8.66"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number EE116050-116098
  • Cups Type Standard
  • Series 116000
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Why Choose 116098 Bearing for Precision Tasks?

116098 Bearing is crafted from chrome steel, offering durability and resistance to wear in tapered roller applications.
Its precise dimensions (8.66″ x 9.875″ x 1.875″) ensure a snug fit, reducing misalignment risks.

The cup design features a standard series 116000 configuration, suitable for various industrial uses.
With an ABEC-1 rating, it balances cost and performance for general precision needs.

116098 Bearing operates reliably in temperatures from -30° to 110°C, adapting to diverse environments.
Its compliant RoHS and REACH status makes it a responsible choice for eco-conscious applications.

Application

Industrial Uses of 116098 Bearing
The 116098 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered design handles radial and axial loads efficiently. Its chrome steel construction ensures durability in tough working conditions.

Where Is 116098 Bearing Used?
You’ll often find 116098 Bearing in agricultural machinery, like tractors and harvesters, where its robust design supports high loads. The inch sizing makes it a convenient choice for equipment following imperial standards.

Built for Heavy-Duty Use: 116098 Bearing
116098 Bearing excels in industrial gearboxes, providing reliable performance under constant stress. The tapered rollers ensure smooth operation, even in high-vibration environments.

Automotive vs Aerospace: Applications of 116098 Bearing
In automotive applications, 116098 Bearing is used in wheel hubs and differentials, offering stability under heavy loads. While not typically used in aerospace, its precision makes it suitable for ground support equipment.

Practical Applications of 116098 Bearing
For conveyor systems in manufacturing plants, 116098 Bearing ensures smooth movement of heavy materials. Its ABEC-1 rating balances performance and cost-effectiveness for industrial use.
