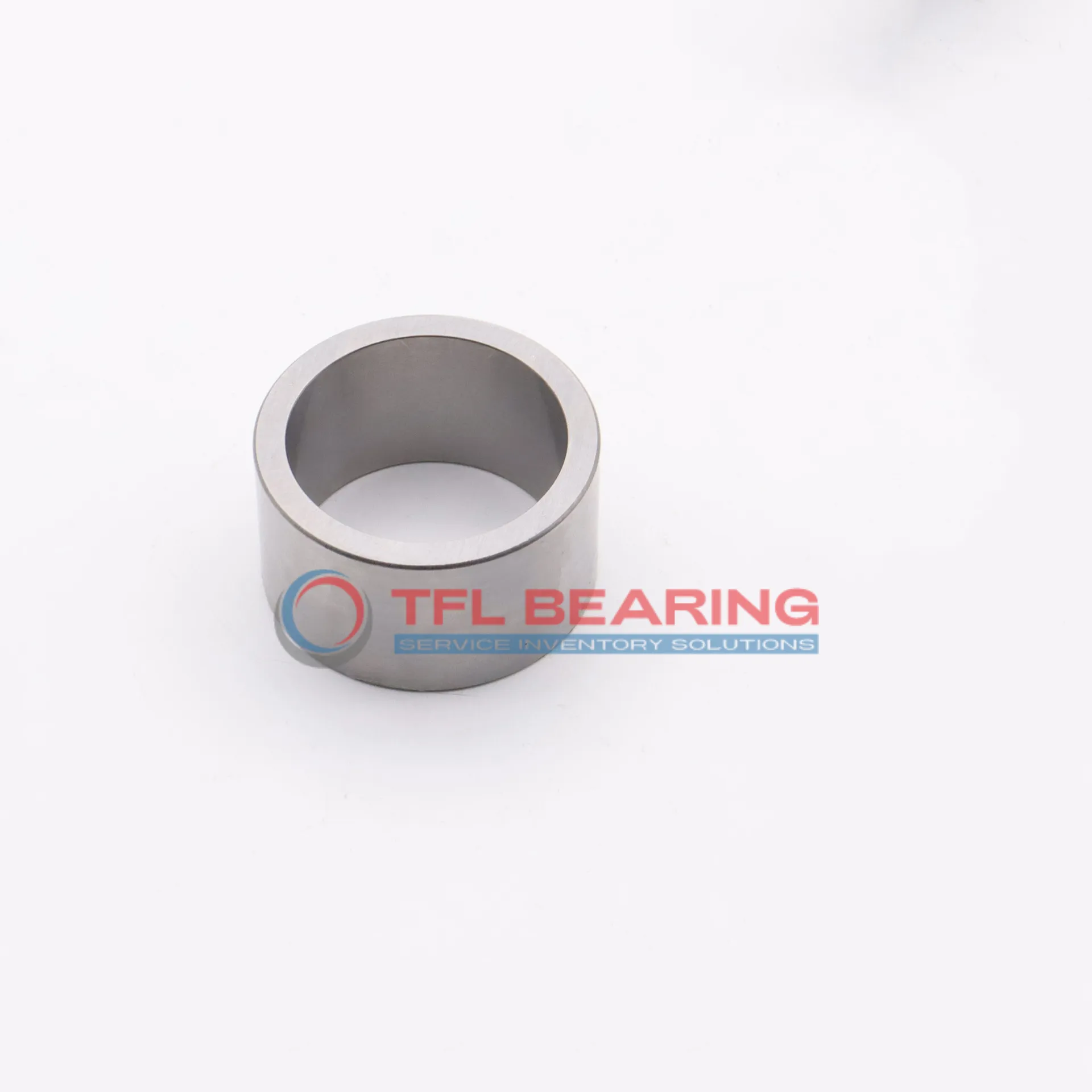

Inner Rings IR6X10X10-IS1-XL

The IR6X10X10-IS1-XL is a needle roller bearing inner ring with a 6mm bore and 10mm outer diameter, crafted from sturdy chrome steel. Its compact width of 10mm makes it suitable for tight spaces.
Pre-lubricated for smooth operation, it features a single lubrication hole for easy maintenance. The bearing handles moderate radial loads efficiently, with a chamfer angle designed for easy installation.
With a minimal edge radius of 0.3mm, it fits seamlessly into assemblies. Compliant with RoHS standards, it’s a reliable choice for precision applications.
Ideal for use in small gearboxes or automotive components where space is limited. Its interchangeability with INA bearings ensures easy replacement in existing setups.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number IR6X10X10-IS1-XL
Brand TFL
Interchangeable brand INA
System of Measurement Metric
Roller Bearing Type Needle
Series IR-IS1
Bore Dia 6 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 10 mm
Outer Dia Tolerance -0.023mm to -0.007mm
Width 10 mm
Width Tolerance -0.12mm to 0
Material Chrome Steel
Lubrication Lubricated
RoHS Compliant
Weight 3.7 g
Rmin 0.3 mm

Inner Rings IR6X10X10-IS1-XL dimension drawing

Download DWG Download PDF

Features

How Is IR6X10X10-IS1-XL Bearing Engineered for Reliability?
IR6X10X10-IS1-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its precise needle roller design ensures smooth operation even in compact spaces.
The bearing comes pre-lubricated, reducing friction and extending maintenance intervals.
With a single lubrication hole, it ensures consistent performance over time.
IR6X10X10-IS1-XL Bearing’s tight tolerances provide reliable fit and function in various applications.
Its lightweight design at just 3.7 grams makes it ideal for precision machinery.

Application

Industrial Uses of IR6X10X10-IS1-XL Bearing
IR6X10X10-IS1-XL Bearing is commonly used in compact industrial gearboxes, where its needle roller design saves space while handling radial loads efficiently. The chrome steel construction ensures durability in high-speed applications like conveyor systems.
What Makes IR6X10X10-IS1-XL Bearing a Preferred Choice?
In automotive transmissions, IR6X10X10-IS1-XL Bearing’s small size and lubrication holes help reduce friction, improving fuel efficiency. Its metric dimensions make it easy to integrate into both European and Asian vehicle designs.
Perfect Fit for Automation: IR6X10X10-IS1-XL Bearing
For robotic arms and 3D printers, IR6X10X10-IS1-XL Bearing offers smooth motion thanks to its precise tolerances. The lightweight design (just 3.7g) minimises energy consumption in repetitive tasks.
Medical vs Industrial: Where IR6X10X10-IS1-XL Bearing Excels
In medical devices like dental drills, IR6X10X10-IS1-XL Bearing’s lubricated design ensures quiet operation. Meanwhile, its robustness suits industrial tools like electric screwdrivers for long-term use.
