TS (Single Row Tapered Roller Bearings) (Imperial) 5583V-5535

TS (Single Row Tapered Roller Bearings) (Imperial) 5583V-5535

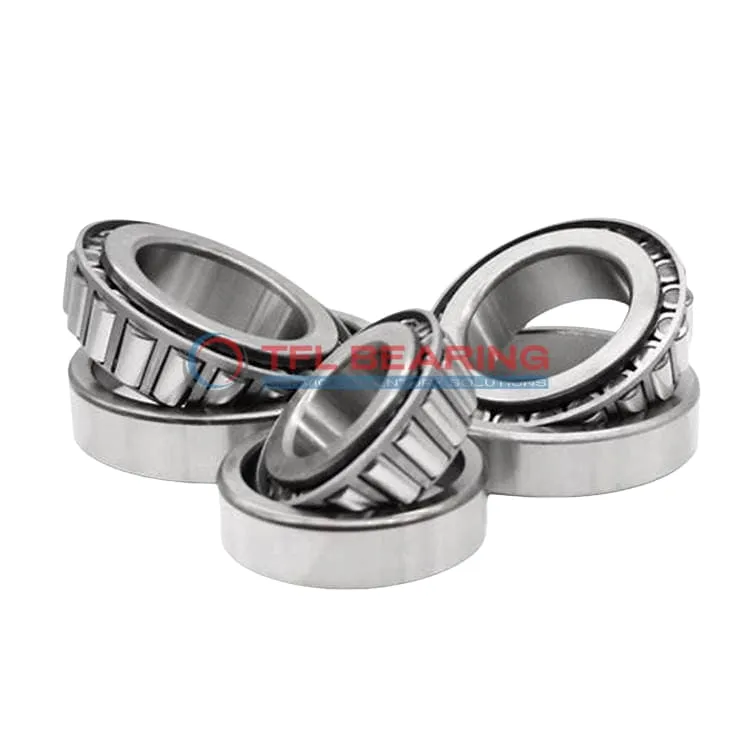

The 5583V-5535 is a single-row tapered roller bearing with a 2.375″ bore and 4.8125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 63,000 lbf radially and 10,000 lbf thrust, making it a robust choice for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, suitable for various industrial environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, axles, or machinery where combined radial and thrust loads are common.

Weighing 5.3 lb, it’s built to last while meeting RoHS and REACH standards for safety and compliance. The standard radial clearance ensures versatility across different applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 5583V-5535
  • Brand TFL
  • Interchangeable Timken
  • Size 2.375" x 4.8125" x 1.7187"
  • Bore Dia 2.375"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.8125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.723"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7187"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.83"
  • Cone Backface Backing Diameter 3.07"
  • Cup Frontface Backing Diameter 4.60"
  • Cup Backface Backing Diameter 4.17"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 5583V
  • Cup Part Number 5535
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 63000 lbf
  • Static Radial Load 73500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 16300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 10000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.3 lb

Features

Performance Features of 5583V-5535 Bearing

5583V-5535 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 63,000 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

5583V-5535 Bearing requires lubrication but is designed for long service intervals.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of 5583V-5535 Bearing
5583V-5535 Bearing is commonly used in heavy machinery, such as construction equipment and mining gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

Where Is 5583V-5535 Bearing Used?
You’ll often find 5583V-5535 Bearing in automotive applications like truck wheel hubs, where its high dynamic radial load capacity keeps things running smoothly. Its imperial sizing makes it a good fit for North American vehicle designs.

Built for Heavy-Duty Use: 5583V-5535 Bearing
In industrial gearboxes, 5583V-5535 Bearing provides reliable performance thanks to its sturdy steel cage and precise tolerances. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 5583V-5535 Bearing
While 5583V-5535 Bearing excels in automotive systems like differentials, it’s also suitable for aerospace ground support equipment. Its combined load handling makes it versatile across different industries.

Key Fields for 5583V-5535 Bearing
Agriculture machinery benefits from 5583V-5535 Bearing’s ability to handle heavy radial and thrust loads, such as in tractor transmissions. The standard radial clearance ensures consistent performance in varying temperatures.
