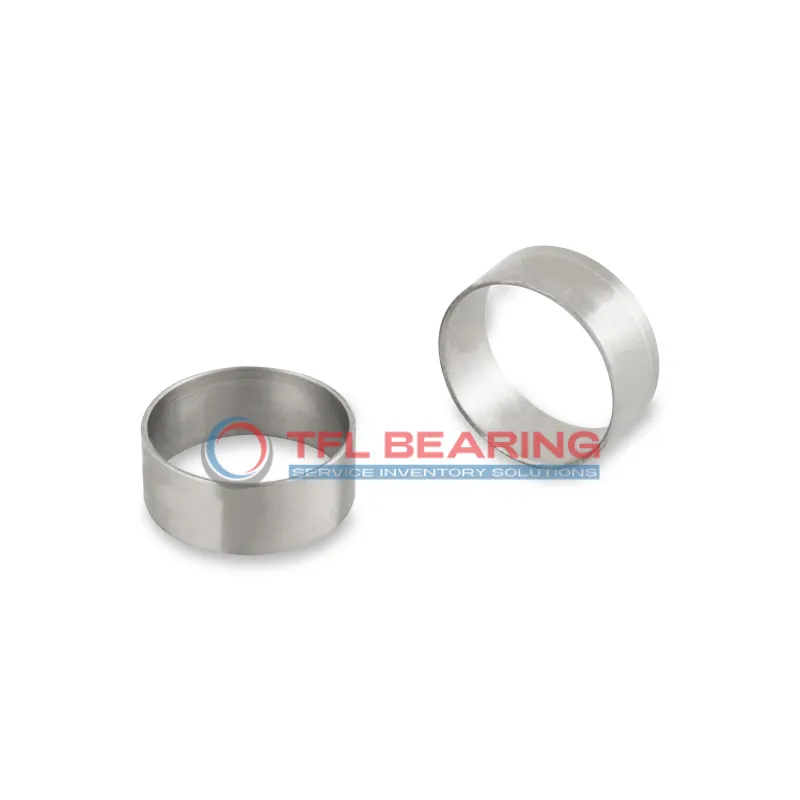

Inner Rings IR60X70X28-XL

Inner Rings IR60X70X28-XL

The IR60X70X28-XL is a needle roller bearing inner ring with a 60mm bore and 70mm outer diameter, crafted from sturdy chrome steel. It’s designed for smooth operation and easy integration with compatible needle roller cages.
Its precise tolerances ensure a snug fit, while the lubricated design reduces friction for longer service life. The 28mm width provides stability in compact spaces.
This model is interchangeable with INA bearings, offering flexibility for replacements or upgrades. Ideal for applications like gear pumps or transmissions where space is limited but performance is key.
Weighing just 215g, it’s lightweight yet durable. Compliant with RoHS standards, it’s a reliable choice for eco-conscious projects. The 1.1mm minimum corner radius allows for tight assembly in confined designs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR60X70X28-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 70 mm
  • Outer Dia Tolerance -0.021mm to -0.010mm
  • Width 28 mm
  • Width Tolerance -0.15mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 215 g
  • Rmin 1.1 mm
Inner Rings IR60X70X28-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR60X70X28-XL Bearing
IR60X70X28-XL Bearing is crafted from high-quality chrome steel, offering durability and resistance to wear.
Its precise bore and outer diameter tolerances ensure a perfect fit for needle roller applications.
The lubrication holes in IR60X70X28-XL Bearing help maintain smooth operation, reducing friction and heat buildup.
With a width of 28 mm, it provides stability and support in compact spaces.
IR60X70X28-XL Bearing is RoHS compliant, making it suitable for environmentally conscious applications.
Its lightweight design at 215 g ensures easy handling without compromising strength.

Application

Industrial Uses of IR60X70X28-XL Bearing
IR60X70X28-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads. The chrome steel construction ensures durability in demanding environments.
What Makes IR60X70X28-XL Bearing a Preferred Choice?
In automotive transmissions, IR60X70X28-XL Bearing provides smooth operation and reduces friction. Its metric sizing makes it compatible with various vehicle models, offering reliable performance.
Perfect Fit for Automation: IR60X70X28-XL Bearing
IR60X70X28-XL Bearing is ideal for robotic arms, where precision and compact design are essential. The lubricated feature ensures long-lasting performance with minimal maintenance.
Medical vs Industrial: Where IR60X70X28-XL Bearing Excels
While IR60X70X28-XL Bearing excels in industrial machinery, it also finds use in medical devices like imaging equipment. Its high load capacity and reliability make it versatile across applications.
