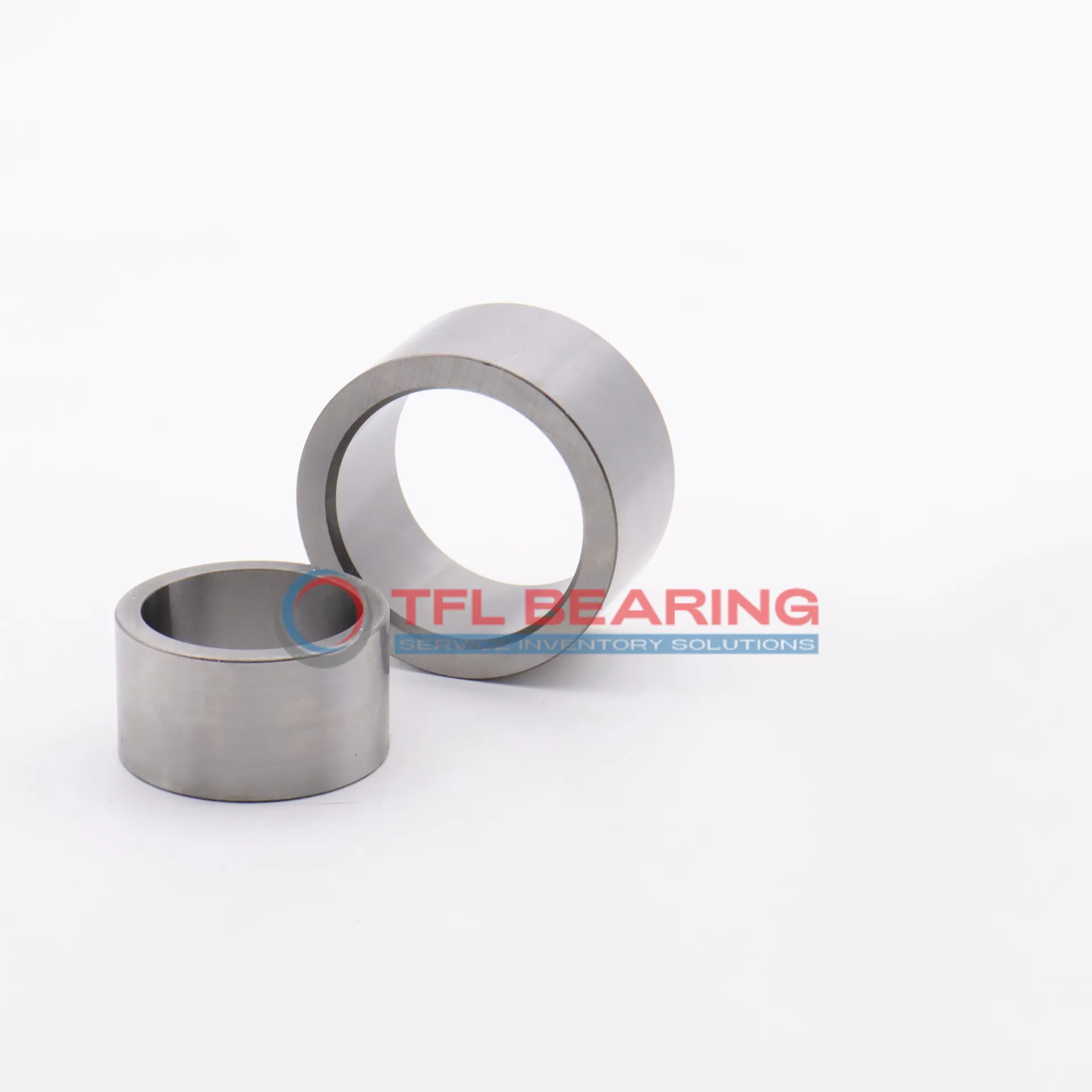

Inner Rings IR5X8X16-XL

Inner Rings IR5X8X16-XL

The IR5X8X16-XL is a needle roller bearing inner ring with a 5mm bore and 8mm outer diameter, crafted from sturdy chrome steel. Its compact design makes it suitable for tight spaces while maintaining durability.
With a width of 16mm, it fits neatly into assemblies where precision is key. The chrome steel construction ensures it can handle frequent use without wearing out quickly.
This inner ring is compatible with INA bearings, offering flexibility for replacements or upgrades. It’s ideal for small machinery or automotive applications where space and reliability matter.
Weighing just 3.7g, it’s lightweight yet robust. Compliant with RoHS standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR5X8X16-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 8 mm
  • Outer Dia Tolerance -0.023mm to -0.007mm
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 3.7 g
  • Rmin 0.3 mm
Inner Rings IR5X8X16-XL dimension drawing
Download DWG Download PDF

Features

How Is IR5X8X16-XL Bearing Engineered for Reliability?
IR5X8X16-XL Bearing is crafted from chrome steel, offering durability and resistance to wear in compact applications.
Its precise bore and outer diameter tolerances ensure a snug fit, enhancing stability during operation.
The needle roller design provides high load capacity despite its small size, making it suitable for tight spaces.
With RoHS compliance, IR5X8X16-XL Bearing meets environmental standards while maintaining performance.

Application

Industrial Uses of IR5X8X16-XL Bearing
IR5X8X16-XL Bearing is commonly used in compact industrial gearboxes, where its needle roller design efficiently handles high radial loads in tight spaces. The chrome steel construction ensures durability even in demanding environments.
What Makes IR5X8X16-XL Bearing a Preferred Choice?
In automotive applications, IR5X8X16-XL Bearing fits well in small transmission components, providing smooth rotation and reducing friction. Its metric dimensions make it easy to integrate into various vehicle designs.
Perfect Fit for Automation: IR5X8X16-XL Bearing
For robotic arms and precision machinery, IR5X8X16-XL Bearing offers reliable performance due to its low-profile design and consistent load distribution. The lubricated feature helps maintain smooth operation over time.
Medical vs Industrial: Where IR5X8X16-XL Bearing Excels
While IR5X8X16-XL Bearing is ideal for industrial tools, it also suits medical devices like small pumps, where its compact size and reliability are key. The chrome steel material ensures hygiene and long-term use.
