Inner Rings IR30X38X20-IS1-XL

Inner Rings IR30X38X20-IS1-XL

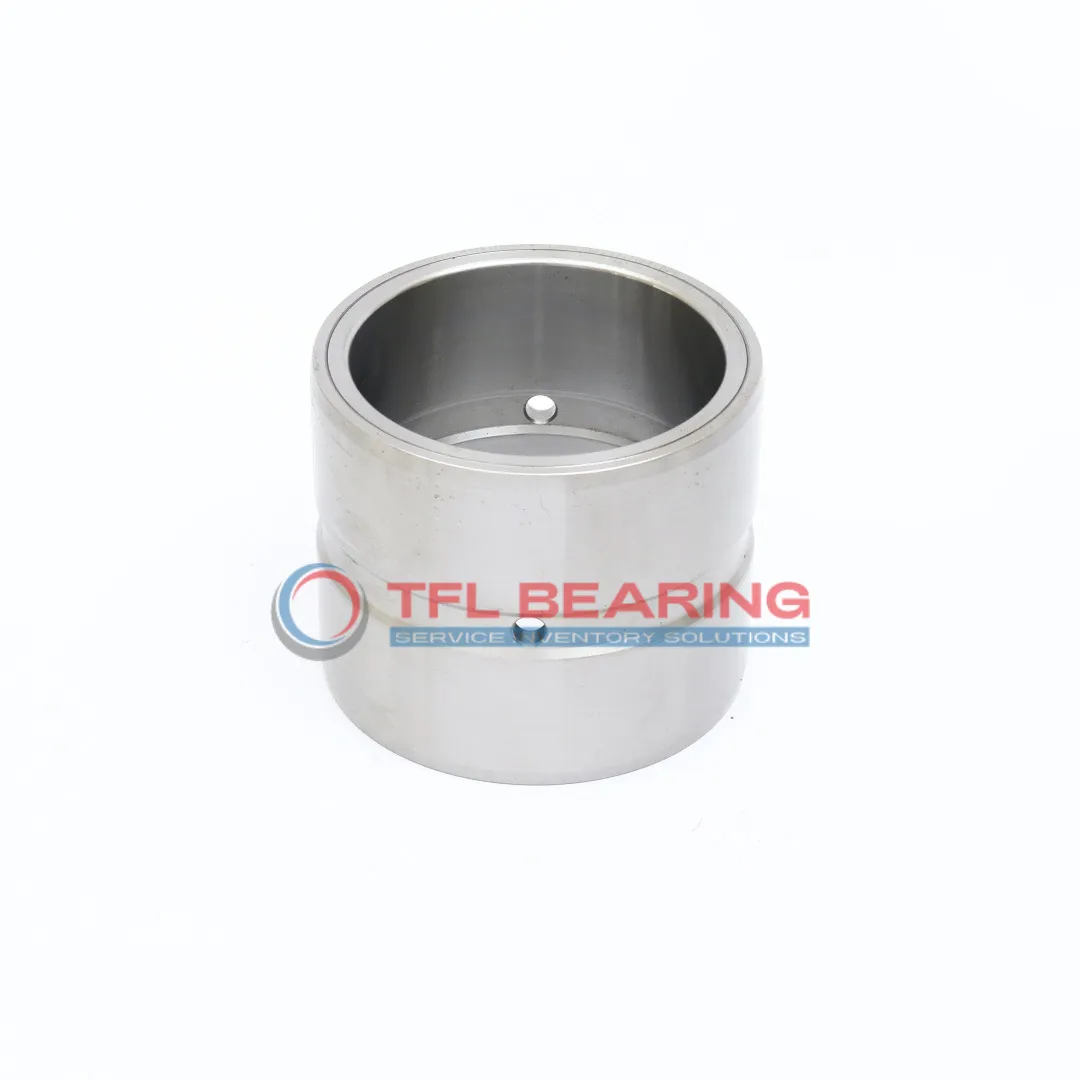

The IR30X38X20-IS1-XL is a needle roller bearing inner ring with a 30mm bore and 38mm outer diameter, crafted from sturdy chrome steel. Its compact 20mm width makes it a space-saving choice for tight assemblies.
Pre-lubricated for smooth operation, it features a single lubrication hole for easy maintenance. The precise tolerances ensure a reliable fit, with a minimal chamfer angle for seamless integration.
This model is compatible with INA bearings, offering a practical replacement option. Ideal for applications like gear pumps or transmission systems where space and precision are key.
Weighing just 77g, it’s lightweight yet durable. Compliant with RoHS standards, it’s a safe and efficient choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR30X38X20-IS1-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR-IS1
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 38 mm
  • Outer Dia Tolerance -0.004mm to +0.005mm
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 77 g
  • Rmin 0.6 mm
Inner Rings IR30X38X20-IS1-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR30X38X20-IS1-XL Bearing
IR30X38X20-IS1-XL Bearing is crafted from chrome steel, offering strong resistance to wear and tear.
Its precise bore and outer diameter tolerances ensure a perfect fit for needle roller applications.
The lubrication hole in IR30X38X20-IS1-XL Bearing helps maintain smooth operation with minimal friction.
With a compact design and a weight of just 77g, it is ideal for space-constrained installations.
IR30X38X20-IS1-XL Bearing meets RoHS standards, making it suitable for environmentally conscious applications.
Its durable construction ensures reliable performance even in demanding industrial environments.

Application

Industrial Uses of IR30X38X20-IS1-XL Bearing
IR30X38X20-IS1-XL Bearing is commonly used in industrial machinery, especially in compact spaces where high load capacity is needed, like gearboxes and pumps. Its needle roller design ensures efficient performance even in tight configurations.
Where Is IR30X38X20-IS1-XL Bearing Used?
In automotive applications, IR30X38X20-IS1-XL Bearing fits well in transmission systems and steering mechanisms, thanks to its precise dimensions and durability. The chrome steel material adds to its longevity under heavy use.
Perfect Fit for Automation: IR30X38X20-IS1-XL Bearing
For automation equipment, IR30X38X20-IS1-XL Bearing works smoothly in robotic arms and assembly lines, where reliability is key. The lubrication holes help maintain consistent performance over time.
Medical vs Industrial: Where IR30X38X20-IS1-XL Bearing Excels
While IR30X38X20-IS1-XL Bearing is versatile for industrial gear, it also suits medical devices like small motors in diagnostic tools. Its metric sizing ensures compatibility with various equipment designs.
