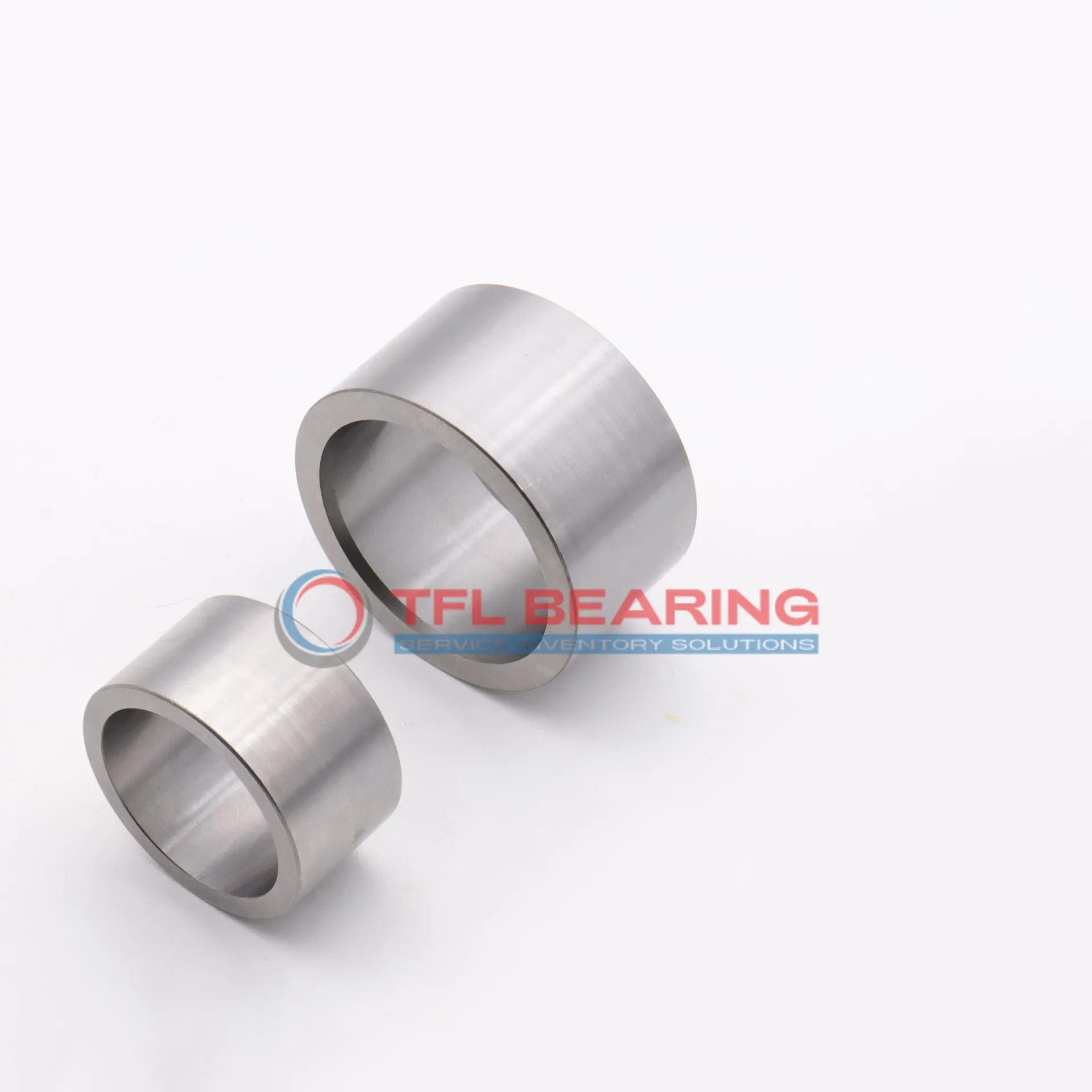

Inner Rings IR25X30X30-XL

Inner Rings IR25X30X30-XL

The IR25X30X30-XL is a needle roller bearing inner ring with a 25mm bore and 30mm outer diameter, crafted from sturdy chrome steel. Its compact width of 30mm makes it a space-saving choice for tight assemblies.
Pre-lubricated for smooth operation, this ring handles high radial loads with ease. The precise tolerances ensure a snug fit, reducing wear over time.
With a minimal chamfer radius of 0.3mm, it fits seamlessly into most designs. It’s interchangeable with INA bearings, offering flexibility for replacements.
Ideal for gearboxes or automotive applications where durability and precision are key. Compliant with RoHS standards, it’s a reliable and safe component for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR25X30X30-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.012mm to 0
  • Width 30 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 53 g
  • Rmin 0.3 mm
Inner Rings IR25X30X30-XL dimension drawing
Download DWG Download PDF

Features

Why Choose IR25X30X30-XL Bearing for Precision Tasks?
IR25X30X30-XL Bearing is crafted from high-quality chrome steel, ensuring durability and resistance to wear.
Its precise dimensions and tight tolerances make it ideal for applications requiring accuracy.
The needle roller design of IR25X30X30-XL Bearing allows for high load capacity in a compact space.
It comes pre-lubricated, reducing friction and ensuring smooth operation right from installation.
With a lightweight design at just 53 g, IR25X30X30-XL Bearing is easy to handle and install.
Its compliance with RoHS standards ensures it meets environmental and safety requirements.

Application

Key Fields for IR25X30X30-XL Bearing
IR25X30X30-XL Bearing is commonly used in industrial gearboxes, where its compact design and needle roller construction help manage high radial loads efficiently. The chrome steel material ensures durability in demanding environments.
In automotive applications, IR25X30X30-XL Bearing fits well in transmission systems, providing smooth operation and reducing friction. Its metric sizing makes it a reliable choice for various vehicle models.
For automation equipment, IR25X30X30-XL Bearing supports precise movements in robotic arms and conveyor systems. The lubricated design enhances performance, ensuring long service life even with frequent use.
In household appliances like washing machines, IR25X30X30-XL Bearing contributes to quieter operation and improved efficiency. Its lightweight construction is ideal for reducing overall machine weight.
