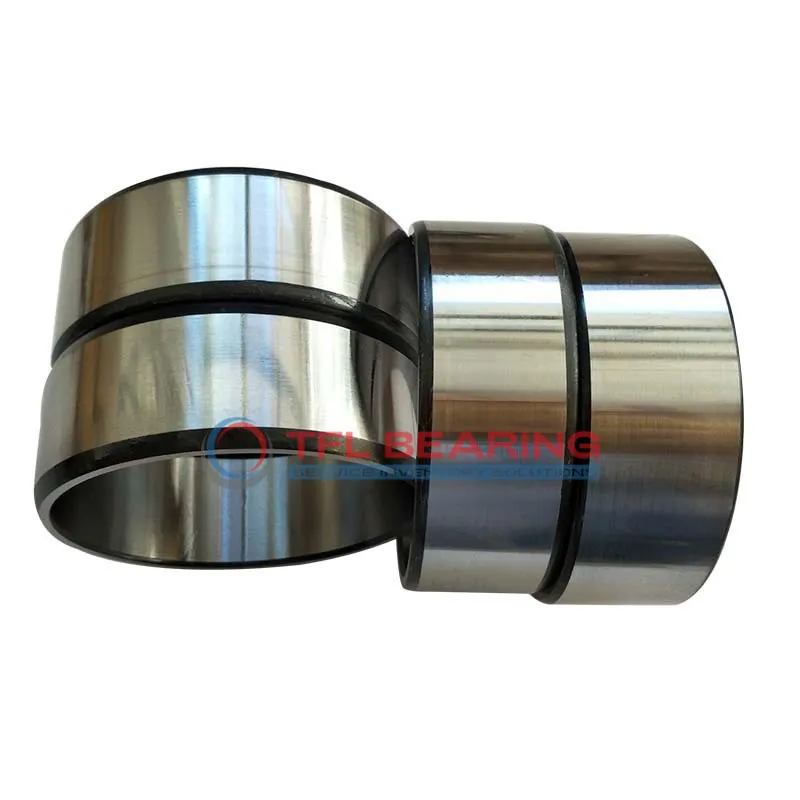

Inner Rings IR22X28X30-XL

Inner Rings IR22X28X30-XL

The IR22X28X30-XL is a needle roller bearing inner ring with a 22mm bore and 28mm outer diameter, crafted from sturdy chrome steel. Its 30mm width provides a solid fit for high-load applications.
Pre-lubricated for smooth operation, it reduces friction and wear in demanding setups. The precise tolerances ensure reliable performance under stress.
With a minimal corner radius of 0.3mm, it fits snugly in compact spaces. The chrome steel construction offers excellent durability for long-term use.
Ideal for gearboxes or automotive systems where space is limited but performance is key. Compliant with RoHS standards, it’s a safe choice for various industrial applications.
Weighing just 54.4 grams, it’s lightweight yet robust enough for heavy-duty tasks. Compatible with INA bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR22X28X30-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 22 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.012mm to 0
  • Width 30 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 54.4 g
  • Rmin 0.3 mm
Inner Rings IR22X28X30-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR22X28X30-XL Bearing
IR22X28X30-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its precise dimensions ensure a snug fit, with a bore diameter of 22 mm and outer diameter of 28 mm.
The needle roller design provides high load capacity in a compact space, ideal for tight applications.
With a width of 30 mm, it balances strength and space efficiency.
IR22X28X30-XL Bearing comes pre-lubricated, reducing initial setup time and maintenance.
Its compliance with RoHS standards ensures it meets environmental and safety regulations.
The bearing’s chamfer angle and minimal radius (Rmin 0.3 mm) facilitate easier installation.
Weighing just 54.4 g, it is lightweight yet robust for its size.

Application

Industrial Uses of IR22X28X30-XL Bearing
IR22X28X30-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, IR22X28X30-XL Bearing fits well in transmission systems, providing smooth rotation and reducing friction. Its metric sizing makes it a versatile choice for various vehicle models.

For automation equipment, IR22X28X30-XL Bearing offers reliable performance in robotic arms and conveyor systems. The lubricated design helps maintain consistent operation over long periods.

Where Is IR22X28X30-XL Bearing Used?
You’ll often find IR22X28T30-XL Bearing in printing machinery, where its precision helps maintain accurate paper feed. The narrow width allows for space-saving designs without compromising performance.

In household appliances like washing machines, IR22X28T30-XL Bearing supports rotating drums with minimal noise. Its chrome steel material resists wear from frequent use.

Built for Heavy-Duty Use: IR22X28T30-XL Bearing
IR22X28T30-XL Bearing works well in construction equipment, handling heavy loads while maintaining stability. The lubricated design reduces maintenance needs in dusty job sites.

For agricultural machinery, IR22X28T30-XL Bearing provides reliable performance in harvesters and tractors. Its durable construction stands up to tough field conditions.

Medical vs Industrial: Where IR22X28T30-XL Bearing Excels
In medical devices, IR22X28T30-XL Bearing offers smooth operation for precise instruments like dental drills. The chrome steel material meets hygiene requirements.

For industrial pumps, IR22X28T30-XL Bearing handles continuous operation with minimal wear. Its compact size fits well in space-constrained designs.
