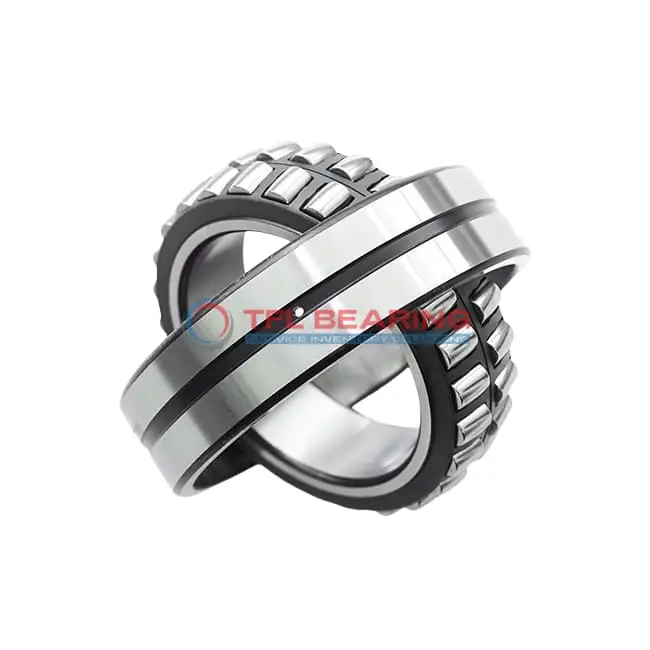

22322 CY W33 Double Row Spherical Roller Bearing

22322 CY W33 Double Row Spherical Roller Bearing

The 22322 CY W33 is a double-row spherical roller bearing with a 110mm bore and 240mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 222336 lbf and operates smoothly at speeds up to 2800 RPM.

Its brass cage and open design ensure durability and easy lubrication, with a temperature range from -30°C to 200°C. The bearing features a lubrication groove and holes for convenient maintenance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 18kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22322 CY W33
  • Brand TFL
  • Interchangeable SKF
  • Size 110 x 240 x 80 mm
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 80 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 143 mm
  • Shoulder/Recess Dia Of Outer Ring 204 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 222336 lbf
  • Static Radial Load 251786 lbf
  • Max Speed 2800 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 18 kg
  • Price （US$） US$213.12

Features

Performance Features of 22322 CY W33 Bearing

22322 CY W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 222336 lbf, making it suitable for heavy-duty applications.

The brass cage ensures proper roller alignment, reducing friction and enhancing durability.
With a maximum speed of 2800 rpm, it delivers reliable performance under high-stress conditions.

22322 CY W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its double-row spherical design accommodates misalignment, ensuring smooth operation in various setups.

The lubrication groove and hole design in 22322 CY W33 Bearing facilitate easy maintenance.
This feature helps extend the bearing’s service life while reducing downtime.

22322 CY W33 Bearing’s robust construction makes it ideal for demanding industrial environments.
Its high static radial load capacity of 251786 lbf ensures long-term reliability.

Application

Industrial Uses of 22322 CY W33 Bearing
The 22322 CY W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads effortlessly. Its brass cage ensures smooth operation even under high stress.

In mining equipment, 22322 CY W33 Bearing’s robust construction makes it ideal for conveyors and pulverisers, where durability is key. The lubrication groove design helps maintain performance in dusty environments.

For paper manufacturing, 22322 CY W33 Bearing supports rollers in high-speed production lines, thanks to its high dynamic load capacity. The chrome steel rollers provide long service life even with continuous use.

Where Is 22322 CY W33 Bearing Used?
You’ll often find 22322 CY W33 Bearing in wind turbines, where its spherical roller design compensates for shaft misalignment. The wide temperature range ensures reliability in varying weather conditions.

In steel plants, 22322 CY W33 Bearing handles extreme loads in rolling mills, with its brass cage reducing friction. The metric sizing makes it easy to replace in European and Asian equipment.

Built for Heavy-Duty Use: 22322 CY W33 Bearing
This bearing excels in construction equipment like cranes, where its high static load rating provides stability. The open seal design allows for easy relubrication during maintenance.

In marine applications, 22322 CY W33 Bearing withstands harsh conditions on ship propulsion systems. The corrosion-resistant materials ensure longevity despite exposure to saltwater.

Automotive vs Aerospace: Applications of 22322 CY W33 Bearing
In truck transmissions, 22322 CY W33 Bearing manages heavy loads, while in aircraft landing gear, its precision ensures smooth operation. The same reliability adapts to vastly different environments.

For industrial fans, 22322 CY W33 Bearing’s high-speed capability keeps systems running quietly. The spherical rollers automatically adjust to minor misalignments, reducing wear.
