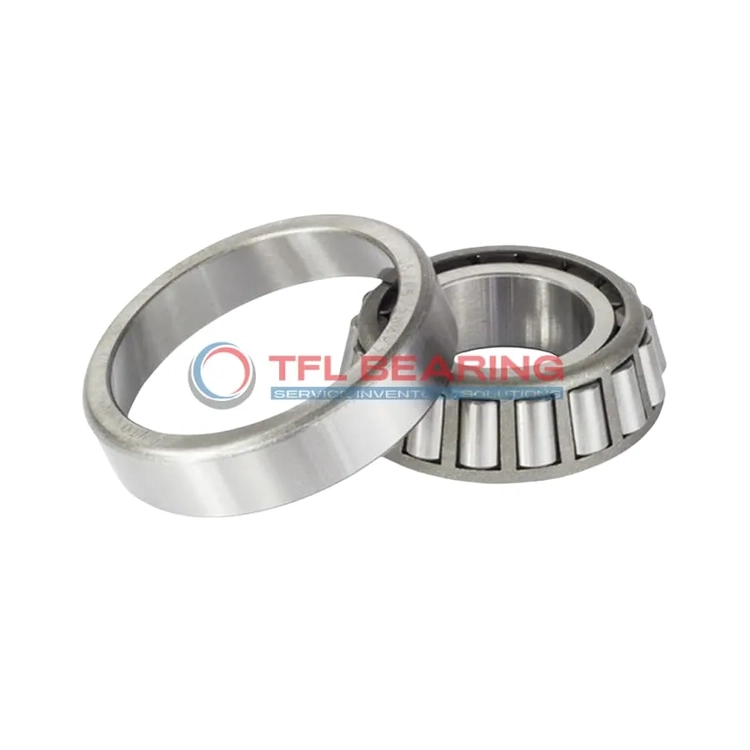

TS (Single Row Tapered Roller Bearings) (Imperial) 4C-6CE

TS (Single Row Tapered Roller Bearings) (Imperial) 4C-6CE

The 4C-6CE is a single-row tapered roller bearing with a 0.6875″ bore and 1.9349″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 4550 lbf and suits moderate-speed applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for machinery like gearboxes or wheel hubs where combined loads are common.

Weighing just 0.4lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 4C-6CE
  • Brand TFL
  • Interchangeable Timken
  • Size 0.6875" x 1.9349" x 0.8703"
  • Bore Dia 0.6875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 1.9349"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.4688"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8703"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.1"
  • Cone Frontface Backing Diameter 0.87"
  • Cone Backface Backing Diameter 0.96"
  • Cup Frontface Backing Diameter 1.61"
  • Cup Backface Backing Diameter 1.46"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.07"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 4C
  • Cup Part Number 6CE
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5C
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 4550 lbf
  • Static Radial Load 4640 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 1180 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 969 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.4 lb

Features

Performance Features of 4C-6CE Bearing

4C-6CE Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 4550 lbf, ensuring reliable operation in various applications.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in diverse conditions.

How Is 4C-6CE Bearing Engineered for Reliability?

4C-6CE Bearing features a tapered roller design, optimised for handling both radial and thrust loads.
The chrome steel construction enhances durability, while the open design simplifies maintenance.
Its standard radial clearance ensures smooth operation, suitable for ABEC-1 precision requirements.
The bearing’s effective centre location improves load distribution, enhancing overall performance.

Built for Durability: 4C-6CE Bearing

4C-6CE Bearing’s single-row construction provides a compact solution for combined load applications.
The chrome steel rollers and rings offer excellent wear resistance, prolonging service life.
With a static radial load capacity of 4640 lbf, it handles demanding conditions with ease.
Its standard cup type design ensures compatibility with various housing configurations.

Steel vs Ceramic Bearings: Strengths of 4C-6CE Bearing

4C-6CE Bearing uses chrome steel for both rollers and rings, balancing cost and performance.
The steel cage ensures stability, while the tapered roller design manages combined loads efficiently.
Its dynamic thrust rating of 969 lbf (Ca90) makes it suitable for diverse industrial uses.
The bearing operates within a broad temperature range, maintaining reliability in various environments.

Why Choose 4C-6CE Bearing for Precision Tasks?

4C-6CE Bearing’s ABEC-1 rating ensures consistent performance in precision applications.
The tapered roller design minimises friction, supporting smooth and quiet operation.
With a dynamic radial rating (C90) of 1180 lbf, it delivers reliable long-term service.
The bearing’s standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of 4C-6CE Bearing
The 4C-6CE Bearing is commonly used in industrial gearboxes, where its tapered roller design handles combined radial and thrust loads efficiently. Its chrome steel construction ensures durability in heavy machinery like conveyors and presses.

Where Is 4C-6CE Bearing Used?
You’ll often find 4C-6CE Bearing in automotive differentials, where its precise load handling improves performance. Its inch sizing makes it a reliable choice for classic and modern vehicles alike.

Built for Heavy-Duty Use: 4C-6CE Bearing
4C-6CE Bearing excels in construction equipment, such as wheel loaders, thanks to its robust steel cage. The open design allows for easy lubrication, extending its lifespan in tough conditions.

Automotive vs Aerospace: Applications of 4C-6CE Bearing
In automotive systems, 4C-6CE Bearing supports axles and transmissions, while its precision suits aerospace landing gear components. The standard radial clearance ensures smooth operation in both fields.

Perfect Fit for Automation: 4C-6CE Bearing
4C-6CE Bearing works well in robotic arms, where its tapered rollers provide stability during repetitive movements. The ABEC-1 rating balances precision and cost for industrial automation needs.
