Heavy Duty Needle Roller Bearings (Machined) NK5/10-TV-XL

Heavy Duty Needle Roller Bearings (Machined) NK5/10-TV-XL

The NK5/10-TV-XL is a heavy-duty needle roller bearing with a 5mm bore and 10mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 596 lbf and spins at speeds up to 39,000 RPM, making it suitable for high-speed applications.
Its open design and PA66 cage ensure smooth operation, while the press-fit shaft mount provides a secure installation. The bearing requires regular lubrication to maintain optimal performance.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for use in compact machinery or automotive components where space is limited but high load capacity is needed.
Weighing just 3.1g, it’s lightweight yet durable. Compliant with RoHS standards, it operates in temperatures from -20°C to 110°C, making it versatile for various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NK5/10-TV-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 5 mm
  • Bore Dia Tolerance 0.01mm to 0.018mm
  • Outer Dia 10 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Steel
  • Cage Material PA66
  • Roller Material Steel
  • Dynamic Radial Load 596 lbf
  • Static Radial Load 432 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 39000 rpm
  • Weight 3.1 g

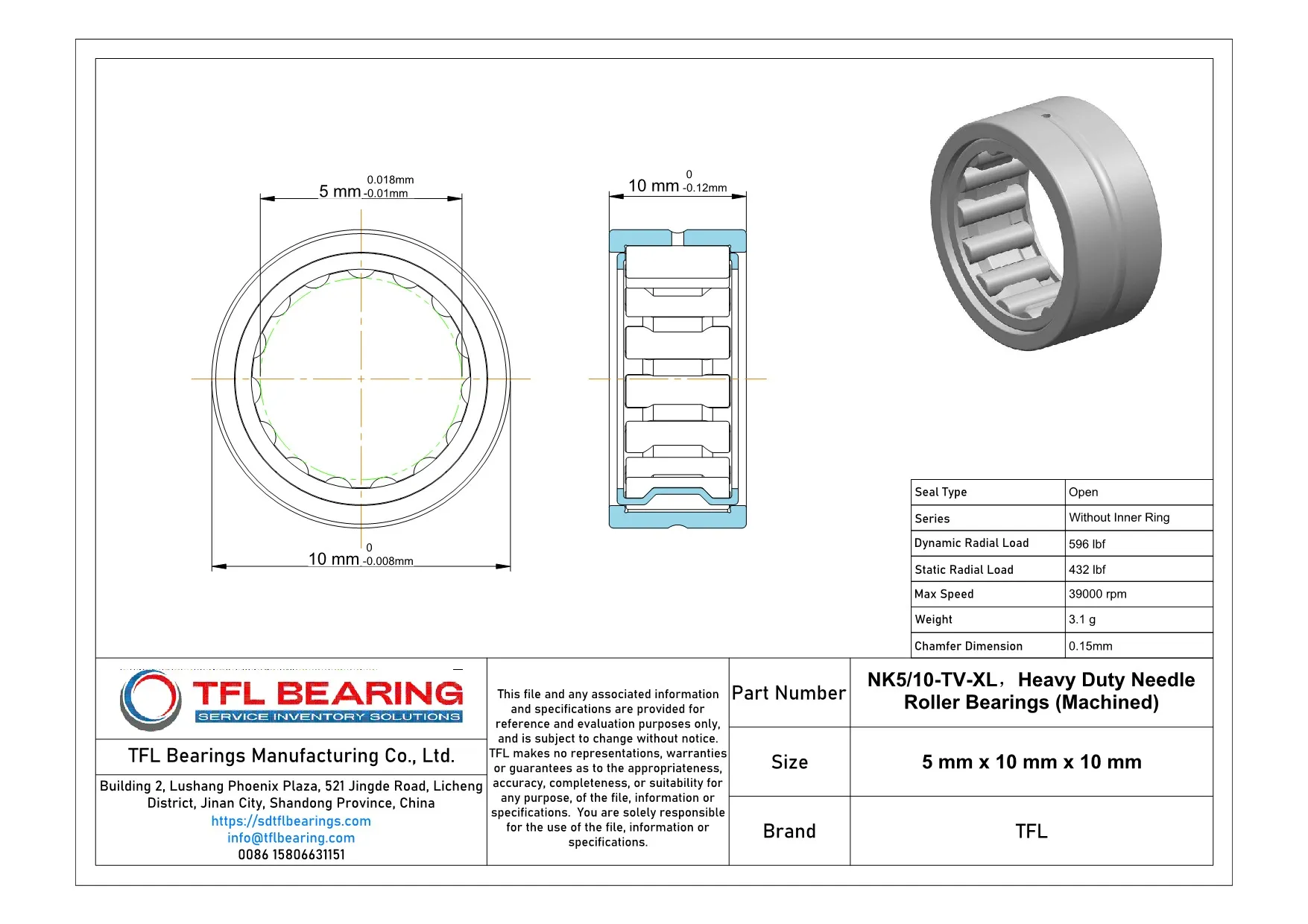

Heavy Duty Needle Roller Bearings (Machined) NK5/10-TV-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of NK5/10-TV-XL Bearing
NK5/10-TV-XL Bearing is built for radial loads, with a dynamic radial load capacity of 596 lbf.
Its steel construction ensures durability, while the PA66 cage maintains roller alignment for smooth operation.
The open design allows for easy lubrication, extending the bearing’s service life.
With a maximum speed of 39,000 rpm, it delivers reliable performance in high-speed applications.
NK5/10-TV-XL Bearing operates efficiently within a temperature range of -20 to 110 °C.
Its press-fit shaft mount design simplifies installation, reducing downtime.

Application

Common Applications of NK5/10-TV-XL Bearing
NK5/10-TV-XL Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like printing presses and textile equipment. Its press-fit design ensures a secure mounting on shafts, ideal for high-speed operations.
In automotive applications, NK5/10-TV-XL Bearing fits well in gearboxes and steering systems, offering reliable performance under heavy loads. The steel construction provides durability, making it suitable for long-term use in vehicles.
For automation systems, NK5/10-TV-XL Bearing works efficiently in robotic arms and conveyor belts, where precision and smooth movement are key. The open design allows for easy lubrication, maintaining performance over time.
In household appliances, NK5/10-TV-XL Bearing can be found in small motors, such as those in power tools or kitchen gadgets. Its lightweight and compact size make it a practical choice for everyday devices.
