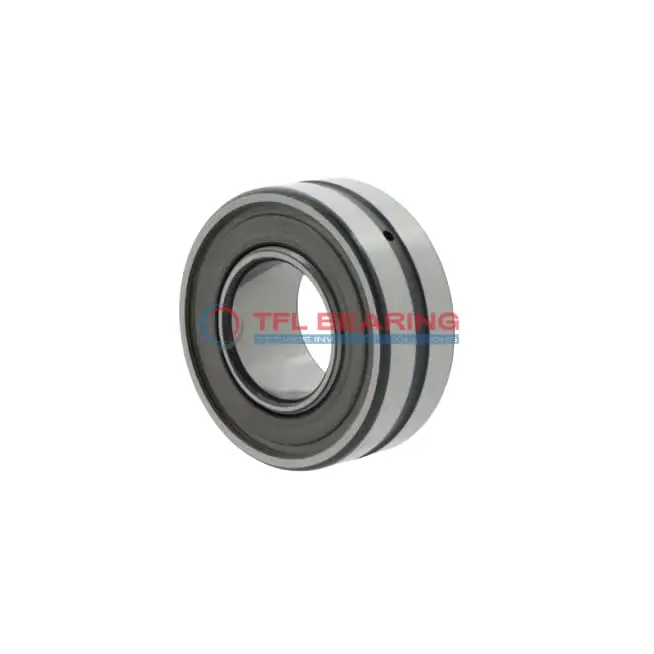

24164-2CS5K30/C3HGEA8 Double Row Spherical Roller Bearing

24164-2CS5K30/C3HGEA8 Double Row Spherical Roller Bearing

The 24164-2CS5K30/C3HGEA8 is a double-row spherical roller bearing with a 320mm bore and 540mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 98826 lbf and operates smoothly at speeds up to 70 RPM.

Its double-seal design keeps contaminants out, while the steel cage ensures durability. The bearing requires lubrication and works in temperatures from -30°C to 200°C.

With a tapered bore (1:30) and C3 radial clearance, it fits securely in heavy-duty setups. Ideal for industrial machinery like crushers or large gearboxes where high radial loads are common.

Weighing 200kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24164-2CS5K30/C3HGEA8
  • Brand TFL
  • Interchangeable SKF
  • Size 320 x 540 x 218 mm
  • Bore Dia 320 mm
  • Bore Dia Tolerance +0.04mm to 0
  • Outer Dia 540 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 218 mm
  • Width Tolerance -0.4mm to 0
  • Shoulder Dia Of Inner Ring 353 mm
  • Shoulder/Recess Dia Of Outer Ring 477 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 98826 lbf
  • Static Radial Load 1596144 lbf
  • Max Speed 70 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 200 kg

Features

Performance Features of 24164-2CS5K30/C3HGEA8 Bearing

24164-2CS5K30/C3HGEA8 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 98826 lbf, making it suitable for heavy-duty applications.

The double seal design of 24164-2CS5K30/C3HGEA8 Bearing protects against contaminants, ensuring reliable operation.
With a temperature range of -30° to 200 °C, it performs well in various environmental conditions.

24164-2CS5K30/C3HGEA8 Bearing features a tapered bore design for secure and easy installation.
Its C3 radial clearance allows for thermal expansion, enhancing performance under load.

The lubrication groove and holes in 24164-2CS5K30/C3HGEA8 Bearing ensure consistent lubrication, reducing wear.
This design extends the bearing’s service life and minimises maintenance requirements.

Application

Industrial Uses of 24164-2CS5K30/C3HGEA8 Bearing
24164-2CS5K30/C3HGEA8 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads.
The spherical roller construction allows for slight misalignment, making it ideal for rugged industrial environments.

Where Is 24164-2CS5K30/C3HGEA8 Bearing Used?
In mining equipment, 24164-2CS5K30/C3HGEA8 Bearing provides reliable performance under extreme conditions, thanks to its chrome steel rollers and double seals.
The tapered bore ensures a secure fit, reducing slippage in high-torque applications.

Built for Heavy-Duty Use: 24164-2CS5K30/C3HGEA8 Bearing
24164-2CS5K30/C3HGEA8 Bearing excels in paper mills and steel plants, where its C3 radial clearance accommodates thermal expansion.
The steel cage enhances durability, while the lubrication groove extends service life in continuous operation.

Automotive vs Aerospace: Applications of 24164-2CS5K30/C3HGEA8 Bearing
In large vehicles like trucks and buses, 24164-2CS5K30/C3HGEA8 Bearing supports drivetrain components, handling combined loads efficiently.
Its high static load capacity also makes it suitable for wind turbines, where reliability is critical.

Perfect Fit for Automation: 24164-2CS5K30/C3HGEA8 Bearing
24164-2CS5K30/C3HGEA8 Bearing is found in robotic assembly lines, where its double seals protect against contaminants.
The metric sizing ensures compatibility with European machinery, simplifying maintenance and replacements.
