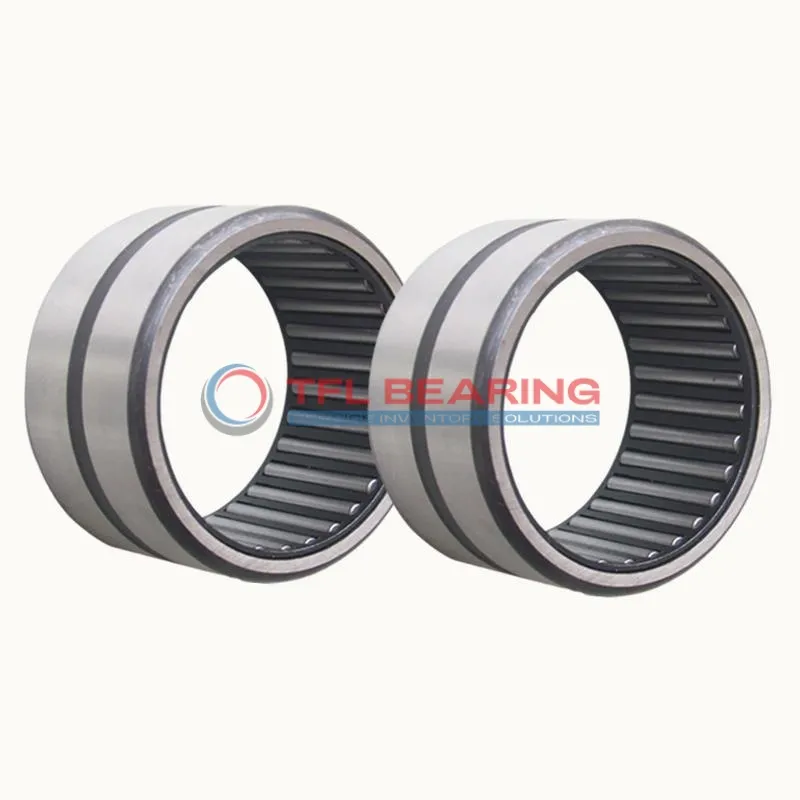

Heavy Duty Needle Roller Bearings (Machined) NCS1616

Heavy Duty Needle Roller Bearings (Machined) NCS1616

The NCS1616 is a heavy-duty needle roller bearing with a 1-inch bore and 1.5-inch outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 7200 lbf and spins smoothly at speeds up to 16700 RPM.
Its open design requires regular lubrication, while the press-fit shaft mount ensures a secure installation. The bearing operates well in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like automotive transmissions or industrial machinery where radial loads are common.
Weighing just 91g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCS1616
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 1"
  • Bore Dia Tolerance 0.023mm to 0.046mm
  • Outer Dia 1.5"
  • Outer Dia Tolerance -0.013mm to 0
  • Width 1"
  • Width Tolerance -0.13mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 7200 lbf
  • Static Radial Load 10012 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 16700 rpm
  • Weight 91 g

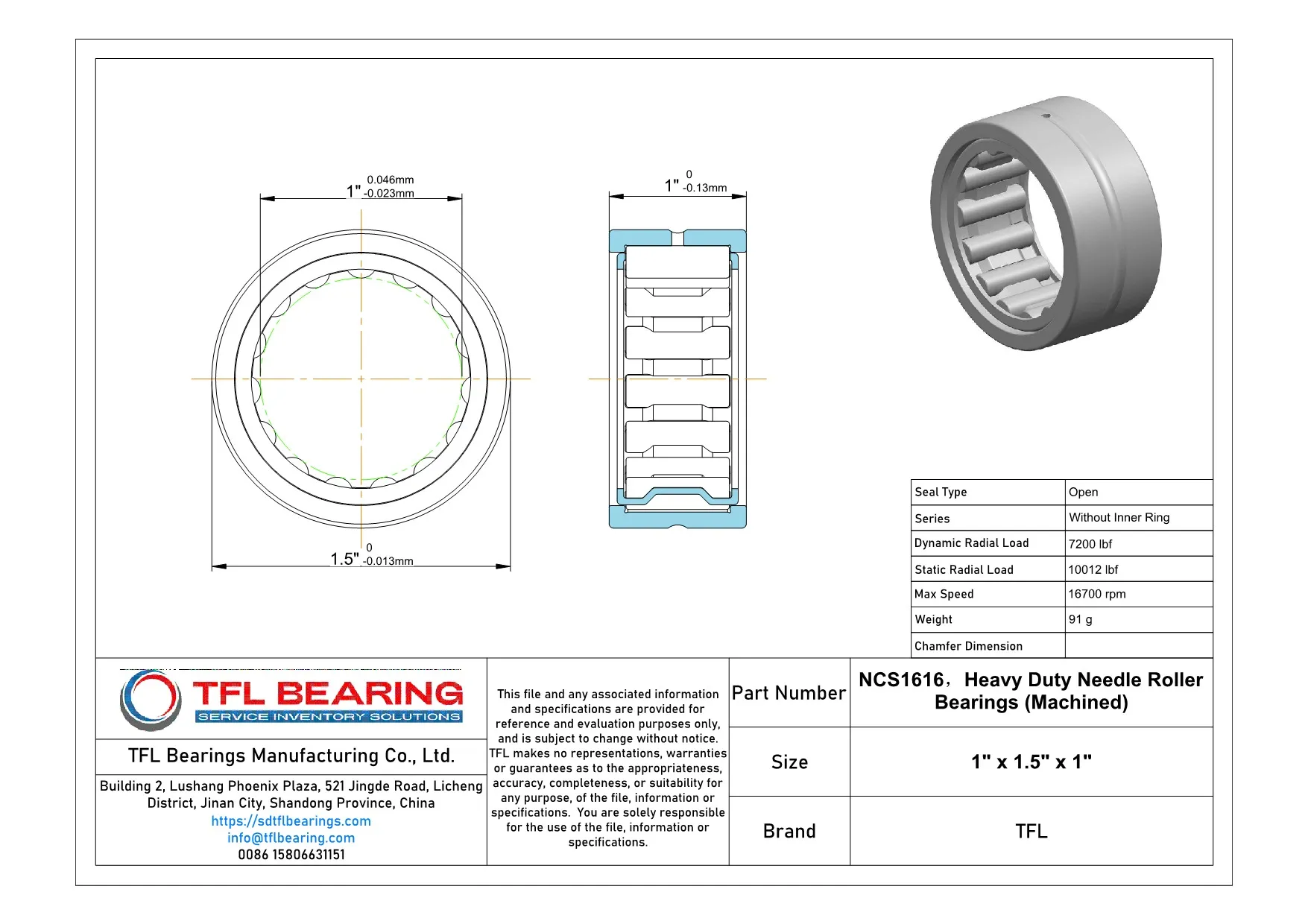

Heavy Duty Needle Roller Bearings (Machined) NCS1616 dimension drawing
Download DWG Download PDF

Features

How Does NCS1616 Bearing Handle Heavy Radial Loads?
NCS1616 Bearing is built with a robust steel construction, designed to handle high radial loads up to 7200 lbf.
Its precision-engineered needle rollers ensure smooth operation even at high speeds of up to 16,700 rpm.
The open design allows for easy lubrication, maintaining performance in demanding conditions.
With a press-fit shaft mount, NCS1616 Bearing offers secure and stable installation.

Application

Key Fields for NCS1616 Bearing
NCS1616 Bearing is commonly used in industrial machinery, especially in compact spaces where high radial load capacity is needed, such as gearboxes and pumps. Its open design and steel construction make it durable for demanding environments.
In automotive applications, NCS1616 Bearing fits well in transmission systems and steering mechanisms, thanks to its press-fit mounting and high-speed capability. The inch sizing ensures compatibility with many North American vehicle designs.
For automation equipment, NCS1616 Bearing’s needle roller design provides smooth motion in robotic arms and conveyor systems. The steel rollers and cage offer reliable performance even under continuous operation.
Where to Use NCS1616 Bearing
NCS1616 Bearing works effectively in heavy-duty machinery like construction equipment, where its high static radial load rating is beneficial. The steel materials ensure long service life even in rough conditions.
In consumer appliances, NCS1616 Bearing can be found in power tools and small motors, where its compact size and efficiency are key advantages. The press-fit design simplifies installation in tight spaces.
