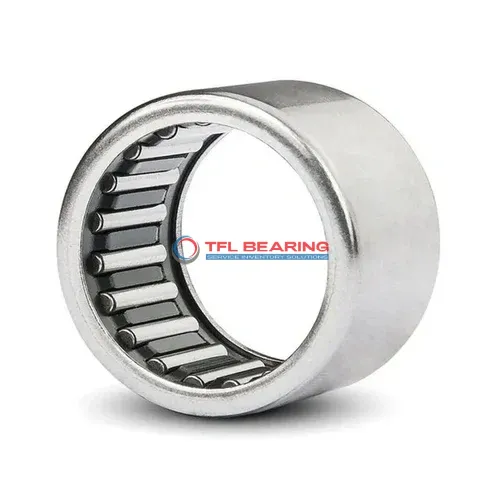

Drawn Cup Needle Roller Bearings BCH208

Drawn Cup Needle Roller Bearings BCH208

The BCH208 is a drawn cup needle roller bearing with a 1.25″ bore and 1.625″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 3687 lbf and can spin at speeds up to 7900 RPM.
Its open design and press-fit mounting make it easy to install, while the steel cage ensures durability. The bearing operates well in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like automotive components or machinery where radial loads are common.
Regular lubrication is recommended to maintain smooth operation. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCH208
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.25"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.625"
  • Outer Dia Tolerance Not Rated
  • Width 0.5"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 3687 lbf
  • Static Radial Load 4721 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 7900 rpm
  • Weight 36 g
Drawn Cup Needle Roller Bearings BCH208 dimension drawing
Download DWG Download PDF

Features

Performance Features of BCH208 Bearing
BCH208 Bearing is built with steel rings and needles, offering strong radial load support.
Its dynamic radial load capacity reaches 3687 lbf, making it suitable for demanding applications.
The press-fit shaft mount ensures secure installation, reducing the risk of slippage.
With a maximum speed of 7900 rpm, it balances performance and durability.
BCH208 Bearing operates efficiently within a temperature range of -20 to 110 °C.
Regular lubrication helps maintain smooth operation and extends its service life.

Application

Common Applications of BCH208 Bearing
BCH208 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor rollers and printing presses. Its steel construction ensures durability in demanding environments.
In automotive systems, BCH208 Bearing fits well in gearboxes and steering mechanisms, providing smooth operation under radial loads. The press-fit design makes installation straightforward for assembly lines.
For automation equipment, BCH208 Bearing’s needle roller design offers precision in robotic arms and linear guides. Its open seal allows for easy lubrication, extending service life in high-speed applications.
Around the home, BCH208 Bearing can be found in power tools and garden equipment, where its reliability keeps devices running smoothly. The inch sizing makes it compatible with many North American products.
