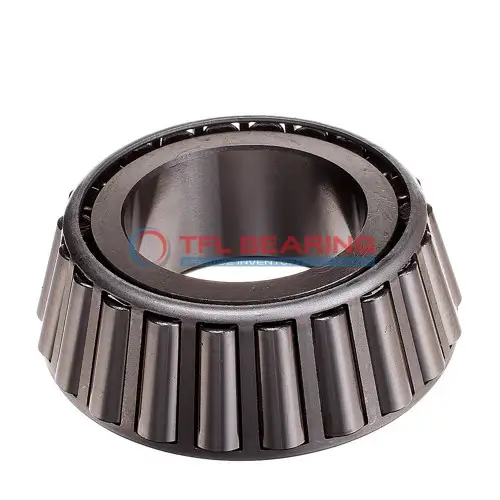

26118-S Single Cones (Imperial)

26118-S Single Cones (Imperial)

The 26118-S is a single-row tapered roller bearing with a 1.1811-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 15700 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The bearing is compatible with Timken models, making it a practical choice for replacements.

With standard radial clearance and ABEC-1 rating, it suits various industrial applications. Ideal for machinery where combined radial and thrust loads are common, such as gearboxes or heavy equipment.

Compliant with RoHS and REACH standards, it’s a safe and robust option for demanding environments. The lightweight yet sturdy construction ensures long service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 26118-S
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 26118-S-26283-B , 26118-S-26283-S
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 26000
  • Bore Dia 1.1811"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.745"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.42"
  • Cone Backface Backing Diameter 1.5"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.16"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 15700 lbf
  • Static Radial Load 13500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4060 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 27300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2500 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 7070 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is 26118-S Bearing Engineered for Reliability?

26118-S Bearing features a tapered roller design, optimised for handling combined loads with ease.
Its chrome steel construction ensures durability, even under dynamic radial loads up to 15,700 lbf.

The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in varied environments.

Standard radial clearance options allow flexibility for different applications.
Its ABEC-1 rating confirms consistent precision for industrial use.

Application

Industrial Uses of 26118-S Bearing
26118-S Bearing is commonly used in heavy machinery like construction equipment and agricultural tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 26118-S Bearing Used?
You’ll often find 26118-S Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for older or non-metric vehicle models.

Built for Heavy-Duty Use: 26118-S Bearing
26118-S Bearing excels in industrial gearboxes, providing smooth operation under high radial and thrust loads. The steel cage adds stability, making it suitable for continuous use.

Automotive vs Industrial: Applications of 26118-S Bearing
In automotive settings, 26118-S Bearing supports axle systems, while in industrial contexts, it’s ideal for conveyor rollers. Its ABEC-1 rating ensures consistent performance across both sectors.

Perfect Fit for Machinery: 26118-S Bearing
26118-S Bearing works well in mining equipment, where its robust design withstands harsh conditions. The standard radial clearance offers flexibility for various load requirements.
