Heavy Duty Needle Roller Bearings (Machined) NAO20X35X17-XL

Heavy Duty Needle Roller Bearings (Machined) NAO20X35X17-XL

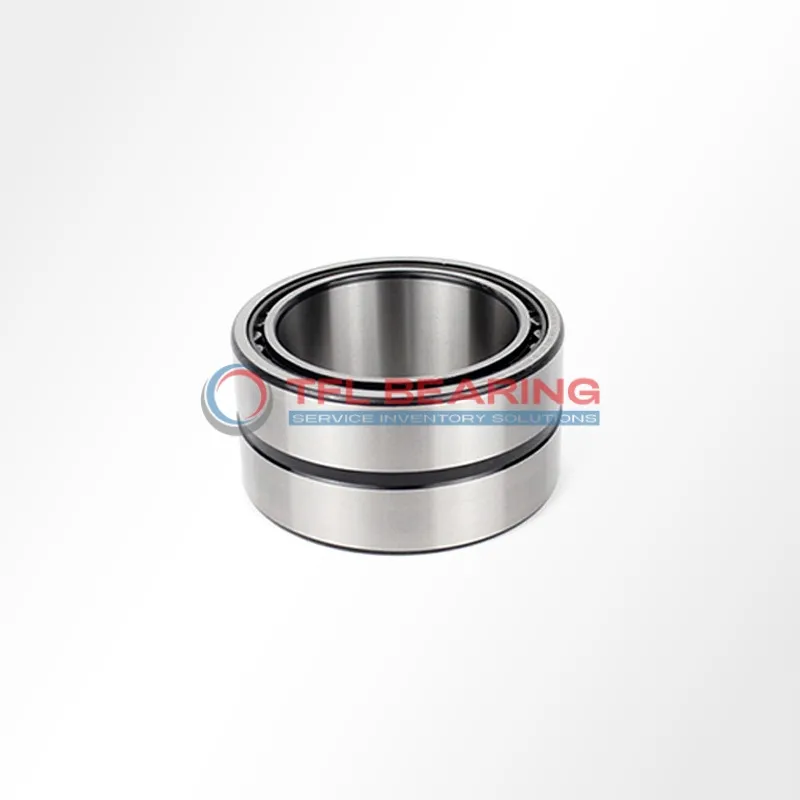

The NAO20X35X17-XL is a heavy-duty needle roller bearing with a 20mm bore and 35mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 3780 lbf and spins smoothly at speeds up to 18100 RPM.
Its single-row design with an inner ring ensures stability, while the open seal allows for easy lubrication. The bearing operates efficiently in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or automotive components where high radial loads are common.
Weighing just 76g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NAO20X35X17-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring Yes
  • Series With Inner Ring
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 3780 lbf
  • Static Radial Load 5850 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 18100 rpm
  • Weight 76 g

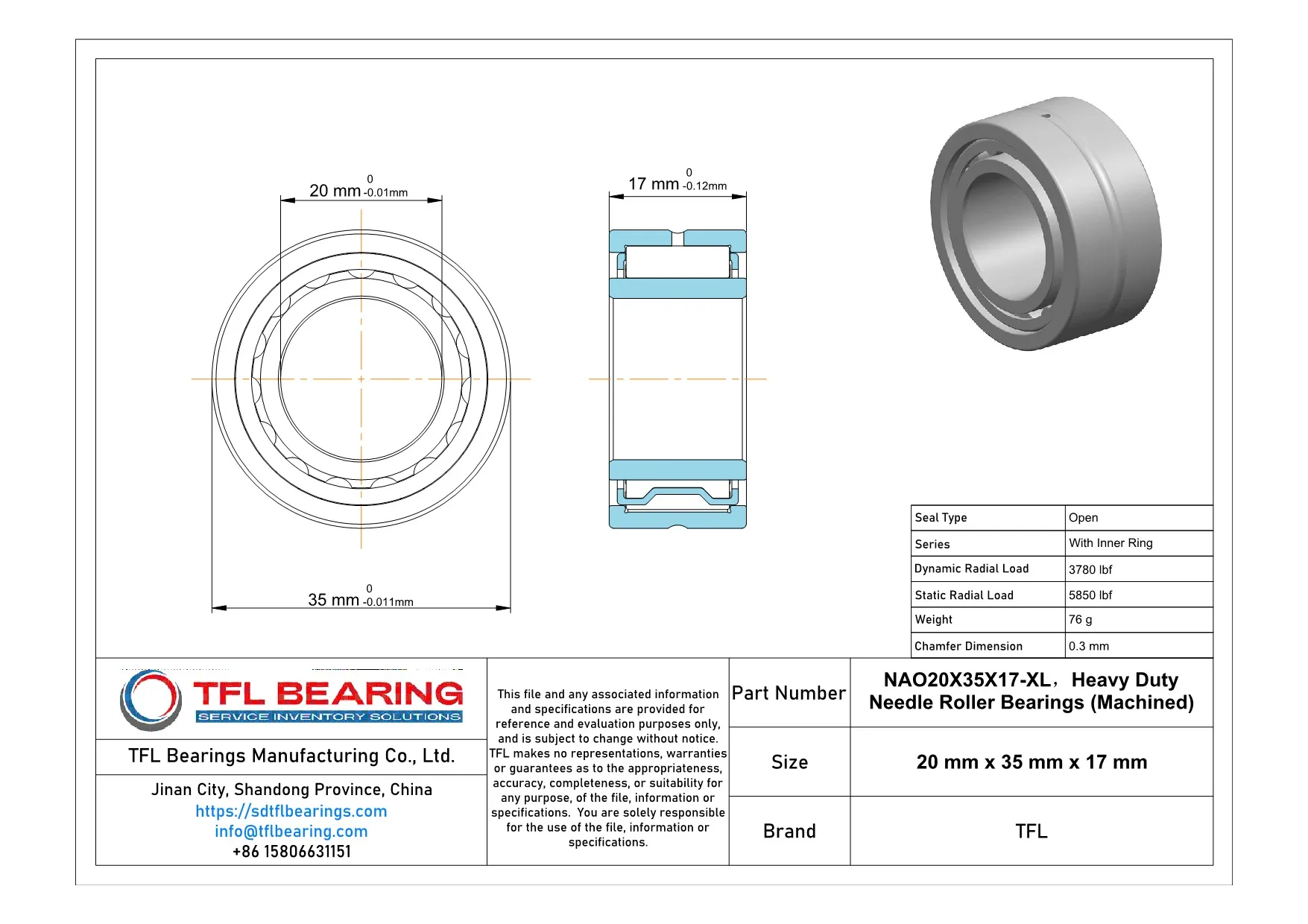

Heavy Duty Needle Roller Bearings (Machined) NAO20X35X17-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of NAO20X35X17-XL Bearing
NAO20X35X17-XL Bearing is built with a robust steel construction, handling dynamic radial loads up to 3780 lbf.
Its precision-machined needle rollers ensure smooth operation even at high speeds of 18,100 rpm.
The open design allows for easy lubrication, maintaining performance in demanding conditions.
With a press-fit shaft mount, it offers secure installation for heavy-duty applications.

Application

Industrial Uses of NAO20X35X17-XL Bearing
NAO20X35X17-XL Bearing is commonly used in heavy machinery like construction equipment and agricultural tools, where its robust design handles high radial loads effortlessly. The steel construction ensures durability even in demanding environments.
In automotive applications, NAO20X35X17-XL Bearing fits well in gearboxes and transmission systems, providing smooth operation under high-speed conditions. Its press-fit design makes installation straightforward, reducing downtime during maintenance.
For automation systems, NAO20X35X17-XL Bearing is a reliable choice for robotic arms and conveyor belts, thanks to its precise needle roller design. The open seal type allows for easy lubrication, ensuring long-term performance.
In household appliances like washing machines, NAO20X35X17-XL Bearing offers quiet and efficient operation. Its compact size and high load capacity make it ideal for space-constrained designs.
Medical devices such as diagnostic equipment benefit from NAO20X35X17-XL Bearing’s consistent performance. The steel rollers provide reliable support, ensuring accuracy in critical applications.
