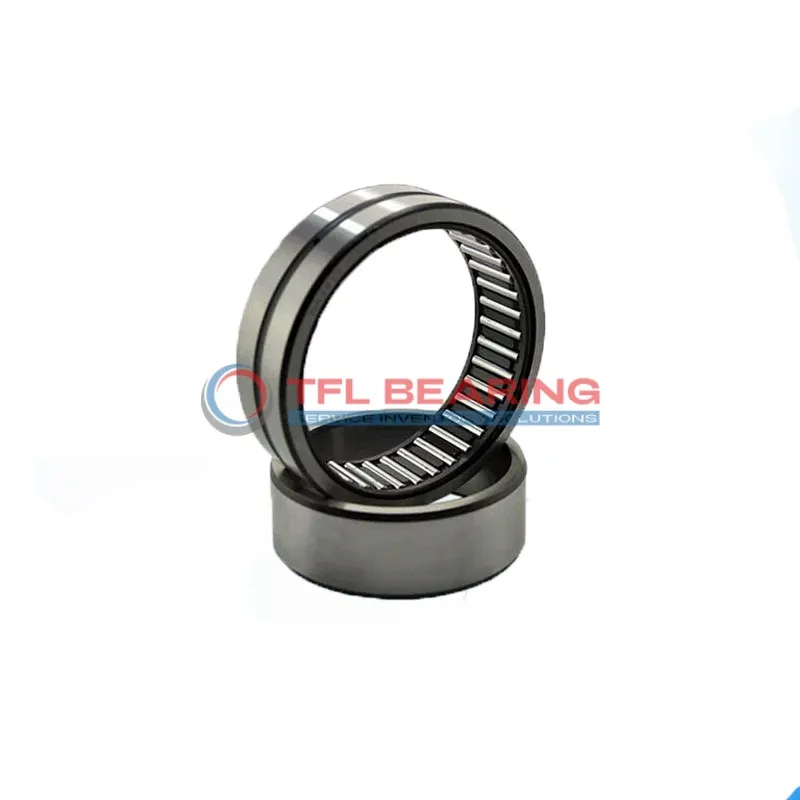

Heavy Duty Needle Roller Bearings (Machined) NA6913-ZW-XL

Heavy Duty Needle Roller Bearings (Machined) NA6913-ZW-XL

The NA6913-ZW-XL is a heavy-duty needle roller bearing with a 65mm bore and 90mm outer diameter, designed for radial loads. It’s built from sturdy steel and can handle dynamic loads up to 24300 lbf, making it a robust choice for demanding applications.
This double-row bearing features an open design, requiring regular lubrication for optimal performance. With a maximum speed of 6300 RPM, it operates smoothly in temperatures ranging from -20°C to 110°C.
Its press-fit shaft mount ensures a secure installation, while the 1mm chamfer dimension allows for easier fitting. Weighing 833g, it’s a solid yet manageable component for industrial use.
Ideal for heavy machinery or automotive systems, this bearing is interchangeable with INA models, offering flexibility for replacements. Compliant with RoHS standards, it’s a reliable and safe option for various radial load scenarios.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NA6913-ZW-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Inner Ring Yes
  • Series With Inner Ring
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 45 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 24300 lbf
  • Static Radial Load 44550 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 6300 rpm
  • Weight 833 g
Heavy Duty Needle Roller Bearings (Machined) NA6913-ZW-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of NA6913-ZW-XL Bearing
NA6913-ZW-XL Bearing is built with steel rings and rollers, offering strong resistance to heavy radial loads.
Its dynamic radial load capacity reaches 24,300 lbf, making it suitable for demanding industrial applications.
The double-row needle roller design ensures stability and even load distribution.
With a maximum speed of 6,300 rpm, it balances performance and durability in high-speed conditions.
NA6913-ZW-XL Bearing operates efficiently within a temperature range of -20 to 110°C.
Its press-fit shaft mount type simplifies installation, reducing downtime and maintenance efforts.

Application

Industrial Uses of NA6913-ZW-XL Bearing
NA6913-ZW-XL Bearing is commonly used in heavy machinery like construction equipment and agricultural tools, where its double-row needle rollers handle high radial loads efficiently. The steel construction ensures durability even in demanding environments.
In automotive applications, NA6913-ZW-XL Bearing fits well in transmission systems and wheel hubs, providing reliable performance under constant stress. Its press-fit design simplifies installation, making it a favourite among mechanics.
For automation systems, NA6913-ZW-XL Bearing supports robotic arms and conveyor belts, where precision and load capacity are key. The open seal type allows for easy lubrication, extending its service life in high-speed operations.
Medical devices like MRI machines benefit from NA6913-ZW-XL Bearing’s smooth operation and low maintenance needs. Its steel rollers ensure consistent performance, crucial for sensitive diagnostic equipment.
In household appliances such as washing machines, NA6913-ZW-XL Bearing reduces vibration and noise, enhancing user comfort. The metric dimensions make it compatible with a variety of European and Asian models.
