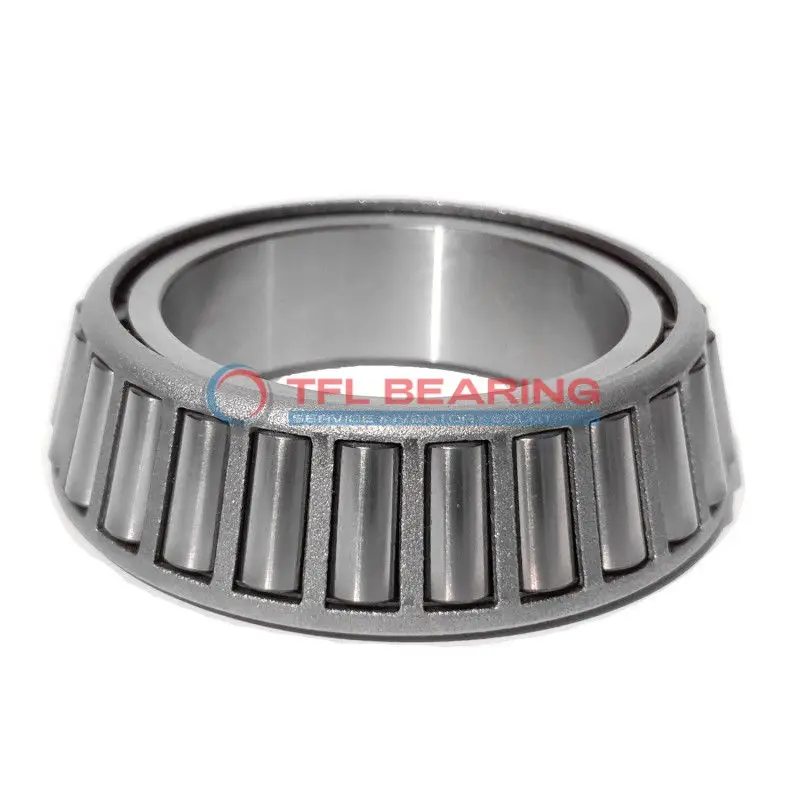

3476X Single Cones (Imperial)

3476X Single Cones (Imperial)

The 3476X single cone is a tapered roller bearing with a 1.25-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 21800 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design and steel cage ensure easy maintenance and long service life. The cone features standard radial clearance, with options for C3, C4, or C5 clearances if needed.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for industrial machinery or automotive applications where combined loads are common.

Compliant with RoHS and REACH standards, it offers reliable performance in demanding conditions. The ABEC-1 rating ensures consistent quality for general-purpose use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3476X
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 3400
  • Bore Dia 1.25"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.1721"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.61"
  • Cone Backface Backing Diameter 1.71"
  • Cage Cone Frontface Clearance 0.04"
  • Cage Cone Backface Clearance 0.06"
  • Effective Center Location -0.34"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 21800 lbf
  • Static Radial Load 26800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5650 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 37900 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3530 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 9830 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 3476X Bearing

3476X Bearing is crafted from chrome steel, offering strong resistance to combined loads.

Its dynamic radial load capacity reaches 21800 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, enhancing durability and reducing wear.

With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Application

Industrial Uses of 3476X Bearing
3476X Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 3476X Bearing supports wheel hubs and drivetrains, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

For industrial conveyor systems, 3476X Bearing’s open design allows for easy lubrication, extending service life in high-load scenarios. The steel cage adds stability during continuous operation.

Where Is 3476X Bearing Used?
3476X Bearing finds its place in agricultural machinery, particularly in gearboxes and PTO shafts. Its robust design withstands the rough conditions of fieldwork.

The bearing also works well in mining equipment, where its tapered rollers manage heavy radial and thrust loads. The standard radial clearance ensures smooth operation even under stress.

Built for Heavy-Duty Use: 3476X Bearing
3476X Bearing is ideal for forestry equipment like log splitters, thanks to its high dynamic load capacity. The steel cage prevents roller skewing during intense use.

In material handling systems, 3476X Bearing’s effective center location helps maintain alignment. This reduces wear and tear in continuous operation environments.

Automotive vs Aerospace: Applications of 3476X Bearing
In automotive settings, 3476X Bearing handles wheel loads reliably, while its aerospace use is limited by ABEC-1 precision. The temperature range suits most ground vehicle needs.

For industrial pumps, 3476X Bearing’s tapered rollers manage both radial and axial forces efficiently. The chrome steel rings resist corrosion in wet environments.
