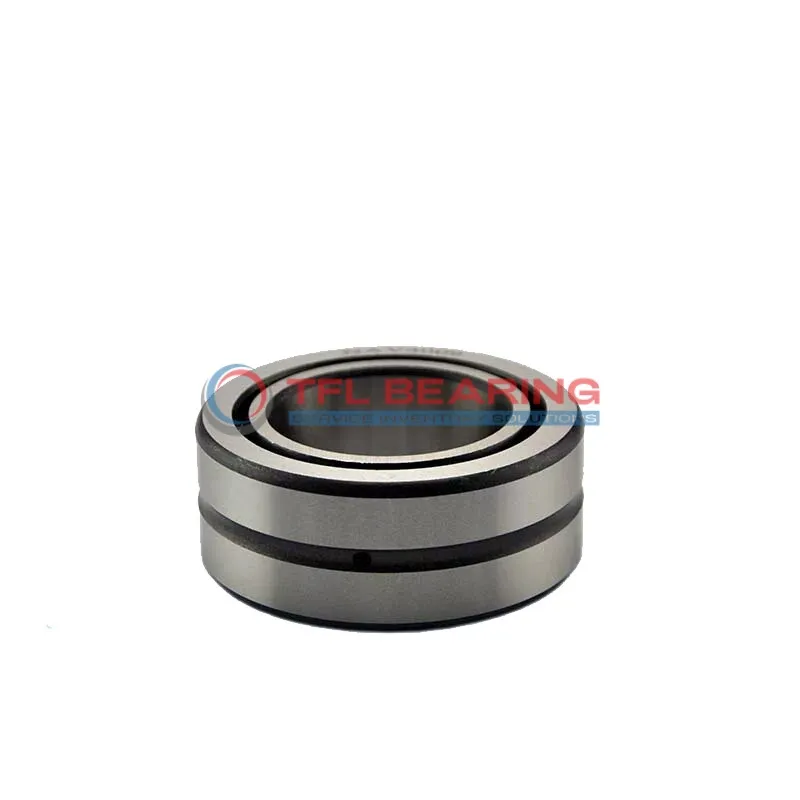

Heavy Duty Needle Roller Bearings (Machined) NA4824-XL

Heavy Duty Needle Roller Bearings (Machined) NA4824-XL

The NA4824-XL is a heavy-duty needle roller bearing with a 120mm bore and 150mm outer diameter, crafted from sturdy steel for long-lasting performance. It handles radial loads up to 25200 lbf and operates smoothly at speeds up to 3600 RPM.
Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing is designed for press-fit mounting, making installation straightforward.
This model is interchangeable with INA bearings, offering a reliable alternative for replacements. Ideal for industrial machinery or automotive applications where high radial loads are common.
Weighing 1170g, it’s robust yet manageable for its size. Compliant with RoHS standards, it’s suitable for use in temperatures ranging from -20°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NA4824-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring Yes
  • Series With Inner Ring
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 30 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 25200 lbf
  • Static Radial Load 53775 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 3600 rpm
  • Weight 1170 g

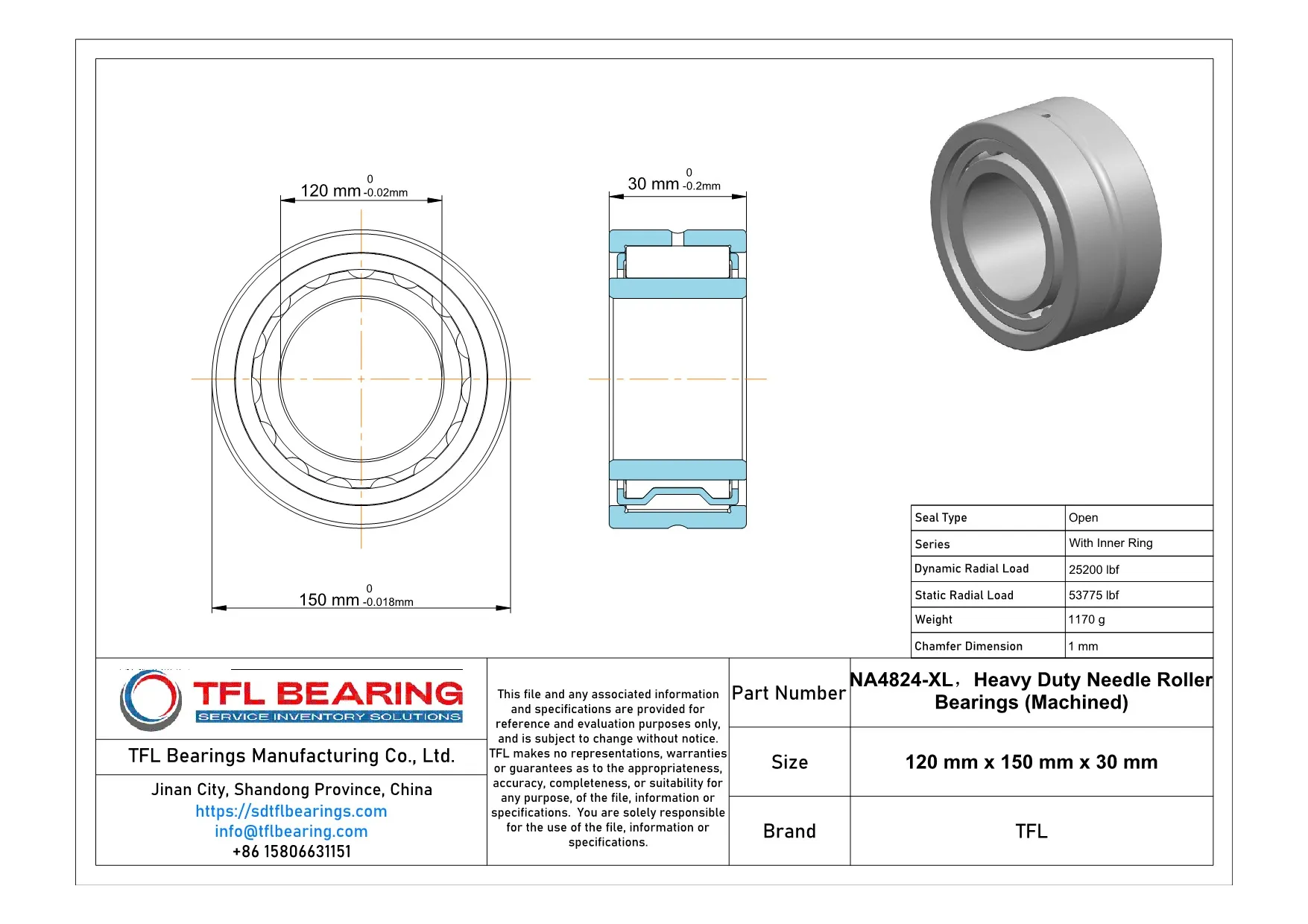

Heavy Duty Needle Roller Bearings (Machined) NA4824-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of NA4824-XL Bearing
NA4824-XL Bearing is built for heavy-duty radial loads, with a dynamic radial load capacity of 25200 lbf.
Its steel construction ensures durability, making it suitable for demanding industrial applications.
The precision-machined needle rollers reduce friction, enhancing efficiency and smooth operation.
With a maximum speed of 3600 rpm, it balances performance and reliability in high-speed conditions.
NA4824-XL Bearing operates within a temperature range of -20 to 110°C, adapting to various environments.
Its press-fit shaft mount design simplifies installation, saving time and effort.

Application

Industrial Uses of NA4824-XL Bearing
NA4824-XL Bearing is commonly used in heavy machinery like construction equipment and agricultural tools, where its high radial load capacity handles demanding conditions. The steel construction ensures durability even in rugged environments.
Where Is NA4824-XL Bearing Used?
In automotive applications, NA4824-XL Bearing fits well in gearboxes and drivetrains, providing reliable performance under constant radial loads. Its press-fit design simplifies installation in tight spaces.
Built for Heavy-Duty Use: NA4824-XL Bearing
This bearing excels in industrial conveyor systems, where its needle roller design reduces friction and extends service life. The open seal type allows for easy lubrication maintenance.
Automotive vs Industrial: Applications of NA4824-XL Bearing
NA4824-XL Bearing is versatile, suitable for both vehicle transmissions and factory machinery. Its metric sizing ensures compatibility with a wide range of equipment across different sectors.
Perfect Fit for Automation: NA4824-XL Bearing
In robotic arms and automated assembly lines, NA4824-XL Bearing offers smooth motion and precise load handling. The steel cage enhances stability during high-speed operations.
