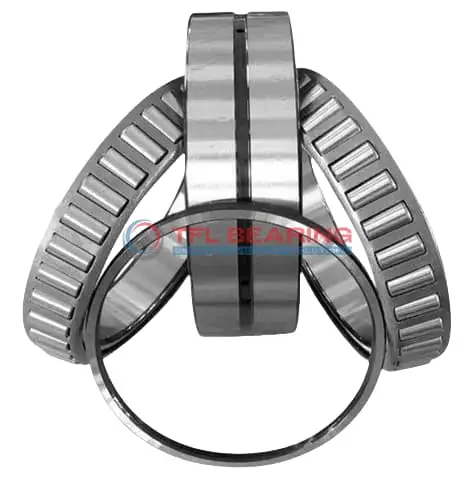

590-592D TDO (Two-Row Double-Outer Race) (Imperial)

590-592D TDO (Two-Row Double-Outer Race) (Imperial)

The 590-592D is a double-row tapered roller bearing with a 3.149″ bore and 6″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 84,600 lbf and is designed for long-lasting performance in demanding conditions.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation even under heavy loads. The bearing works well in temperatures from -30°C to 110°C, making it versatile for various environments.

This model features a standard radial clearance and is ABEC-1 rated for reliable precision. Ideal for industrial machinery or heavy equipment where combined radial and thrust loads are common.

Weighing 13.98 lb, it’s a robust choice for applications requiring durability and strength. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 590-592D
  • Brand TFL
  • Size 3.149" x 6" x 1.43"
  • Bore Dia 3.149"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.43"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.25"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.03"
  • Cone Backface Backing Diameter 3.86"
  • Cup Frontface Backing Diameter 5.71"
  • Cage Cone Backface Clearance 0.15"
  • Dynamic Radial Load 84600 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 590
  • Cup Part Number 592D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 595
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 12600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 9530 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 21900 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 13.98 lb

Features

Performance Features of 590-592D Bearing

590-592D Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 84,600 lbf, ensuring reliable performance in heavy-duty applications.

The double-row tapered roller design of 590-592D Bearing provides stability and even load distribution.
This construction enhances durability, making it suitable for demanding industrial environments.

590-592D Bearing operates efficiently within a temperature range of -30° to 110°C.
Its standard radial clearance options allow for flexibility in various operational conditions.

With a weight of 13.98 lb, 590-592D Bearing balances strength and practicality.
The steel cage maintains roller alignment, reducing wear and extending service life.

Application

Industrial Uses of 590-592D Bearing
590-592D Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its double-row design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in demanding environments.

What Makes 590-592D Bearing a Preferred Choice?
In automotive applications, 590-592D Bearing supports wheel hubs and differential systems, providing reliable performance under high stress. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 590-592D Bearing
For industrial conveyor systems, 590-592D Bearing’s tapered roller design offers smooth operation and long service life. The open seal type allows for easy lubrication, reducing maintenance downtime.

Automotive vs Aerospace: Applications of 590-592D Bearing
In automotive settings, 590-592D Bearing excels in axle assemblies, while in aerospace, it’s suited for auxiliary gearboxes. Its high dynamic load capacity ensures performance in both fields.

Where Is 590-592D Bearing Used?
You’ll find 590-592D Bearing in agricultural machinery, like tractors and harvesters, where its robust design handles uneven loads. The steel cage adds extra strength for tough conditions.
