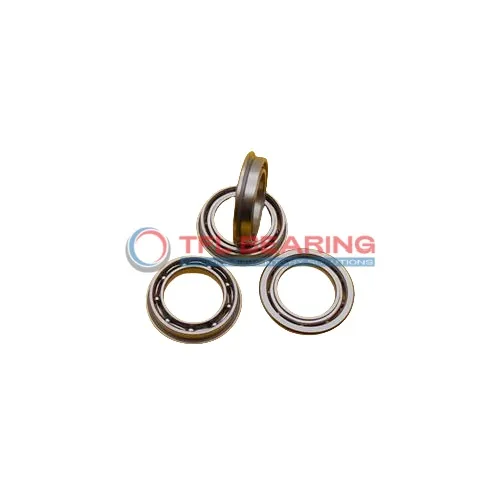

Flanged Deep Groove Ball Bearings W 625 R

Flanged Deep Groove Ball Bearings W 625 R

The W 625 R is a compact flanged deep groove ball bearing, measuring 5mm by 16mm with a flange extending to 18mm. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

It handles radial loads up to 321 lbf and can spin at speeds up to 63,000 RPM, making it suitable for high-speed applications. The open design allows for easy lubrication and maintenance.

The flange provides extra stability, helping the bearing stay securely in place during operation. Its lightweight construction, at just 0.0049kg, makes it easy to handle and install.

Ideal for small machinery or precision instruments where space is limited. Compliant with RoHS and REACH standards, ensuring safe use in various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 625 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 16 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 18 mm
  • Flange Thickness 1 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 321 lbf
  • Static Radial Load 142 lbf
  • Max Speed 63000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0049 kg
  • Price（$） 1.7
Flanged Deep Groove Ball Bearings W 625 R dimension drawing
Download DWG Download PDF

Features

Why Choose W 625 R Bearing for Precision Tasks?

W 625 R Bearing features a stainless steel construction, ensuring resistance to corrosion and wear.
Its compact size of 5 mm×18 mm×5 mm makes it ideal for applications where space is limited.

The open design allows for easy lubrication, maintaining smooth operation over time.
With a maximum speed of 63,000 rpm, it delivers reliable performance in high-speed applications.

The flange outer dia of 18 mm provides secure mounting, reducing the risk of misalignment.
W 625 R Bearing’s dynamic radial load capacity of 321 lbf ensures durability under stress.

Application

Industrial Uses of W 625 R Bearing
W 625 R Bearing is commonly used in small industrial motors and pumps, where its compact size and stainless steel construction handle radial loads efficiently. The open design simplifies lubrication, making it suitable for environments where regular maintenance is needed.

Where Is W 625 R Bearing Used?
In automotive applications, W 625 R Bearing fits well in small electric motors and sensors, thanks to its precise dimensions and durability. The flange design ensures secure mounting, even in tight spaces.

Perfect Fit for Automation: W 625 R Bearing
For robotic arms and 3D printers, W 625 R Bearing offers smooth rotation and low friction. Its stainless steel materials resist corrosion, making it ideal for cleanroom or high-humidity settings.

Light-Duty vs Heavy-Duty: Best Uses for W 625 R Bearing
In consumer electronics like cooling fans, W 625 R Bearing provides quiet operation and long life. For heavier loads, its robust design still performs reliably in conveyor systems or small machinery.

Medical vs Industrial: Where W 625 R Bearing Excels
W 625 R Bearing works well in medical devices like dental tools, where precision and hygiene matter. In industrial settings, it’s a go-to for small gearboxes and measuring instruments.
