Constant Section (CS) Bearings JU110XP0

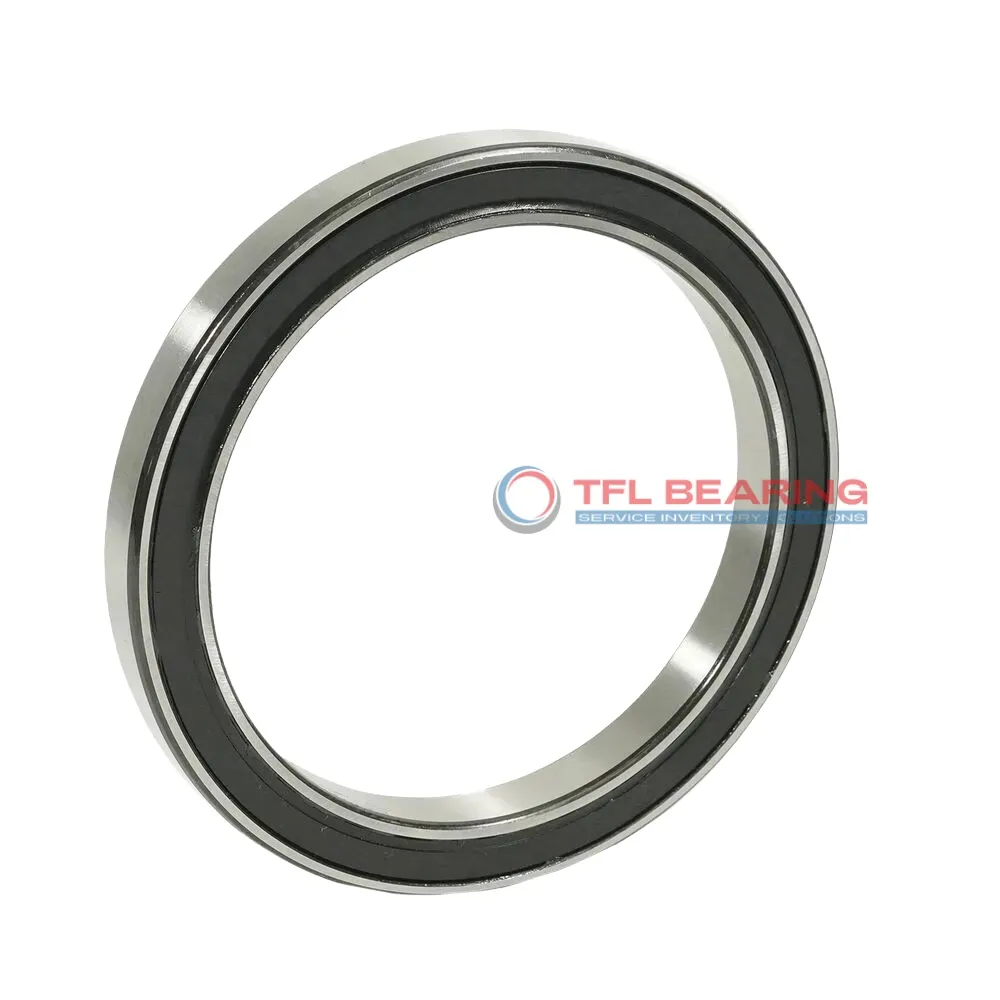

Constant Section (CS) Bearings JU110XP0

The JU110XP0 is a sealed, thin-section ball bearing measuring 11″ by 11.75″ with a slim 0.5″ width, made from durable chrome steel. It handles radial loads up to 2496 lbf and thrust loads up to 4180 lbf, suitable for moderate-speed applications.

Its brass cage and sealed design ensure smooth operation and protect against contaminants, making maintenance hassle-free. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, offering a reliable replacement option. Ideal for applications like robotics or precision machinery where space is limited but performance is key.

Weighing 1.43 lbs, it’s lightweight yet robust, complying with RoHS standards for safe use. The ABEC-1 tolerance ensures reliable performance without over-engineering.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JU110XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 11"
  • Bore Dia Tolerance -0.0014"– 0"
  • Outer Dia 11.75"
  • Outer Dia Tolerance -0.0014"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JU 1/2" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 11.150"
  • Internal Diameter On Outer Ring (Small Side Face) 11.535"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2496 lbf
  • Static Radial Load 5470 lbf
  • Static Thrust Load 13680 lbf
  • Static Moment 31110 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 10 lbf
  • Dynamic Thrust Load 4180 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.43 lbs
  • price（$） 300.8
Constant Section (CS) Bearings JU110XP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of JU110XP0 Bearing

JU110XP0 Bearing is designed with chrome steel rings and balls, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 2496 lbf, ensuring reliable performance in various applications.

The brass cage maintains ball alignment, reducing friction and extending the bearing’s service life.
With a width of just 0.5″, JU110XP0 Bearing is ideal for space-constrained installations.

Sealed construction protects against contaminants, making it suitable for harsh environments.
The temperature range of -30°C to 110°C ensures consistent performance under varying conditions.

Application

Industrial Uses of JU110XP0 Bearing
JU110XP0 Bearing is commonly used in robotics and automation systems, where its thin-section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.

Where Is JU110XP0 Bearing Used?
In aerospace applications, JU110XP0 Bearing provides reliable performance in control mechanisms and actuator systems. Its brass cage and chrome steel components offer a good balance of strength and corrosion resistance.

Built for Heavy-Duty Use: JU110XP0 Bearing
JU110XP0 Bearing handles high static loads in industrial turntables and indexing tables. The four-point contact design distributes forces evenly, making it suitable for repetitive motion applications.

Automotive vs Aerospace: Applications of JU110XP0 Bearing
In automotive steering systems, JU110XP0 Bearing ensures smooth rotation under varying loads. For aerospace, its lightweight construction and precision tolerances meet stringent performance requirements.

Key Fields for JU110XP0 Bearing
JU110XP0 Bearing is ideal for medical imaging devices where quiet operation and precision are essential. The lubricated sealed design reduces maintenance needs in sensitive environments.
