Flanged Deep Groove Ball Bearings W 61906 R-2Z

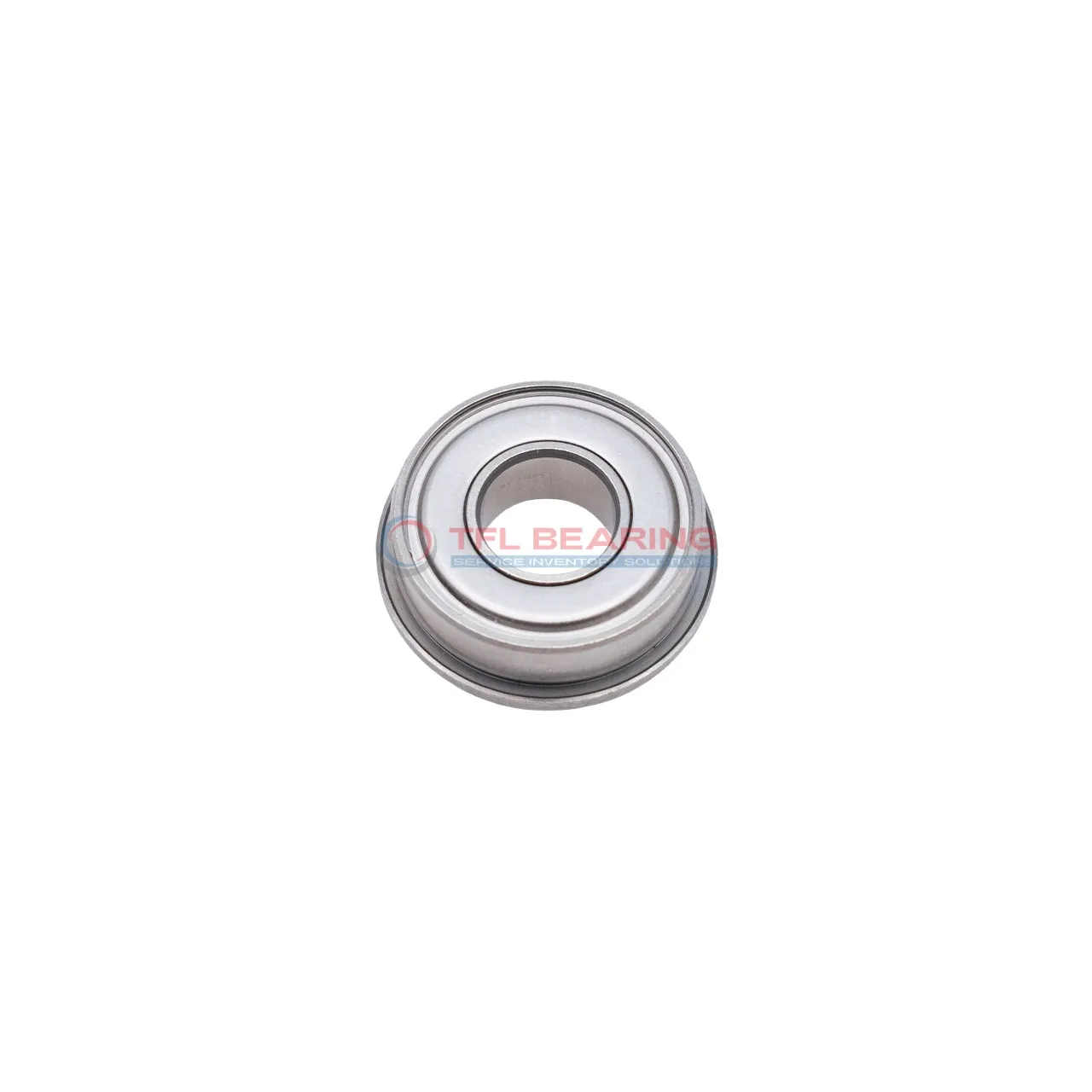

Flanged Deep Groove Ball Bearings W 61906 R-2Z

The W 61906 R-2Z is a flanged deep groove ball bearing with a 30mm bore and 47mm outer diameter, made entirely from stainless steel for durability. It handles radial loads up to 1403 lbf and can spin at speeds up to 15000 RPM.

Its shielded design keeps dirt out while the stainless steel cage ensures smooth operation. The flange adds stability, making it easier to mount in tight spaces.

This bearing works well in temperatures from -30°C to 120°C and comes pre-lubricated with grease for low maintenance. Ideal for small motors or appliances where space is limited.

Weighing just 0.053kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61906 R-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 9 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 50 mm
  • Flange Thickness 2 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1403 lbf
  • Static Radial Load 1124 lbf
  • Max Speed 15000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.053 kg
  • Price（$） 2.4
Flanged Deep Groove Ball Bearings W 61906 R-2Z dimension drawing
Download DWG Download PDF

Features

How Is W 61906 R-2Z Bearing Engineered for Reliability?

W 61906 R-2Z Bearing features stainless steel rings and balls, offering excellent resistance to wear and corrosion.
Its shielded design helps to keep contaminants out, ensuring smooth operation in various conditions.
With a dynamic radial load capacity of 1403 lbf, it handles demanding radial loads with ease.
The flange outer dia of 50 mm provides secure mounting, enhancing stability during operation.

Application

Industrial Uses of W 61906 R-2Z Bearing
W 61906 R-2Z Bearing is commonly used in conveyor systems, where its flanged design helps maintain alignment under radial loads. The stainless steel construction ensures durability in dusty or humid environments.

In automotive applications, W 61906 R-2Z Bearing fits well in electric motors and small gearboxes, providing smooth rotation. Its shielded seals keep contaminants out, extending service life.

For robotics, W 61906 R-2Z Bearing offers precise movement in joint assemblies, thanks to its compact size and reliable performance. The grease lubrication reduces friction during high-speed operations.

In household appliances like washing machines, W 61906 R-2Z Bearing handles moderate loads while operating quietly. The metric dimensions make it easy to replace in European and Asian models.
