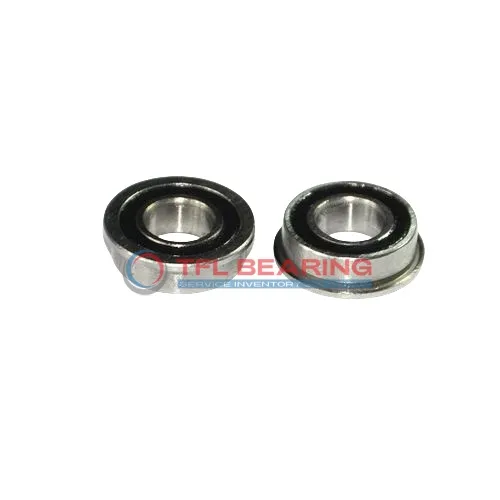

Flanged Deep Groove Ball Bearings W 619/8 R-2RS1

Flanged Deep Groove Ball Bearings W 619/8 R-2RS1

The W 619/8 R-2RS1 is a compact flanged deep groove ball bearing, measuring 8mm by 19mm with a 6mm width. Its stainless steel construction ensures durability and resistance to corrosion.

This sealed bearing handles radial loads up to 281 lbf and can spin at speeds up to 24,000 RPM. The built-in flange provides extra stability, making it easier to mount securely.

With a grease lubrication system, maintenance is minimal. It performs well in temperatures ranging from -30°C to 120°C.

Ideal for small machinery or applications where space is limited, such as electric motors or medical devices. Compliant with RoHS and REACH standards, it’s a reliable choice for various industries.

Weighing just 0.0079kg, it’s lightweight yet sturdy for its size. The sealed design keeps contaminants out, extending its lifespan.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 619/8 R-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 22 mm
  • Flange Thickness 1.5 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 281 lbf
  • Static Radial Load 102 lbf
  • Max Speed 24000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0079 kg
  • Price（$） 2.1
Flanged Deep Groove Ball Bearings W 619/8 R-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 619/8 R-2RS1 Bearing for Precision Tasks?

W 619/8 R-2RS1 Bearing is crafted with stainless steel rings and balls, ensuring durability and smooth operation.
Its sealed design keeps out contaminants, making it ideal for precision applications.

The flange outer dia of 22 mm provides secure mounting, reducing misalignment risks.
With a max speed of 24,000 rpm, it offers reliable performance in high-speed scenarios.

W 619/8 R-2RS1 Bearing’s grease lubrication ensures consistent performance over time.
Its compact size of 8 mm×22 mm×6 mm makes it suitable for space-constrained applications.

Application

Common Applications of W 619/8 R-2RS1 Bearing
W 619/8 R-2RS1 Bearing is widely used in small electric motors, thanks to its compact size and sealed design. The stainless steel construction ensures durability in humid or corrosive environments.

In automation systems, W 619/8 R-2RS1 Bearing fits neatly into robotic joints and conveyor guides. Its flange provides extra stability, preventing misalignment during high-speed operations.

For household appliances like blenders or printers, W 619/8 R-2RS1 Bearing offers quiet and smooth rotation. The grease lubrication reduces maintenance needs, making it ideal for long-term use.

Medical devices benefit from W 619/8 R-2RS1 Bearing’s precision and resistance to wear. It’s often found in dental tools or lab equipment where reliability is key.
