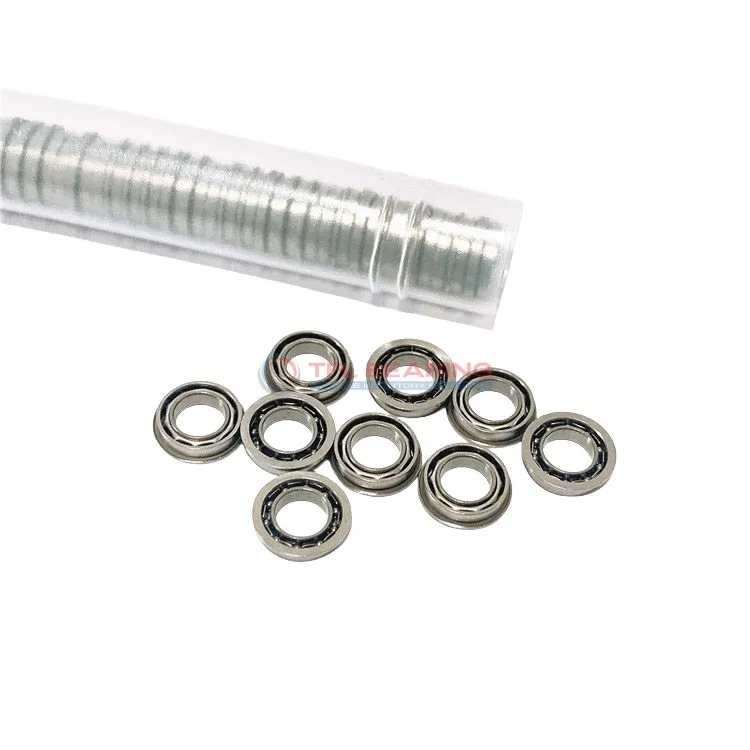

Flanged Deep Groove Ball Bearings W 608 R

Flanged Deep Groove Ball Bearings W 608 R

The W 608 R is a compact flanged deep groove ball bearing, measuring 8mm by 22mm with a 7mm width and a 25mm flange. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

It handles radial loads up to 447 lbf and can spin at speeds up to 48,000 RPM, making it suitable for high-speed applications. The open design allows for easy lubrication and maintenance.

The flange provides extra stability, helping the bearing stay securely in place during operation. This makes it ideal for small motors or machinery where space is limited.

Weighing just 12 grams, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a reliable choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 608 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 25 mm
  • Flange Thickness 1.5 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 447 lbf
  • Static Radial Load 175 lbf
  • Max Speed 48000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.012 kg
  • Price（$） 2.4
Flanged Deep Groove Ball Bearings W 608 R dimension drawing
Download DWG Download PDF

Features

Why Choose W 608 R Bearing for Precision Tasks?

W 608 R Bearing is crafted with stainless steel rings and balls, ensuring smooth and precise operation.
Its dynamic radial load capacity of 447 lbf makes it suitable for various radial load applications.
The single-row construction and open design allow for easy installation and maintenance.
With a maximum speed of 48,000 rpm, it delivers reliable performance in high-speed environments.

Application

Industrial Uses of W 608 R Bearing
W 608 R Bearing is commonly used in small industrial motors and pumps, where its compact size and stainless steel construction offer reliable performance. The flanged design helps with easy mounting and alignment in tight spaces.

In automotive applications, W 608 R Bearing fits well in electric window mechanisms and cooling fans, providing smooth rotation under radial loads. Its high-speed capability makes it suitable for components requiring consistent operation.

For consumer electronics like printers and small appliances, W 608 R Bearing’s lightweight and durability ensure quiet and efficient functioning. The open seal type allows for straightforward maintenance when needed.

Automation systems, such as conveyor belts and small robotic arms, benefit from W 608 R Bearing’s precision and resistance to wear. Its metric sizing ensures compatibility with a variety of equipment designs.
