FAG Current-Insulated Single Row Cylindrical Roller Bearing NUP230-E-XL-M1-F1-J20AA-C3

FAG Current-Insulated Single Row Cylindrical Roller Bearing NUP230-E-XL-M1-F1-J20AA-C3

The FAG NUP230-E-XL-M1-F1-J20AA-C3 is a current-insulated cylindrical roller bearing with dimensions of 150mm bore, 270mm outer diameter, and 45mm width. Its outer ring features a ceramic coating for electrical insulation, preventing current damage in applications like electric motors.

This bearing handles dynamic loads up to 520 kN and static loads of 590 kN, with a reference speed of 2350 RPM. The brass cage provides durability, while the C3 clearance allows for thermal expansion in demanding conditions.

The J20AA coating offers high electrical resistance (50MΩ dry) and withstands voltages up to 1000V. It’s ideal for industrial machinery where electrical currents could cause bearing damage.

Weighing 12.4kg, it’s ROHS and REACH compliant for safe use. Perfect for wind turbines, generators, or any equipment needing reliable insulation against electrical currents.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NUP230-E-XL-M1-F1-J20AA-C3
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 150.0 mm
  • Outside Diameter 270.0 mm
  • Width 45.0 mm
  • Net Weight 12.4 kg
  • Basic Dynamic Load Rating 520 kN
  • Basic Static Load Rating 590 kN
  • Reference Speed 2350r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

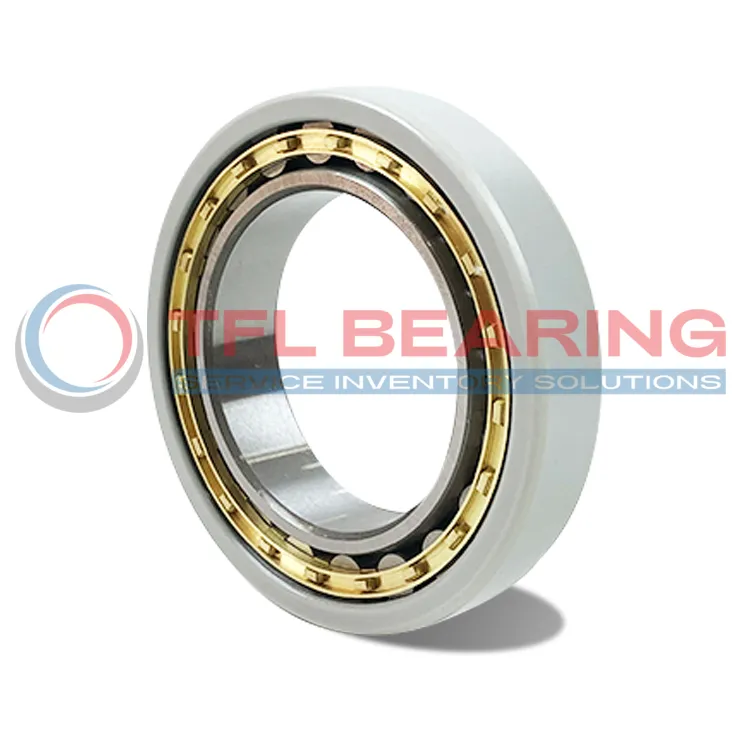

FAG Current-Insulated Single Row Cylindrical Roller Bearing NUP230-E-XL-M1-F1-J20AA-C3 dimension drawing
Download DWG Download PDF

Features

How Is NUP230-E-XL-M1-F1-J20AA-C3 Bearing Engineered for Reliability?

NUP230-E-XL-M1-F1-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
Its brass cage ensures smooth operation and reduces friction, even under heavy loads.

With a basic dynamic load rating of 520 kN, NUP230-E-XL-M1-F1-J20AA-C3 Bearing handles demanding applications with ease.
The C3 radial internal clearance allows for thermal expansion, enhancing durability.

NUP230-E-XL-M1-F1-J20AA-C3 Bearing operates efficiently up to 2,350 rpm, balancing speed and reliability.
Its ceramic coating offers high electrical resistance, making it suitable for environments with electrical currents.

The robust design of NUP230-E-XL-M1-F1-J20AA-C3 Bearing ensures long service life with minimal maintenance.
Its dimensions (150.0 mm x 270.0 mm x 45.0 mm) make it ideal for industrial applications.

Application

Industrial Uses of NUP230-E-XL-M1-F1-J20AA-C3 Bearing
NUP230-E-XL-M1-F1-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical arcing. The brass cage ensures smooth operation even under high radial loads.

Where Is NUP230-E-XL-M1-F1-J20AA-C3 Bearing Used?
You’ll find NUP230-E-XL-M1-F1-J20AA-C3 Bearing in wind turbines, where its ceramic-coated outer ring handles variable loads efficiently. Its C3 clearance allows for thermal expansion in demanding environments.

Built for Heavy-Duty Use: NUP230-E-XL-M1-F1-J20AA-C3 Bearing
NUP230-E-XL-M1-F1-J20AA-C3 Bearing excels in industrial gearboxes, thanks to its high dynamic load rating of 520 kN. The robust design ensures longevity in continuous operation scenarios.

Automotive vs Aerospace: Applications of NUP230-E-XL-M1-F1-J20AA-C3 Bearing
In automotive applications, NUP230-E-XL-M1-F1-J20AA-C3 Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary power units. The insulating properties make it versatile across industries.

Perfect Fit for Automation: NUP230-E-XL-M1-F1-J20AA-C3 Bearing
NUP230-E-XL-M1-F1-J20AA-C3 Bearing is ideal for robotic arms in automated production lines. Its high reference speed of 2350r/min ensures precision in repetitive motions.
