FAG Current-Insulated Single Row Cylindrical Roller Bearing NUP217-E-XL-M1-F1-J20AA-C3

FAG Current-Insulated Single Row Cylindrical Roller Bearing NUP217-E-XL-M1-F1-J20AA-C3

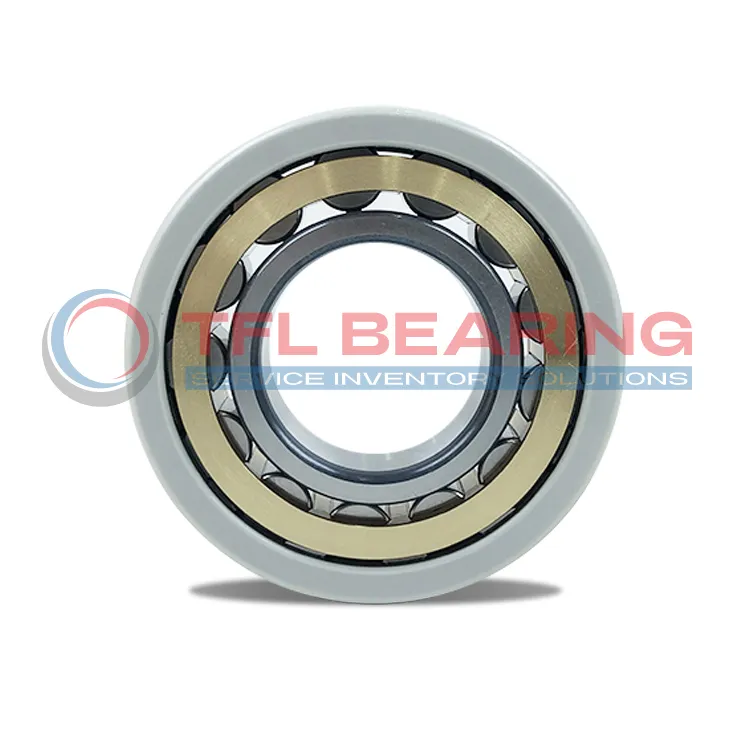

The FAG NUP217-E-XL-M1-F1-J20AA-C3 is a current-insulated cylindrical roller bearing with dimensions of 85mm bore, 150mm outer diameter, and 28mm width. Its outer ring features a ceramic coating for electrical insulation, preventing current damage in applications like motors or generators.

With a dynamic load rating of 194 kN, it handles heavy radial loads smoothly, even at speeds up to 4000 RPM. The brass cage ensures durability and stable operation under demanding conditions.

The insulating coating offers high resistance (50MΩ dry) and withstands voltages up to 1000V, making it ideal for electric machinery. Its C3 clearance allows for thermal expansion in high-temperature environments.

Compliant with RoHS and REACH standards, this 1.89kg bearing suits industrial applications where electrical insulation and robust performance are essential, such as wind turbines or large electric motors.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NUP217-E-XL-M1-F1-J20AA-C3
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 85.0 mm
  • Outside Diameter 150.0 mm
  • Width 28.0 mm
  • Net Weight 1.89 kg
  • Basic Dynamic Load Rating 194 kN
  • Basic Static Load Rating 194 kN
  • Reference Speed 4000r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

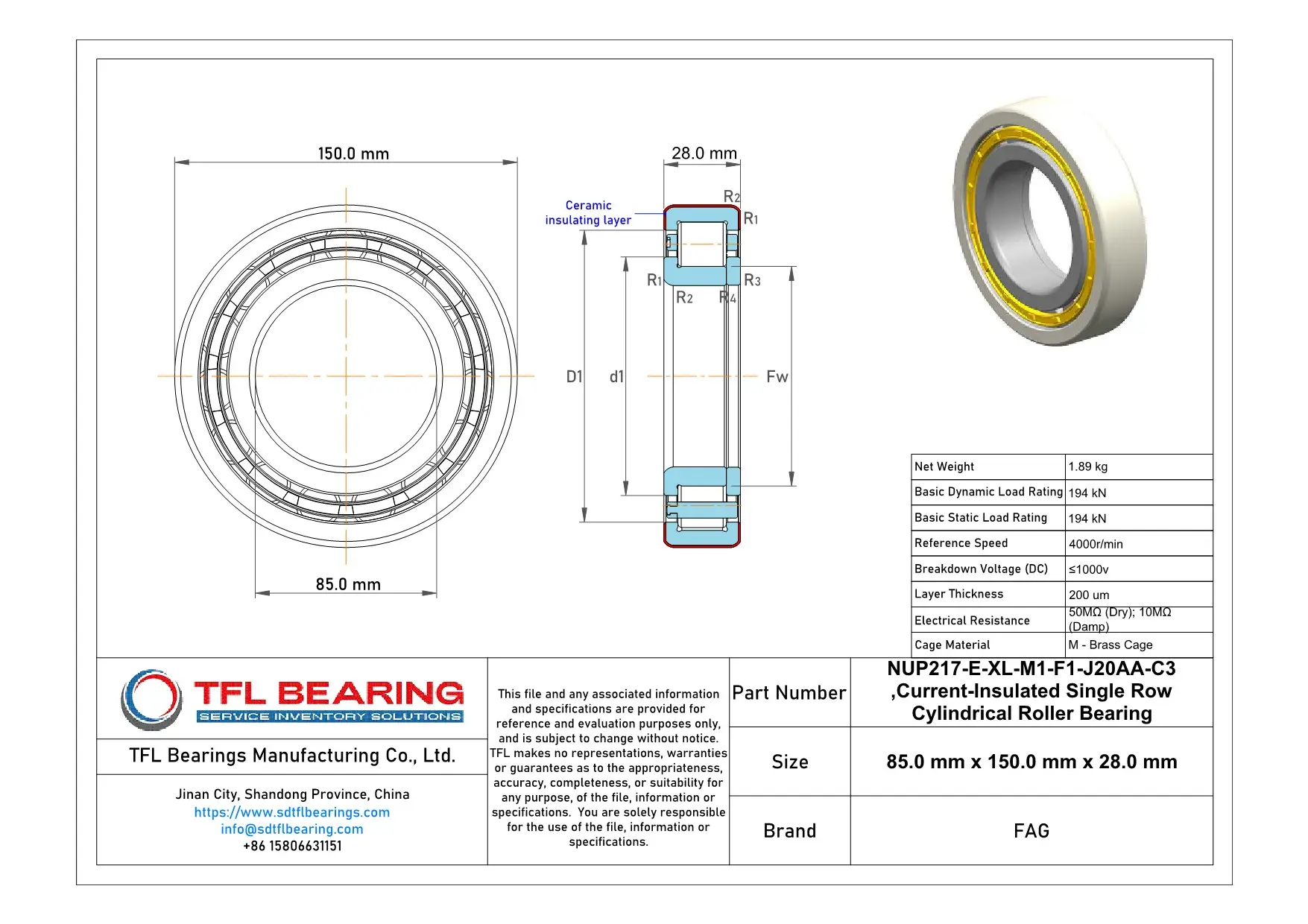

FAG Current-Insulated Single Row Cylindrical Roller Bearing NUP217-E-XL-M1-F1-J20AA-C3 dimension drawing
Download DWG Download PDF
