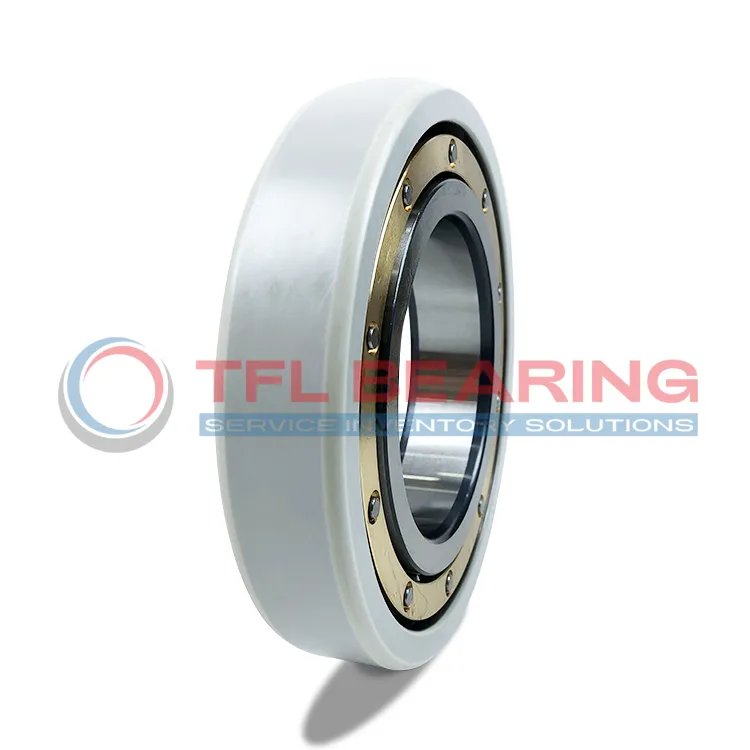

SKF INSOCOAT Bearings 6332M/C3VL0241

SKF INSOCOAT Bearings 6332M/C3VL0241

The SKF INSOCOAT bearing 6332M/C3VL0241 features a 160mm bore and 340mm outer diameter, with a width of 68mm. Made with an insulating coating on the outer ring, it prevents electrical damage in motors and generators.

This bearing handles dynamic loads up to 276kN and static loads up to 285kN, with a reference speed of 4000 r/min. The brass cage ensures smooth operation and durability under high stress.

Its insulation coating offers a breakdown voltage of up to 3000V and an electrical resistance of 200 MΩ, ideal for preventing current leakage. The C3 radial clearance allows for thermal expansion in demanding conditions.

Weighing 29.3kg, it’s suited for heavy-duty applications like electric motors or industrial machinery. Compliant with ROHS standards, it’s a reliable choice for environments with electrical risks.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6332M/C3VL0241
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 160.0 mm
  • Outside Diameter 340.0 mm
  • Width 68.0 mm
  • Net Weight 29.3 kg
  • Basic Dynamic Load Rating 276.0 kN
  • Basic Static Load Rating 285.0 kN
  • Reference Speed 4000.0 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Bearings 6332M/C3VL0241 dimension drawing
Download DWG Download PDF

Features

How Is 6332M/C3VL0241 Bearing Engineered for Reliability?

6332M/C3VL0241 Bearing features an insulation coating on the outer ring, protecting against electrical currents.
Its brass cage ensures smooth operation, even at high speeds up to 4000 r/min.
The bearing’s basic dynamic load rating of 276 kN makes it suitable for heavy-duty applications.
With a breakdown voltage of ≤3000 V, it offers reliable performance in electrically challenging environments.

Application

Industrial Uses of 6332M/C3VL0241 Bearing
6332M/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. The brass cage ensures smooth operation even at high speeds, making it reliable for industrial applications.

Where Is 6332M/C3VL0241 Bearing Used?
You’ll often find 6332M/C3VL0241 Bearing in wind turbines, where its high dynamic load rating handles the stresses of rotating blades. Its insulation properties also protect against electrical arcing in variable frequency drives.

Built for Heavy-Duty Use: 6332M/C3VL0241 Bearing
6332M/C3VL0241 Bearing excels in mining equipment, thanks to its robust construction and C3 clearance for thermal expansion. The coating’s high breakdown voltage makes it ideal for harsh environments with electrical interference.

Automotive vs Aerospace: Applications of 6332M/C3VL0241 Bearing
In automotive, 6332M/C3VL0241 Bearing suits hybrid vehicle motors, where insulation is key. For aerospace, its lightweight design and reliability make it a fit for auxiliary power units.

Perfect Fit for Automation: 6332M/C3VL0241 Bearing
6332M/C3VL0241 Bearing works well in robotic arms, offering precision and resistance to electrical noise. The brass cage reduces friction, ensuring longevity in continuous operation.
