FAG Current-Insulated Single Row Cylindrical Roller Bearing NU320-E-XL-M1-F1-J20AA-C4

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU320-E-XL-M1-F1-J20AA-C4

The NU320-E-XL-M1-F1-J20AA-C4 is a current-insulated cylindrical roller bearing with a 100mm bore and 215mm outer diameter, designed to handle heavy loads. Its ceramic-coated outer ring prevents electrical arcing, making it ideal for electric motors.

With a dynamic load rating of 450 kN and a static load rating of 425 kN, it offers reliable performance under demanding conditions. The brass cage ensures smooth operation at speeds up to 3350 RPM.

The C4 radial clearance allows for thermal expansion, while the insulating coating resists voltages up to 1000V. This bearing is compliant with RoHS and REACH standards.

Perfect for applications in electric motors or generators where electrical insulation is crucial. Its robust design and 8.45kg weight make it suitable for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU320-E-XL-M1-F1-J20AA-C4
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 100.0 mm
  • Outside Diameter 215.0 mm
  • Width 47.0 mm
  • Net Weight 8.45 kg
  • Basic Dynamic Load Rating 450 kN
  • Basic Static Load Rating 425 kN
  • Reference Speed 3350r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant

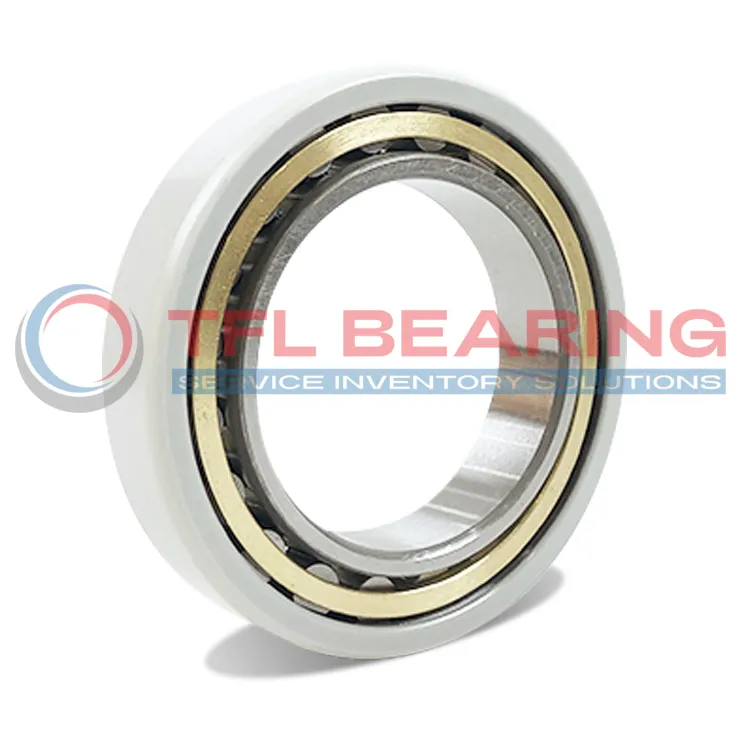

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU320-E-XL-M1-F1-J20AA-C4 dimension drawing
