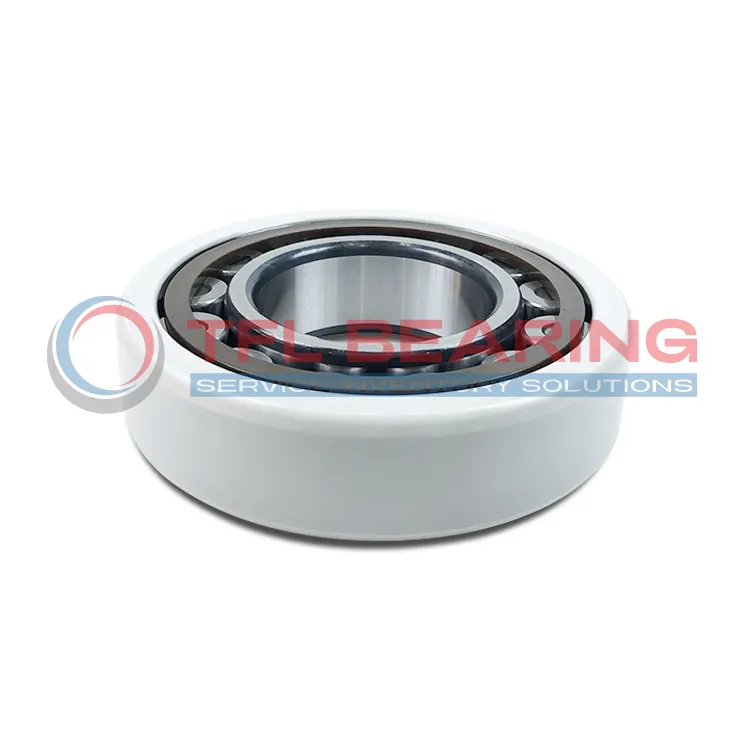

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU215-E-XL-TVP2-F1-J20AA-C3

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU215-E-XL-TVP2-F1-J20AA-C3

The FAG NU215-E-XL-TVP2-F1-J20AA-C3 is a current-insulated cylindrical roller bearing with a 75mm bore and 130mm outer diameter, designed to handle both radial loads and electrical insulation. Its outer ring features a ceramic coating, providing reliable insulation with a breakdown voltage of up to 1000V.

With a dynamic load rating of 155 kN and a static load rating of 157 kN, this bearing is built for durability. It can reach speeds of up to 4400 rpm, making it suitable for high-performance applications.

The plastic molded cage ensures smooth operation, while the C3 radial clearance allows for thermal expansion. The coating maintains high electrical resistance, even in damp conditions (10MΩ).

Ideal for electric motors or generators where electrical insulation is crucial, this bearing is RoHS and REACH compliant. Weighing 1.27 kg, it balances strength and practicality for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU215-E-XL-TVP2-F1-J20AA-C3
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 75.0 mm
  • Outside Diameter 130.0 mm
  • Width 25.0 mm
  • Net Weight 1.27 kg
  • Basic Dynamic Load Rating 155 kN
  • Basic Static Load Rating 157 kN
  • Reference Speed 4400r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material P - Plastic Molded Cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
FAG Current-Insulated Single Row Cylindrical Roller Bearing NU215-E-XL-TVP2-F1-J20AA-C3 dimension drawing
Download DWG Download PDF

Features

How Is NU215-E-XL-TVP2-F1-J20AA-C3 Bearing Engineered for Reliability?

NU215-E-XL-TVP2-F1-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electrically charged environments.

The plastic molded cage ensures smooth operation and reduces friction during high-speed rotations.
With a basic dynamic load rating of 155 kN, it handles heavy loads efficiently.

NU215-E-XL-TVP2-F1-J20AA-C3 Bearing operates reliably in damp conditions, maintaining an electrical resistance of 10MΩ.
Its C3 radial internal clearance allows for thermal expansion, ensuring consistent performance.

The reference speed of 4400r/min makes it suitable for various industrial applications.
Its durable construction ensures long service life with minimal maintenance.

Application

Industrial Uses of NU215-E-XL-TVP2-F1-J20AA-C3 Bearing
NU215-E-XL-TVP2-F1-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical arcing. The ceramic outer ring coating ensures reliable performance in environments with stray currents.

What Makes NU215-E-XL-TVP2-F1-J20AA-C3 Bearing a Preferred Choice?
With its plastic molded cage, NU215-E-XL-TVP2-F1-J20AA-C3 Bearing reduces friction and noise, making it ideal for high-speed applications. The C3 radial clearance allows for thermal expansion in demanding industrial settings.

Perfect Fit for Automation: NU215-E-XL-TVP2-F1-J20AA-C3 Bearing
NU215-E-XL-TVP2-F1-J20AA-C3 Bearing excels in robotic arms and CNC machinery, where precision and durability are key. Its high dynamic load rating ensures long service life even under continuous operation.

Automotive vs Aerospace: Applications of NU215-E-XL-TVP2-F1-J20AA-C3 Bearing
In automotive systems, NU215-E-XL-TVP2-F1-J20AA-C3 Bearing handles high radial loads in gearboxes and drivetrains. For aerospace, its insulating properties protect sensitive components from electrical damage.

Where Is NU215-E-XL-TVP2-F1-J20AA-C3 Bearing Used?
NU215-E-XL-TVP2-F1-J20AA-C3 Bearing is found in wind turbines, where its resistance to electrical currents and high loads is crucial. The ceramic coating also helps in harsh outdoor conditions.
