FAG Current-Insulated Single Row Cylindrical Roller Bearing NU215-E-XL-M1-F1-J20B-C4

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU215-E-XL-M1-F1-J20B-C4

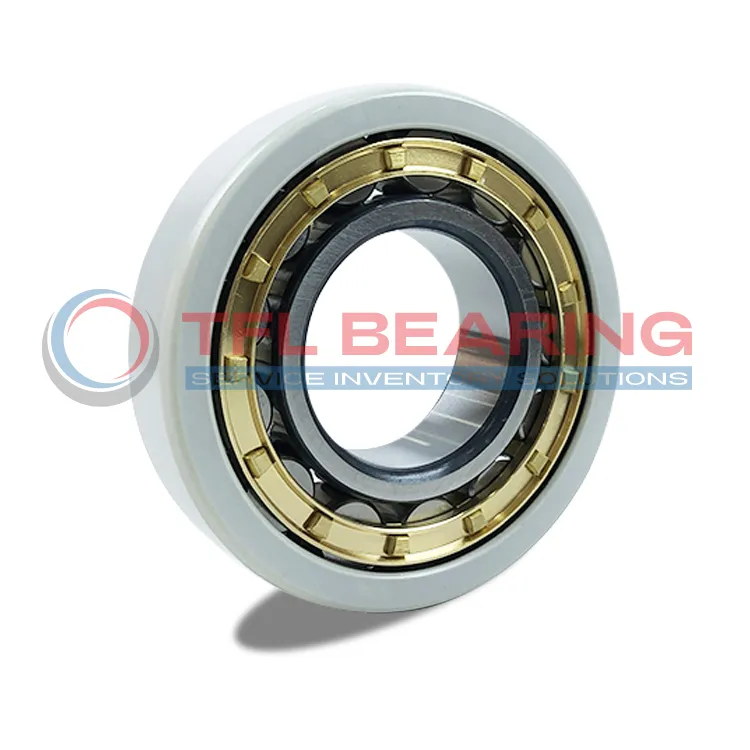

The FAG NU215-E-XL-M1-F1-J20B-C4 is a current-insulated cylindrical roller bearing with a 75mm bore and 130mm outer diameter, designed to handle electrical currents. Its outer ring features a ceramic coating (J20B) to prevent current damage, while the brass cage ensures durability.

This bearing supports dynamic loads up to 155 kN and static loads of 157 kN, with a reference speed of 4400 RPM. The C4 radial clearance allows for thermal expansion, making it suitable for high-speed applications.

The insulating coating provides a breakdown voltage of up to 500V, with electrical resistance of 50MΩ when dry. It’s ideal for electric motors or generators where stray currents are a concern.

Weighing 1.4kg, it’s robust yet manageable for installation. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial and electrical machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU215-E-XL-M1-F1-J20B-C4
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20B
  • Manufacturers FAG
  • Bore Diameter 75.0 mm
  • Outside Diameter 130.0 mm
  • Width 25.0 mm
  • Net Weight 1.4 kg
  • Basic Dynamic Load Rating 155 kN
  • Basic Static Load Rating 157 kN
  • Reference Speed 4400r/min
  • Breakdown Voltage (DC) ≤500v
  • Layer Thic kNess ≤100 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant

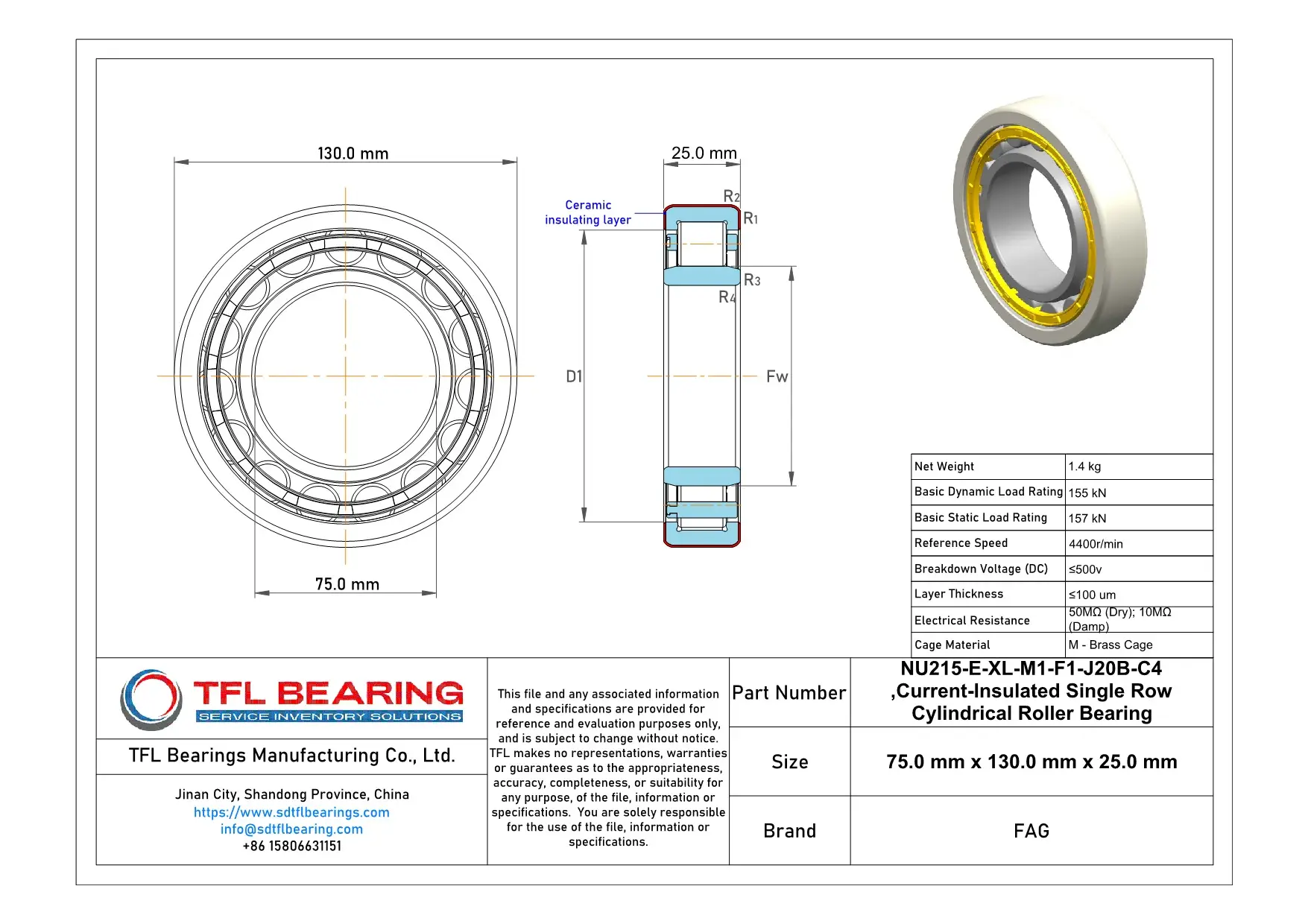

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU215-E-XL-M1-F1-J20B-C4 dimension drawing
Download DWG Download PDF

Features

How Does NU215-E-XL-M1-F1-J20B-C4 Bearing Resist Electrical Currents?

NU215-E-XL-M1-F1-J20B-C4 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
The coating offers a breakdown voltage of up to 500V, making it suitable for applications with electrical interference.

With a brass cage, NU215-E-XL-M1-F1-J20B-C4 Bearing ensures smooth operation and reduced wear under high loads.
Its C4 radial internal clearance allows for thermal expansion, maintaining performance in varying conditions.

NU215-E-XL-M1-F1-J20B-C4 Bearing’s dynamic load rating of 155 kN ensures reliability in demanding industrial environments.
The bearing’s reference speed of 4400r/min balances efficiency and durability for long-term use.

Application

Industrial Uses of NU215-E-XL-M1-F1-J20B-C4 Bearing
NU215-E-XL-M1-F1-J20B-C4 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent electrical damage. The brass cage ensures smooth operation even under high rotational speeds.

What Makes NU215-E-XL-M1-F1-J20B-C4 Bearing a Preferred Choice?
In wind turbines, NU215-E-XL-M1-F1-J20B-C4 Bearing handles heavy radial loads while its ceramic coating protects against stray currents. Its C4 clearance allows for thermal expansion in demanding environments.

Perfect Fit for Automation: NU215-E-XL-M1-F1-J20B-C4 Bearing
NU215-E-XL-M1-F1-J20B-C4 Bearing works well in robotic arms, offering reliable performance with minimal maintenance. The dry electrical resistance of 50MΩ makes it suitable for sensitive electronic applications.

Automotive vs Aerospace: Applications of NU215-E-XL-M1-F1-J20B-C4 Bearing
In automotive alternators, NU215-E-XL-M1-F1-J20B-C4 Bearing provides durability against vibration and heat. For aerospace, its lightweight design and insulation properties are ideal for avionics systems.
