SKF INSOCOAT Bearings 6316/C3VL2071

SKF INSOCOAT Bearings 6316/C3VL2071

The SKF 6316/C3VL2071 is an INSOCOAT bearing with an 80mm bore and 170mm outer diameter, featuring a durable inner ring insulation coating. It handles dynamic loads up to 130 kN and spins smoothly at speeds up to 8500 RPM.

Its VL2071 coating provides electrical resistance of 200 MΩ, preventing current damage in electric motors. The C3 radial clearance ensures reliable performance under varying temperatures.

With a breakdown voltage of 3000 V, it’s ideal for applications like generators or industrial drives where electrical insulation is needed. The sheet metal cage offers strength and longevity.

Weighing 3.63kg, this RoHS-compliant bearing balances robustness and practicality for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6316/C3VL2071
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Inner ring insulation coating
  • Coating Suffix VL2071
  • Manufacturers SKF
  • Bore Diameter 80.0 mm
  • Outside Diameter 170.0 mm
  • Width 39.0 mm
  • Net Weight 3.63 kg
  • Basic Dynamic Load Rating 130.0 kN
  • Basic Static Load Rating 86.5 kN
  • Reference Speed 8500.0 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Sheet metal
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

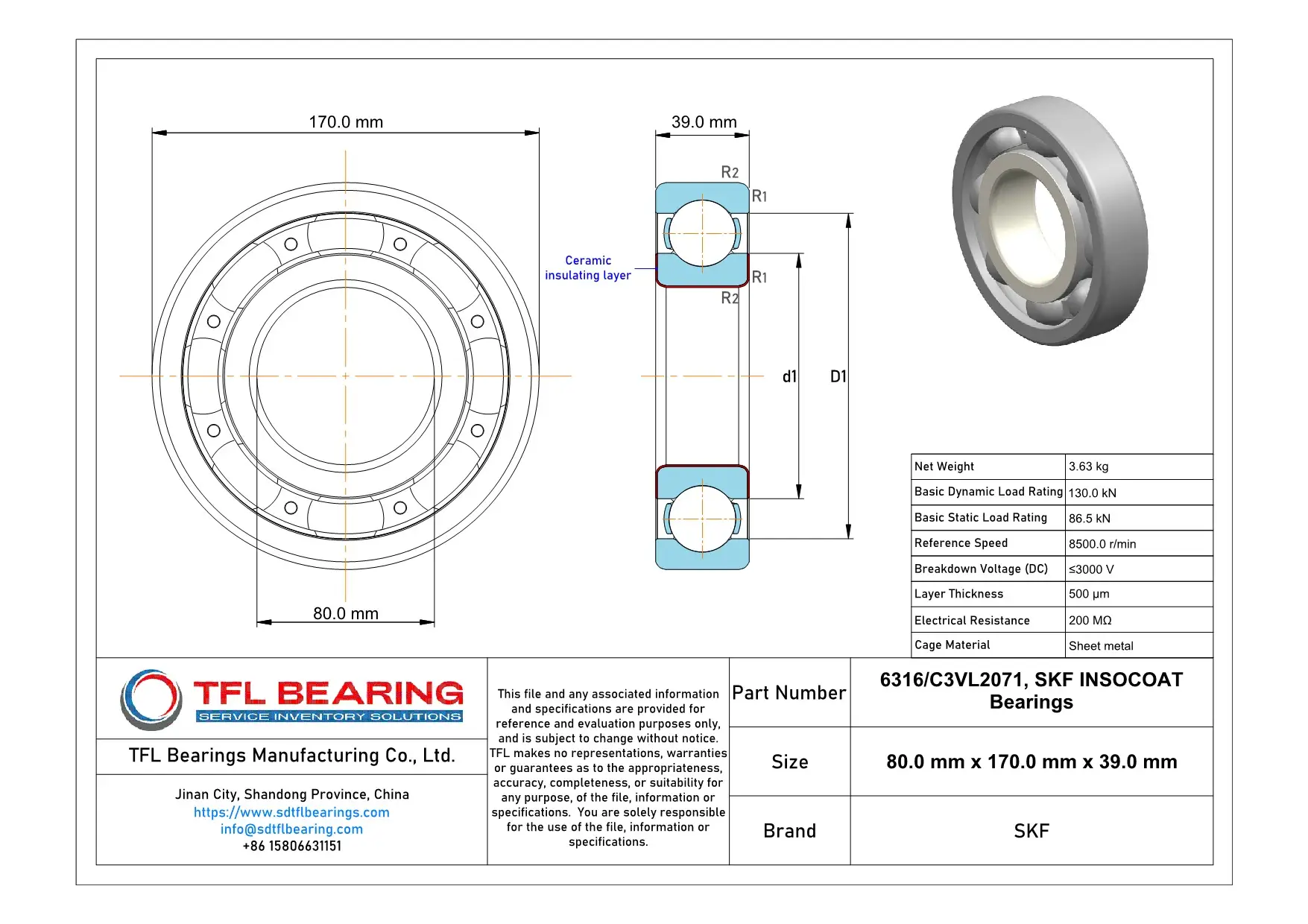

SKF INSOCOAT Bearings 6316/C3VL2071 dimension drawing
Download DWG Download PDF

Features

How Is 6316/C3VL2071 Bearing Engineered for Reliability?

6316/C3VL2071 Bearing features an inner ring insulation coating, providing protection against electrical currents.
This design ensures reliable operation in environments with electrical interference.

The sheet metal cage maintains ball alignment, enhancing durability under high loads.
With a basic dynamic load rating of 130.0 kN, it handles demanding applications with ease.

6316/C3VL2071 Bearing’s C3 radial internal clearance allows for thermal expansion, ensuring consistent performance.
Its reference speed of 8500.0 r/min makes it suitable for high-speed operations.

Application

Industrial Uses of 6316/C3VL2071 Bearing
The 6316/C3VL2071 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. Its C3 clearance ensures reliable performance in high-temperature industrial environments.

What Makes 6316/C3VL2071 Bearing a Preferred Choice?
With a dynamic load rating of 130 kN, 6316/C3VL2071 Bearing handles heavy loads in wind turbines and large pumps. The sheet metal cage provides durability while maintaining smooth rotation.

Perfect Fit for Automation: 6316/C3VL2071 Bearing
In automated production lines, 6316/C3VL2071 Bearing’s high reference speed of 8500 r/min ensures efficient operation. The insulation coating also protects against electrical erosion in servo motors.

Medical vs Industrial: Where 6316/C3VL2071 Bearing Excels
While 6316/C3VL2071 Bearing is ideal for industrial gearboxes, its precision makes it suitable for medical imaging equipment too. The breakdown voltage of ≤3000 V adds an extra layer of safety in sensitive applications.
