FAG Current-Insulated Bearings 6317-M-J20AB-C3

FAG Current-Insulated Bearings 6317-M-J20AB-C3

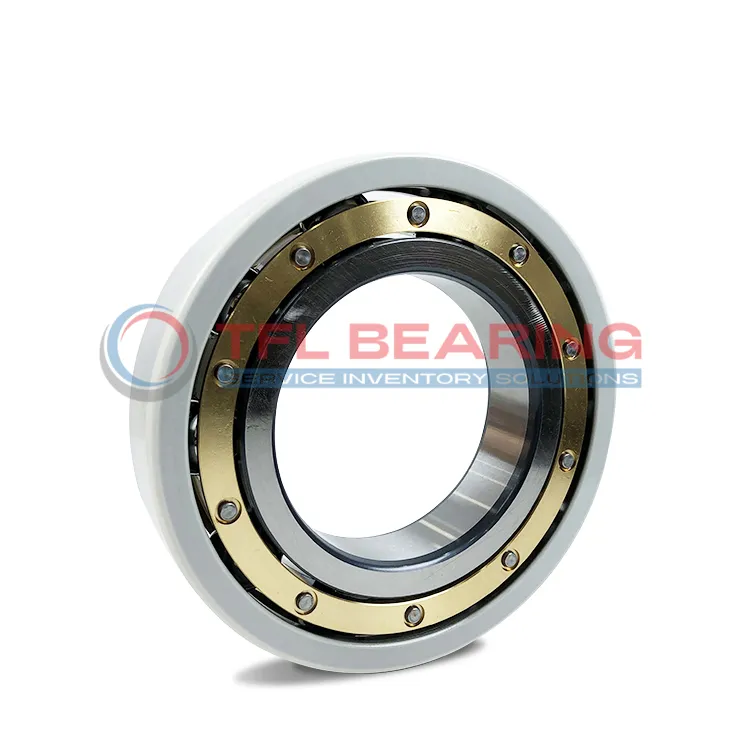

The FAG 6317-M-J20AB-C3 is a current-insulated bearing with dimensions of 85mm bore, 180mm outer diameter, and 41mm width. Its outer ring features a ceramic coating for electrical insulation, preventing damage from stray currents.

With a dynamic load rating of 141kN and static load rating of 97kN, it handles heavy loads while maintaining smooth rotation up to 6600 RPM. The brass cage ensures durability and reliable performance under stress.

The ceramic coating provides high electrical resistance (50MΩ when dry) and can withstand voltages up to 500V. This makes it ideal for electric motors or generators where electrical currents might cause issues.

Weighing 4.9kg, this RoHS-compliant bearing suits industrial applications requiring both mechanical strength and electrical insulation. Its C3 clearance allows for thermal expansion in demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6317-M-J20AB-C3
  • Product Category Current-Insulated Bearings
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AB
  • Manufacturers FAG
  • Bore Diameter 85.0 mm
  • Outside Diameter 180.0 mm
  • Width 41.0 mm
  • Net Weight 4.9 kg
  • Basic Dynamic Load Rating 141.0 kN
  • Basic Static Load Rating 97.0 kN
  • Reference Speed 6600 r/min
  • Breakdown Voltage (DC) ≤500 V
  • Layer Thickness 100 µm
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material Brass cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

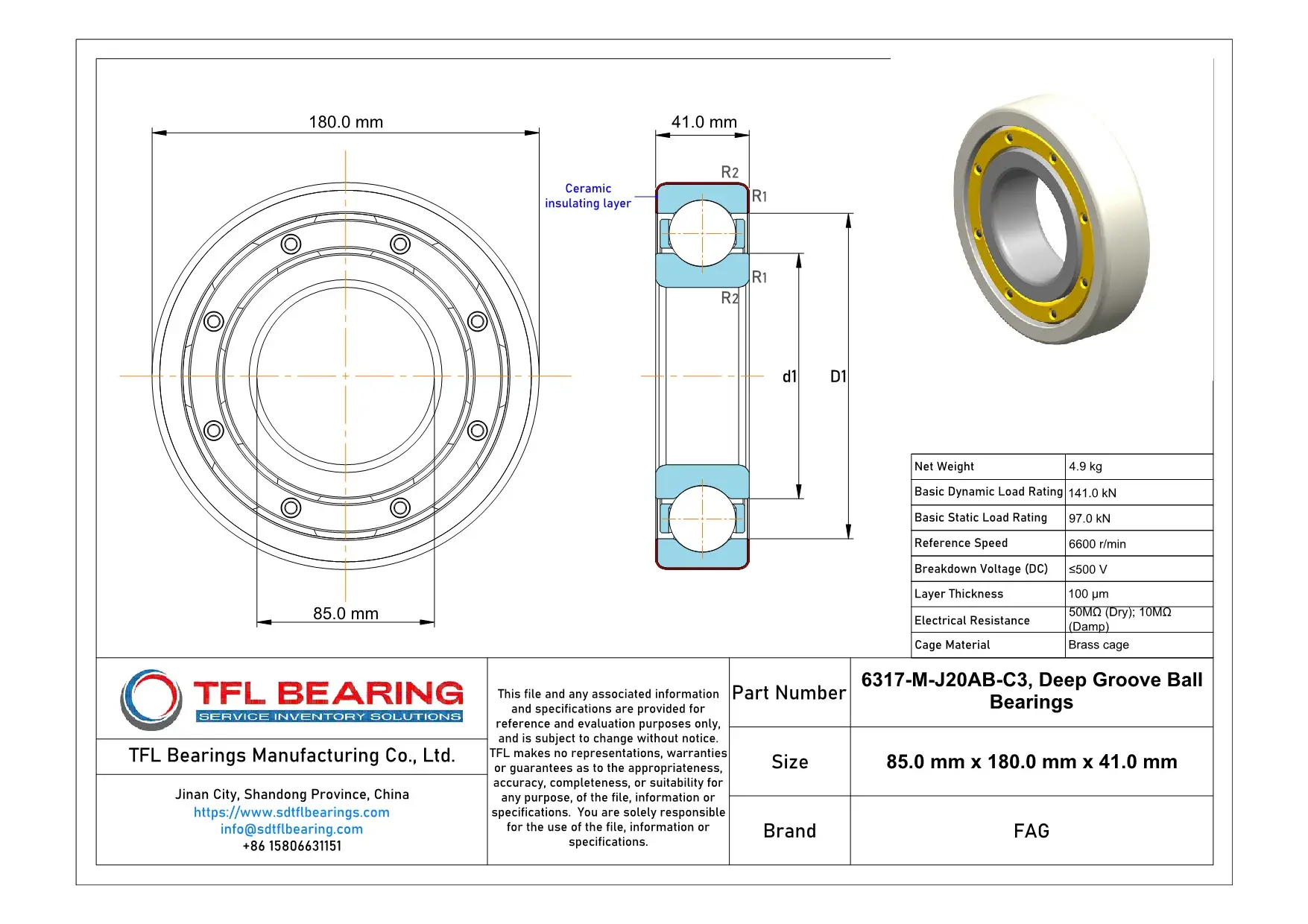

FAG Current-Insulated Bearings 6317-M-J20AB-C3 dimension drawing
Download DWG Download PDF

Features

How Is 6317-M-J20AB-C3 Bearing Engineered for Reliability?

6317-M-J20AB-C3 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electrically active environments.

The brass cage ensures smooth operation and durability under high-speed conditions.
With a reference speed of 6600 r/min, it maintains performance in demanding applications.

6317-M-J20AB-C3 Bearing’s C3 radial internal clearance allows for thermal expansion, enhancing longevity.
Its basic dynamic load rating of 141.0 kN ensures reliable performance under heavy loads.

Application

Industrial Uses of 6317-M-J20AB-C3 Bearing
6317-M-J20AB-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. The ceramic coating on the outer ring ensures reliable performance in high-voltage environments.

What Makes 6317-M-J20AB-C3 Bearing a Preferred Choice?
With its brass cage and C3 clearance, 6317-M-J20AB-C3 Bearing handles high speeds and loads effortlessly, making it ideal for industrial fans and pumps. The coating also resists moisture, extending its lifespan in damp conditions.

Perfect Fit for Automation: 6317-M-J20AB-C3 Bearing
In robotic systems, 6317-M-J20AB-C3 Bearing’s stable electrical resistance ensures smooth operation without interference. Its durable design suits repetitive movements in assembly lines and CNC machines.

Medical vs Industrial: Where 6317-M-J20AB-C3 Bearing Excels
While 6317-M-J20AB-C3 Bearing is robust enough for heavy machinery, its precision also benefits medical imaging devices. The insulation prevents electrical arcing, crucial for sensitive diagnostic equipment.
