FAG Current-Insulated Single Row Cylindrical Roller Bearing NU1038-M1-J20AA

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU1038-M1-J20AA

The FAG NU1038-M1-J20AA is a current-insulated cylindrical roller bearing, measuring 190mm in bore diameter and 290mm outside diameter, with a width of 46mm. Its outer ring features a ceramic coating for electrical insulation, preventing current damage.

With a dynamic load rating of 435 kN and a static load rating of 550 kN, it handles heavy radial loads efficiently. The brass cage ensures smooth operation at speeds up to 2410 rpm.

The ceramic coating provides high electrical resistance (50MΩ dry, 10MΩ damp) and a breakdown voltage of up to 1000V. This makes it ideal for electric motors or generators where stray currents are a concern.

Weighing 11.2 kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU1038-M1-J20AA
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 190.0 mm
  • Outside Diameter 290.0 mm
  • Width 46.0 mm
  • Net Weight 11.2 kg
  • Basic Dynamic Load Rating 435 kN
  • Basic Static Load Rating 550 kN
  • Reference Speed 2410r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance Cn Normal Internal Play
  • ROHS Compliant
  • REACH Compliant

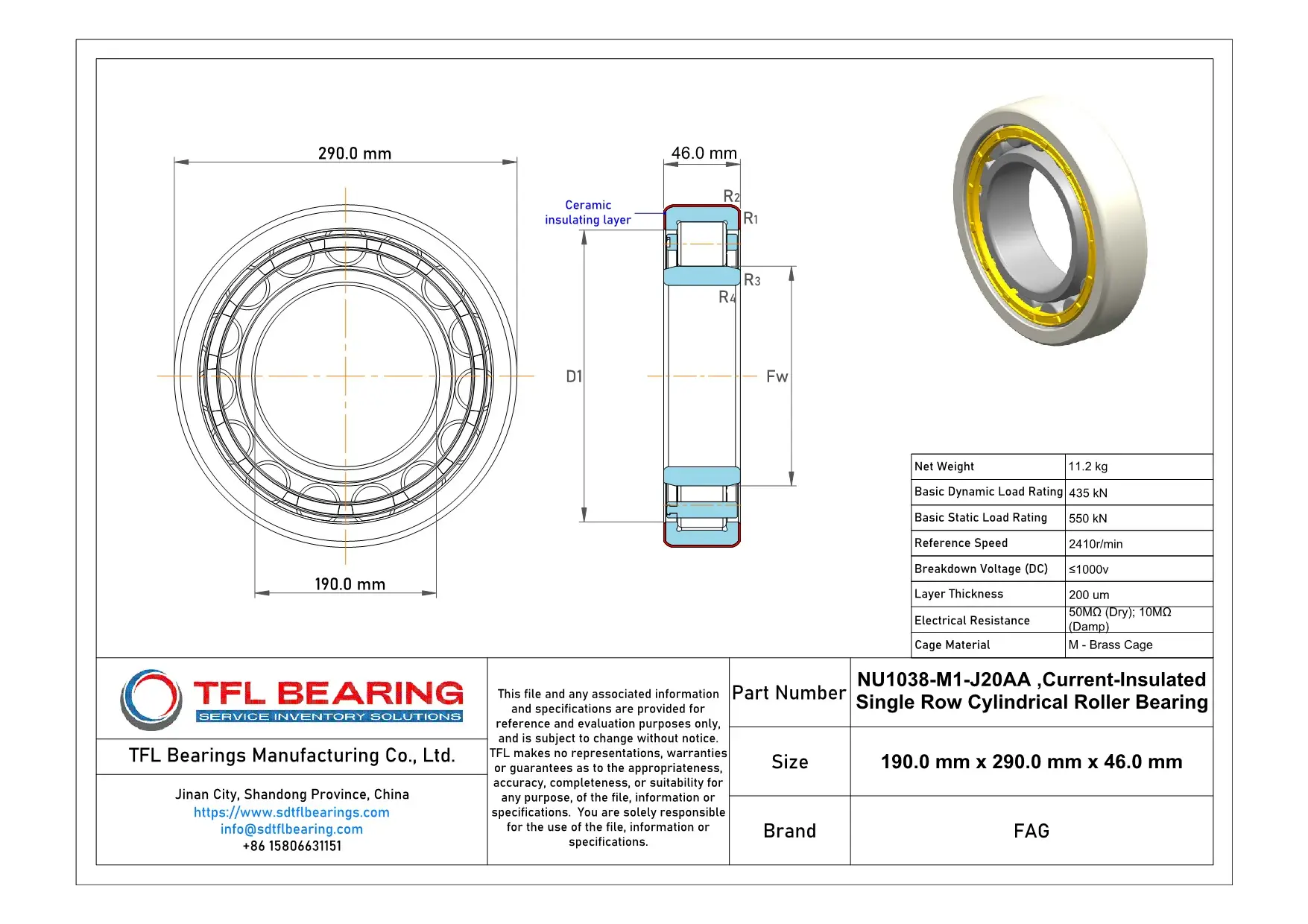

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU1038-M1-J20AA dimension drawing
Download DWG Download PDF

Features

Why Choose NU1038-M1-J20AA Bearing for Precision Tasks?

NU1038-M1-J20AA Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, making it ideal for applications where electrical currents could cause damage.

The brass cage ensures smooth operation and reduces friction, enhancing the bearing’s performance.
With a basic dynamic load rating of 435 kN, it handles heavy loads reliably.

NU1038-M1-J20AA Bearing operates efficiently up to 2410 rpm, balancing speed and durability.
Its breakdown voltage of ≤1000V and electrical resistance up to 50MΩ ensure safety in damp conditions.

The normal internal play (Cn) allows for precise alignment, reducing wear over time.
This makes NU1038-M1-J20AA Bearing a dependable choice for demanding industrial applications.

Application

Industrial Uses of NU1038-M1-J20AA Bearing
NU1038-M1-J20AA Bearing is commonly used in electric motors and generators, where its current-insulated design prevents electrical arcing damage. The brass cage ensures smooth operation even under high rotational speeds.

What Makes NU1038-M1-J20AA Bearing a Preferred Choice?
In wind turbine applications, NU1038-M1-J20AA Bearing handles heavy radial loads while its ceramic coating protects against stray currents. Its robust construction makes it suitable for harsh outdoor environments.

Built for Heavy-Duty Use: NU1038-M1-J20AA Bearing
NU1038-M1-J20AA Bearing excels in industrial gearboxes, where its high dynamic load rating ensures long service life. The normal internal play allows for thermal expansion during continuous operation.

Automotive vs Aerospace: Applications of NU1038-M1-J20AA Bearing
In automotive test rigs, NU1038-M1-J20AA Bearing provides reliable performance under variable loads. For aerospace ground equipment, its insulation properties prevent electrical interference with sensitive instruments.

Perfect Fit for Automation: NU1038-M1-J20AA Bearing
NU1038-M1-J20AA Bearing is ideal for robotic assembly lines, where its consistent electrical resistance maintains precision movement. The dry and damp resistance ratings ensure performance in various humidity conditions.
