NTN Megaohm Single Row Cylindrical Roller Bearing 7MC3-NU319EGRBC3

NTN Megaohm Single Row Cylindrical Roller Bearing 7MC3-NU319EGRBC3

The NTN 7MC3-NU319EGRBC3 is a single-row cylindrical roller bearing with a 95mm bore and 200mm outer diameter, designed for heavy-duty applications. Its insulation coating on the outer ring prevents electrical arcing, making it ideal for electric motors.

With a dynamic load rating of 335kN and a static load rating of 385kN, it handles high loads efficiently. The brass cage ensures smooth operation at speeds up to 3100 RPM.

The C3 radial clearance allows for thermal expansion, while the 0.2mm insulation layer offers a breakdown voltage of 1000-3000 VDC. This makes it suitable for environments with electrical currents.

Weighing 7.13kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a reliable choice for machinery requiring electrical insulation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 7MC3-NU319EGRBC3
  • Product Category Megaohm Single Row Cylindrical Roller Bearing
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix 7MC3
  • Manufacturers NTN
  • Bore Diameter 95.0 mm
  • Outside Diameter 200.0 mm
  • Width 45.0 mm
  • Net Weight 7.13 kg
  • Basic Dynamic Load Rating 335.0kN
  • Basic Static Load Rating 385.0kN
  • Reference Speed 3100 r/min
  • Breakdown Voltage (DC) 1000 VDC to 3000 VDC
  • Layer Thickness 0.2 mm
  • Electrical Resistance > 2,000 MΩ
  • Cage Material M - Brass Cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

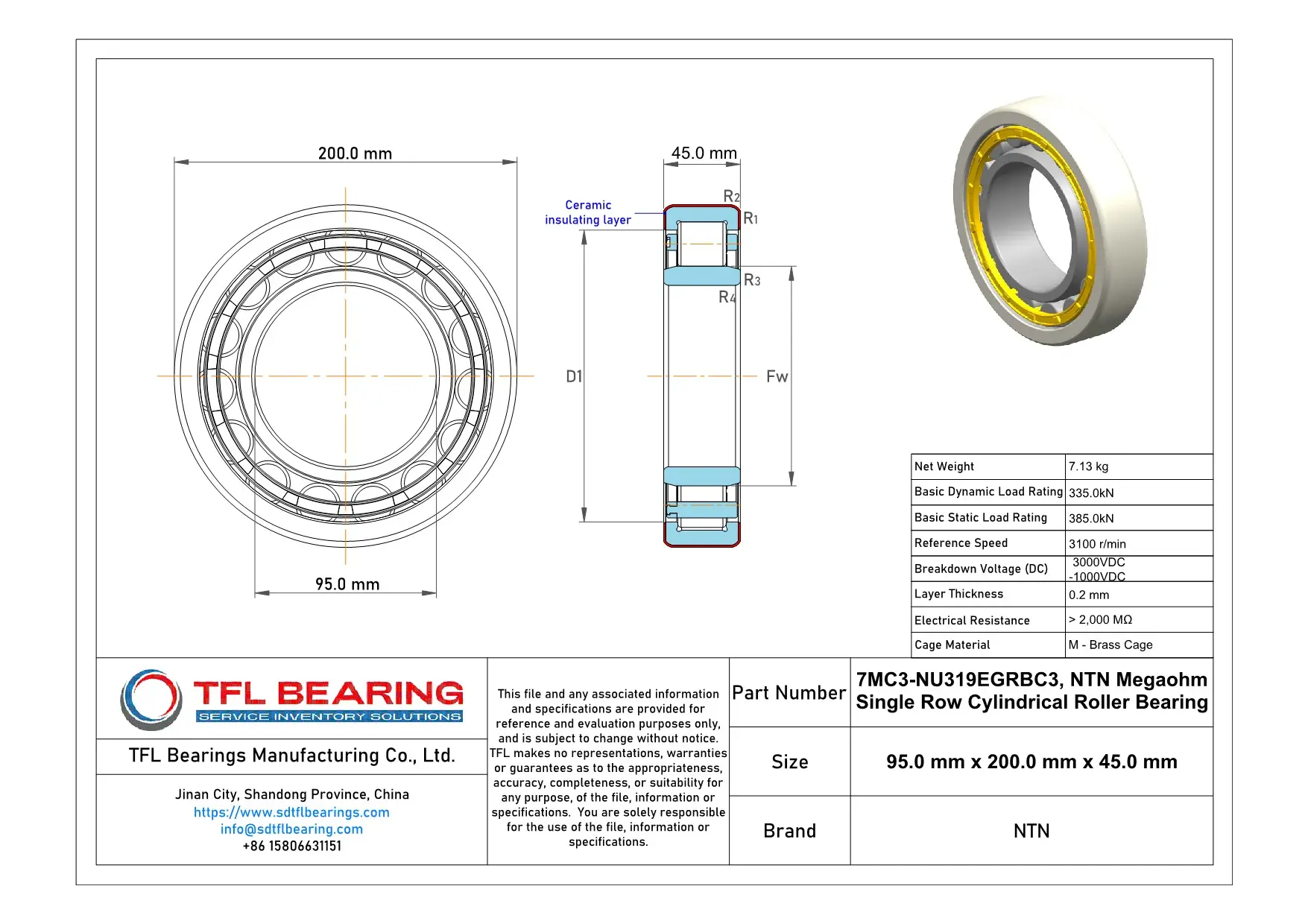

NTN Megaohm Single Row Cylindrical Roller Bearing 7MC3-NU319EGRBC3 dimension drawing
Download DWG Download PDF

Features

How Is 7MC3-NU319EGRBC3 Bearing Engineered for Reliability?

7MC3-NU319EGRBC3 Bearing features an insulating coating on the outer ring, preventing electrical damage in high-voltage environments.

Its brass cage ensures smooth operation and reduces friction, even under heavy loads.

With a basic dynamic load rating of 335.0kN, it delivers consistent performance in demanding applications.

The bearing’s C3 radial internal clearance allows for thermal expansion, enhancing durability.

Application

Industrial Uses of 7MC3-NU319EGRBC3 Bearing
The 7MC3-NU319EGRBC3 Bearing is commonly used in electric motors, where its insulating coating prevents electrical arcing and extends service life. Its brass cage ensures smooth operation even under high rotational speeds.

In wind turbines, 7MC3-NU319EGRBC3 Bearing handles heavy radial loads while resisting electrical corrosion. The C3 clearance allows for thermal expansion, making it reliable in variable temperatures.

For industrial pumps, 7MC3-NU319EGRBC3 Bearing’s high dynamic load rating ensures durability in continuous operation. The insulation coating also protects against stray currents, reducing downtime.

What Makes 7MC3-NU319EGRBC3 Bearing a Preferred Choice?
The 7MC3-NU319EGRBC3 Bearing is ideal for CNC machinery, where precision and electrical insulation are critical. Its robust design handles both radial and axial loads effectively.

In railway applications, 7MC3-NU319EGRBC3 Bearing’s high breakdown voltage safeguards against electrical damage. The brass cage adds stability, even in high-vibration environments.

Built for Heavy-Duty Use: 7MC3-NU319EGRBC3 Bearing
The 7MC3-NU319EGRBC3 Bearing excels in steel mills, where its insulation coating resists electrical pitting. Its high load capacity makes it suitable for rolling mills and heavy machinery.

For mining equipment, 7MC3-NU319EGRBC3 Bearing’s durability ensures reliable performance in harsh conditions. The C3 clearance accommodates misalignment, reducing wear over time.
