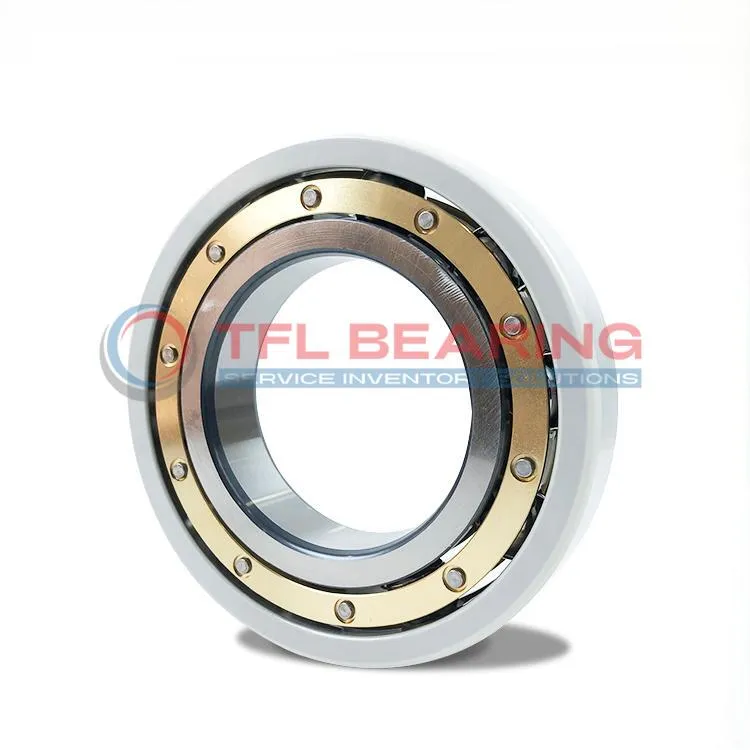

FAG Current-Insulated Bearings 6230-M-J20AA-C3

FAG Current-Insulated Bearings 6230-M-J20AA-C3

The FAG 6230-M-J20AA-C3 is a current-insulated bearing with a 150mm bore and 270mm outer diameter, designed to prevent electrical damage. Its outer ring features a ceramic coating, providing insulation up to 3000V.

With a dynamic load rating of 187kN and a static load rating of 168kN, it handles heavy loads efficiently. The brass cage ensures smooth operation at speeds up to 4350 rpm.

The C3 radial clearance allows for thermal expansion, making it suitable for high-temperature environments. It’s ideal for electric motors or generators where electrical currents could cause damage.

Weighing 11.52kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6230-M-J20AA-C3
  • Product Category Current-Insulated Bearings
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 150.0 mm
  • Outside Diameter 270.0 mm
  • Width 45.0 mm
  • Net Weight 11.52 kg
  • Basic Dynamic Load Rating 187.0 kN
  • Basic Static Load Rating 168.0 kN
  • Reference Speed 4350 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 200 µm
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material Brass cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

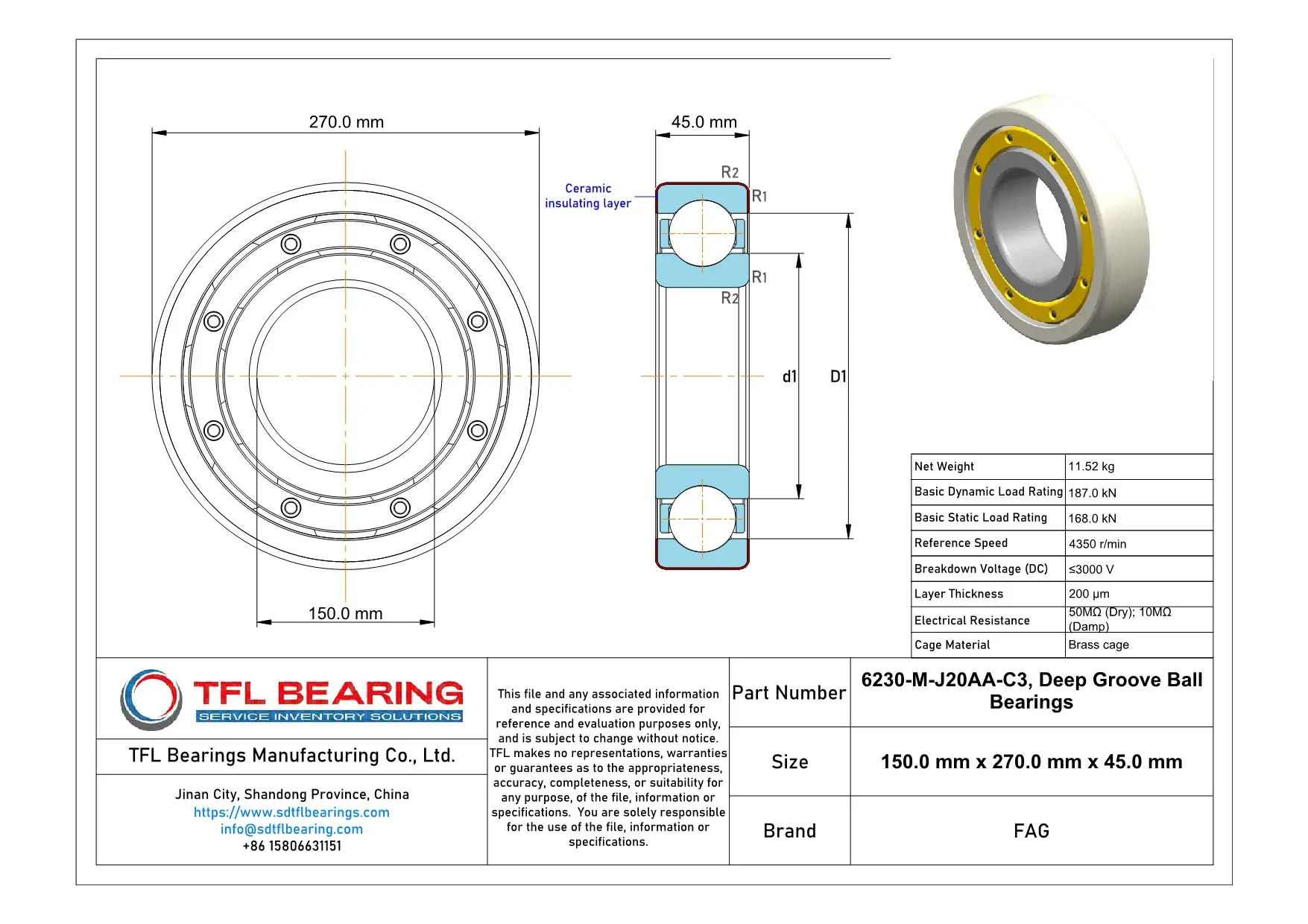

FAG Current-Insulated Bearings 6230-M-J20AA-C3 dimension drawing
Download DWG Download PDF

Features

How Is 6230-M-J20AA-C3 Bearing Engineered for Reliability?

6230-M-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electrical applications.

With a basic dynamic load rating of 187.0 kN, it handles heavy loads while maintaining performance.
The brass cage ensures smooth operation and reduces friction during high-speed rotations.

6230-M-J20AA-C3 Bearing operates efficiently up to 4,350 r/min, suitable for demanding industrial environments.
Its C3 radial internal clearance allows for thermal expansion, enhancing durability.

The coating offers high electrical resistance, with 50MΩ when dry and 10MΩ in damp conditions.
This makes 6230-M-J20AA-C3 Bearing reliable in various operational settings.

Application

Industrial Uses of 6230-M-J20AA-C3 Bearing
The 6230-M-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. The brass cage ensures smooth operation even at high speeds.

Where Is 6230-M-J20AA-C3 Bearing Used?
You’ll often find 6230-M-J20AA-C3 Bearing in wind turbines and industrial drives, thanks to its ceramic coating that resists electrical arcing. Its C3 clearance makes it suitable for applications with thermal expansion.

Perfect Fit for Automation: 6230-M-J20AA-C3 Bearing
In automated production lines, 6230-M-J20AA-C3 Bearing handles high loads while maintaining electrical insulation. The 45mm width provides stability in compact spaces.

Medical vs Industrial: Where 6230-M-J20AA-C3 Bearing Excels
While 6230-M-J20AA-C3 Bearing excels in industrial settings like pumps, its precision also suits medical imaging devices. The 270mm outer diameter offers robust support for heavy-duty use.

Key Fields for 6230-M-J20AA-C3 Bearing
Railway applications benefit from 6230-M-J20AA-C3 Bearing’s ability to withstand vibrations and electrical interference. The 150mm bore diameter fits standard shaft sizes perfectly.
