FAG Current-Insulated Single Row Cylindrical Roller Bearing NU1020-XL-M1-F1-J20AA-C3

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU1020-XL-M1-F1-J20AA-C3

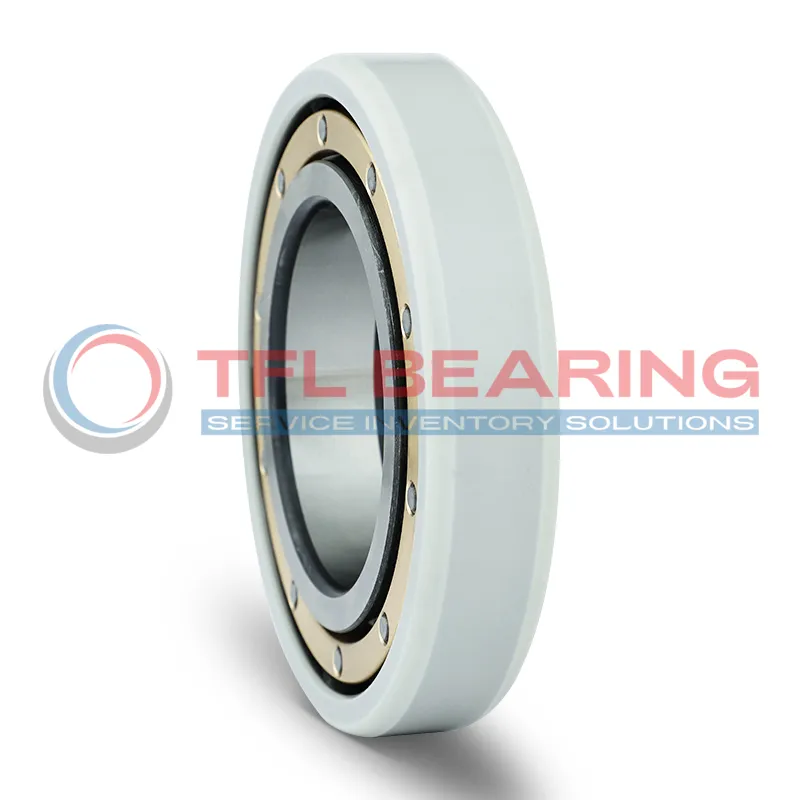

The FAG NU1020-XL-M1-F1-J20AA-C3 is a current-insulated cylindrical roller bearing with dimensions of 100mm bore, 150mm outer diameter, and 24mm width. Its outer ring features a ceramic coating for electrical insulation, preventing current damage.

This bearing handles dynamic loads up to 116kN and static loads up to 135kN, with a reference speed of 4150r/min. The brass cage ensures durability and smooth operation under high-speed conditions.

The ceramic coating provides insulation with a breakdown voltage of up to 1000V, making it ideal for electric motors or generators. Its C3 radial clearance allows for thermal expansion in demanding applications.

Weighing 1.48kg, it’s a robust choice for industrial machinery where electrical insulation is needed. Compliant with RoHS and REACH standards for safe use in various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU1020-XL-M1-F1-J20AA-C3
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 100.0 mm
  • Outside Diameter 150.0 mm
  • Width 24.0 mm
  • Net Weight 1.48 kg
  • Basic Dynamic Load Rating 116 kN
  • Basic Static Load Rating 135 kN
  • Reference Speed 4150r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
FAG Current-Insulated Single Row Cylindrical Roller Bearing NU1020-XL-M1-F1-J20AA-C3 dimension drawing
Download DWG Download PDF

Features

How Does NU1020-XL-M1-F1-J20AA-C3 Bearing Resist Electrical Currents?

NU1020-XL-M1-F1-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
The coating offers a breakdown voltage of up to 1000V, making it suitable for applications with electrical interference.

With a brass cage, NU1020-XL-M1-F1-J20AA-C3 Bearing ensures smooth operation and reduced wear under high loads.
Its C3 radial internal clearance allows for thermal expansion, maintaining performance in varying conditions.

NU1020-XL-M1-F1-J20AA-C3 Bearing’s dynamic load rating of 116 kN ensures reliability in demanding industrial environments.
The ceramic coating also resists moisture, maintaining electrical resistance even in damp conditions.

Designed for high-speed applications, NU1020-XL-M1-F1-J20AA-C3 Bearing reaches reference speeds of 4150r/min.
Its compact design and lightweight construction make it easy to integrate into various machinery.

Application

Industrial Uses of NU1020-XL-M1-F1-J20AA-C3 Bearing
NU1020-XL-M1-F1-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical damage. The brass cage ensures smooth operation even under high rotational speeds.

What Makes NU1020-XL-M1-F1-J20AA-C3 Bearing a Preferred Choice?
In wind turbines, NU1020-XL-M1-F1-J20AA-C3 Bearing handles heavy radial loads while its ceramic coating protects against stray currents. The C3 clearance allows for thermal expansion in demanding environments.

Perfect Fit for Automation: NU1020-XL-M1-F1-J20AA-C3 Bearing
NU1020-XL-M1-F1-J20AA-C3 Bearing works well in robotic arms, where precision and insulation are key. Its compact design fits seamlessly into tight spaces without compromising performance.

Medical vs Industrial: Where NU1020-XL-M1-F1-J20AA-C3 Bearing Excels
While suitable for industrial machinery, NU1020-XL-M1-F1-J20AA-C3 Bearing also meets the reliability needs of medical imaging devices. The ceramic coating ensures no electrical interference with sensitive equipment.

Essential Roles of NU1020-XL-M1-F1-J20AA-C3 Bearing
NU1020-XL-M1-F1-J20AA-C3 Bearing is ideal for conveyor systems in factories, thanks to its high load capacity and insulation properties. The brass cage reduces friction, extending service life.
