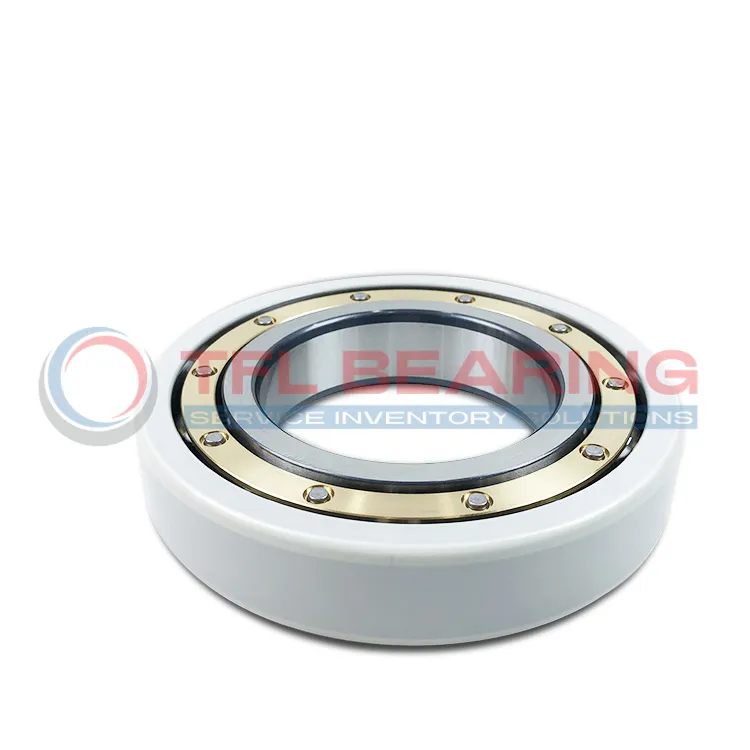

Electrically Insulated Ball Bearings 6226M/C3VL0241

Electrically Insulated Ball Bearings 6226M/C3VL0241

The 6226M/C3VL0241 is an electrically insulated ball bearing with a 130mm bore and 230mm outer diameter, designed to handle both dynamic and static loads efficiently. Its outer ring features a special insulation coating to prevent electrical currents from passing through.

With a dynamic load rating of 156kN and a static load rating of 132kN, it performs reliably under heavy loads. The bearing can reach speeds up to 5600 RPM, making it suitable for high-speed applications.

The brass cage ensures smooth operation, while the C3 radial internal clearance allows for thermal expansion. The insulation coating has a breakdown voltage of 1000-3000V and an electrical resistance of 50-200 MΩ.

Ideal for use in electric motors or generators where electrical insulation is crucial. Compliant with RoHS and REACH standards, it’s a safe and durable choice for industrial applications. Weighing 6.96kg, it’s robust yet manageable for its size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6226M/C3VL0241
  • Product Category Electrically Insulated Ball Bearings
  • Coating Suffix VL0241
  • Insulating Coating Types Insulation coating on outer ring
  • Manufacturers TFL
  • Bore Diameter 130.0 mm
  • Outside Diameter 230.0 mm
  • Width 40.0 mm
  • Net Weight 6.96kg
  • Basic Dynamic Load Rating 156.0 kN
  • Basic Static Load Rating 132.0 kN
  • Reference Speed 5600.0 r/min
  • Breakdown Voltage (DC) 1000 ~3000 V
  • Layer Thickness 100~500 µm
  • Electrical Resistance 50~200 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

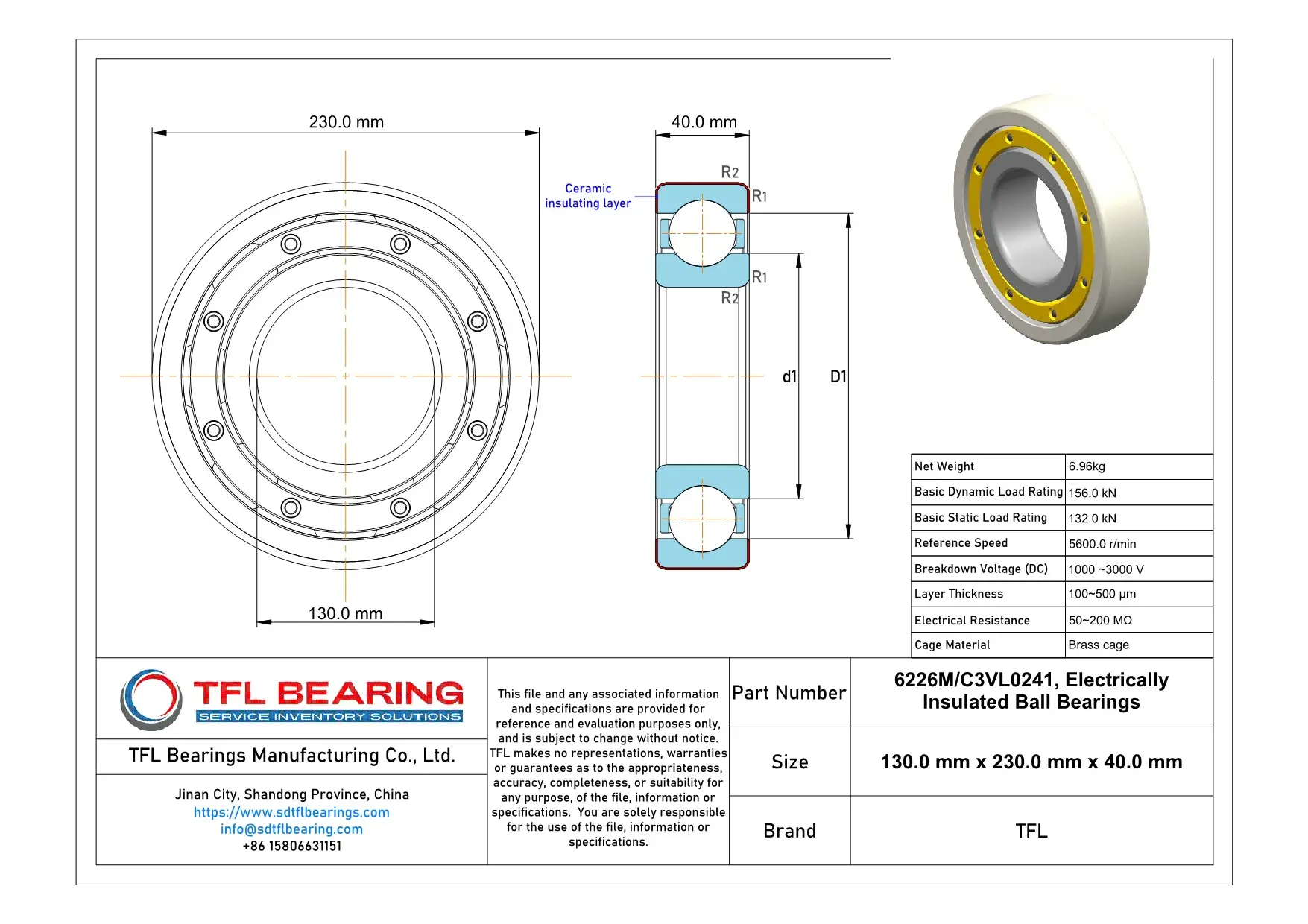

Electrically Insulated Ball Bearings 6226M/C3VL0241 dimension drawing
Download DWG Download PDF

Features

How Is 6226M/C3VL0241 Bearing Engineered for Reliability?

6226M/C3VL0241 Bearing features an insulation coating on the outer ring, preventing electrical current damage.
Its breakdown voltage ranges from 1000 to 3000 V, making it suitable for high-voltage applications.
The brass cage ensures smooth operation, while the C3 radial clearance accommodates thermal expansion.
With a dynamic load rating of 156 kN, it delivers consistent performance under heavy loads.

What Makes 6226M/C3VL0241 Bearing Suitable for High-Temperature Applications?

6226M/C3VL0241 Bearing’s insulation coating withstands high temperatures, maintaining electrical resistance.
The brass cage and chrome steel construction ensure durability in demanding environments.
Its reference speed of 5600 r/min allows efficient operation in high-speed machinery.
The C3 clearance helps manage thermal expansion, reducing stress during operation.

Designed for Durability: 6226M/C3VL0241 Bearing

6226M/C3VL0241 Bearing’s robust construction includes a brass cage for enhanced stability.
The insulation coating provides reliable protection against electrical currents.
With a static load rating of 132 kN, it handles heavy loads without compromising performance.
Its layer thickness of 100~500 µm ensures consistent insulation properties.

Steel vs Ceramic Bearings: Strengths of 6226M/C3VL0241 Bearing

6226M/C3VL0241 Bearing uses chrome steel for strength and a brass cage for smooth operation.
The insulation coating offers superior protection compared to standard ceramic bearings.
Its electrical resistance of 50~200 MΩ prevents current leakage in sensitive applications.
The C3 radial clearance ensures reliable performance under varying thermal conditions.

Application

Industrial Uses of 6226M/C3VL0241 Bearing
6226M/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing and prolongs equipment life. The brass cage ensures smooth operation even under high-speed conditions.

In wind turbines, 6226M/C3VL0241 Bearing handles variable loads while maintaining electrical insulation, reducing downtime due to current leakage. Its C3 clearance allows for thermal expansion in demanding environments.

For railway applications, 6226M/C3VL0241 Bearing’s high breakdown voltage makes it suitable for traction motors, where electrical isolation is critical. The robust design also withstands vibrations common in rail transport.

What Makes 6226M/C3VL0241 Bearing a Preferred Choice?
In industrial pumps, 6226M/C3VL0241 Bearing’s insulation coating resists corrosion from stray currents, ensuring reliable performance. The high dynamic load rating makes it ideal for heavy-duty pumping systems.

For CNC machinery, 6226M/C3VL0241 Bearing provides precise rotation without electrical interference, enhancing machining accuracy. The 230mm outer diameter offers stability for large-scale equipment.

Built for Heavy-Duty Use: 6226M/C3VL0241 Bearing
In steel mills, 6226M/C3VL0241 Bearing withstands extreme temperatures and electrical loads common in rolling mills. Its 156kN dynamic load rating ensures durability in harsh conditions.

For mining equipment, 6226M/C3VL0241 Bearing’s insulation prevents damage from electrical discharges in conveyor systems. The 40mm width provides ample load distribution for continuous operation.

Medical vs Industrial: Where 6226M/C3VL0241 Bearing Excels
In MRI machines, 6226M/C3VL0241 Bearing’s non-conductive properties prevent interference with sensitive imaging systems. The precise dimensions ensure quiet operation for patient comfort.

For food processing equipment, 6226M/C3VL0241 Bearing’s brass cage resists moisture and contaminants, meeting hygiene standards. The ROHS compliance makes it safe for contact with consumables.

Q&A
