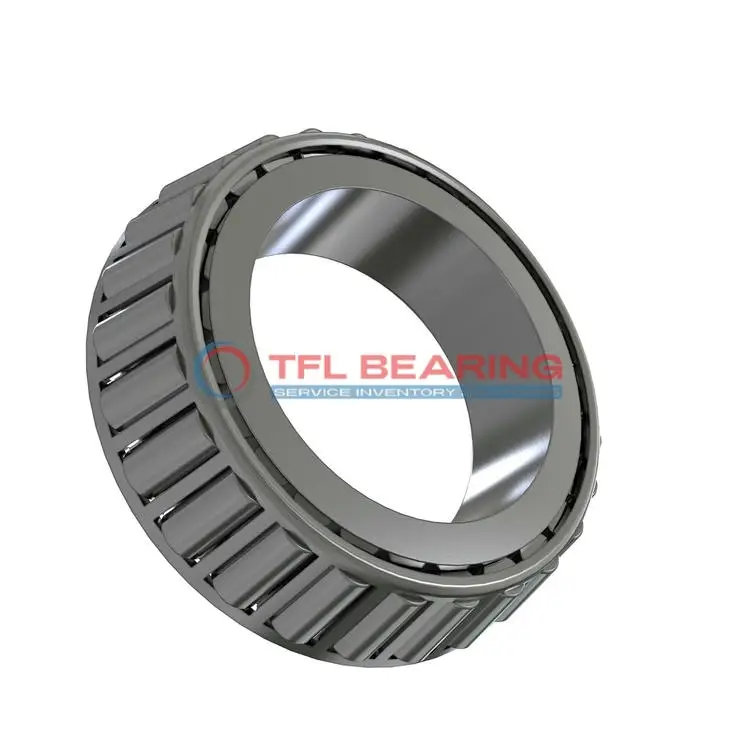

EE649240H Single Cones (Imperial)

EE649240H Single Cones (Imperial)

The EE649240H is a single-row tapered roller bearing cone with a 24-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 570,000 lbf and operates in temperatures from -30°C to 110°C.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The cone features standard radial clearance, with options for C3, C4, or C5 available.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large equipment where combined loads are common.

With an ABEC-1 rating, it offers good precision for its size. Compliant with RoHS and REACH standards, it’s a safe and robust option for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE649240H
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number EE649240H-649310
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 649000
  • Bore Dia 24"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 3.6875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.25"
  • Cone Frontface Backing Diameter 24.92"
  • Cone Backface Backing Diameter 25.28"
  • Cage Cone Frontface Clearance 0.29"
  • Cage Cone Backface Clearance 0.48"
  • Effective Center Location 1.24"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 570000 lbf
  • Static Radial Load 1210000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 148000 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 993000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 93800 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 257000 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is EE649240H Bearing Engineered for Reliability?

EE649240H Bearing is built with chrome steel rings, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 570,000 lbf, ensuring dependable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing wear and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

Application

Industrial Uses of EE649240H Bearing
EE649240H Bearing is commonly used in heavy machinery, such as mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, EE649240H Bearing supports large axles and gear systems, providing reliable performance under high radial and thrust loads. Its inch sizing makes it a preferred choice for American and British vehicle manufacturers.

For industrial conveyor systems, EE649240H Bearing’s open design allows for easy lubrication and maintenance, reducing downtime. The steel cage adds stability, making it suitable for continuous operation.

Where Is EE649240H Bearing Used?
EE649240H Bearing finds its place in railway applications, particularly in wheel assemblies, where its high dynamic load capacity ensures smooth and safe operation. The standard radial clearance offers flexibility for various installation requirements.

In agricultural machinery, EE649240H Bearing supports heavy-duty components like harvesters and tractors. Its ABEC-1 rating provides a balance of precision and cost-effectiveness for these applications.
