231/530 CAKC083W507 Double Row Spherical Roller Bearing

231/530 CAKC083W507 Double Row Spherical Roller Bearing

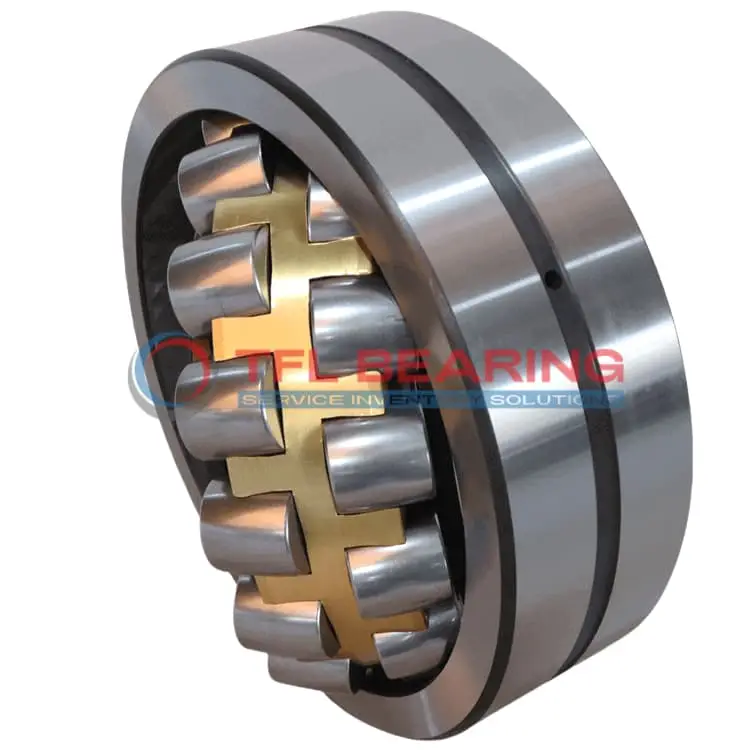

The 231/530 CAKC083W507 is a double-row spherical roller bearing with a large 530mm bore and 870mm outer diameter, built from tough chrome steel. It handles heavy combined loads up to 1916721 lbf and runs smoothly at speeds up to 670 RPM.
Its brass cage and open design make lubrication straightforward, while the tapered bore ensures a secure fit. The bearing operates reliably in temperatures from -30°C to 200°C.
With a C3 radial clearance and P5 precision, it suits demanding industrial environments. Ideal for heavy machinery like crushers or large gearboxes where high radial and axial loads are present.
Weighing 640kg, this robust unit is interchangeable with SKF bearings for easy replacement. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 231/530 CAKC083W507
  • Brand TFL
  • Interchangeable SKF
  • Size 530 x 870 x 272 mm
  • Bore Dia 530 mm
  • Bore Dia Tolerance +0.07mm to 0
  • Outer Dia 870 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 272 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 638 mm
  • Shoulder/Recess Dia Of Outer Ring 763 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1916721 lbf
  • Static Radial Load 3147325 lbf
  • Max Speed 670 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 640 kg
  • Price （US$） US$11,123.46

Features

Performance Features of 231/530 CAKC083W507 Bearing

231/530 CAKC083W507 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 1,916,721 lbf, ensuring reliable operation in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 670 rpm, it balances performance and longevity.

231/530 CAKC083W507 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
Its tapered bore design simplifies installation, saving time and effort.

The C3 radial clearance allows for thermal expansion, ensuring consistent performance.
Lubrication grooves and holes facilitate easy maintenance, reducing downtime.

Application

Industrial Uses of 231/530 CAKC083W507 Bearing
231/530 CAKC083W507 Bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row design handles high radial and axial loads effortlessly. The brass cage ensures smooth operation even under extreme conditions.

Where Is 231/530 CAKC083W507 Bearing Used?
You’ll often find 231/530 CAKC083W507 Bearing in large industrial fans and paper mill machinery, thanks to its robust construction and tapered bore for secure fitting. Its high dynamic load capacity makes it reliable for continuous operation.

Built for Heavy-Duty Use: 231/530 CAKC083W507 Bearing
231/530 CAKC083W507 Bearing excels in wind turbine applications, where its spherical roller design compensates for misalignment. The chrome steel rollers and rings provide long-lasting performance in harsh environments.

Automotive vs Aerospace: Applications of 231/530 CAKC083W507 Bearing
In automotive, 231/530 CAKC083W507 Bearing supports large drivetrain components, while in aerospace, it’s used in ground support equipment. Its metric sizing and high-temperature tolerance make it versatile across industries.

Perfect Fit for Automation: 231/530 CAKC083W507 Bearing
231/530 CAKC083W507 Bearing is ideal for automated production lines, where its precision and load capacity ensure consistent performance. The open design allows for easy lubrication, reducing downtime.
