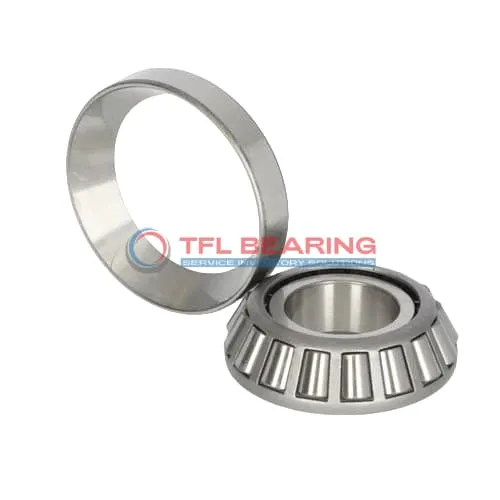

TS (Single Row Tapered Roller Bearings) (Imperial) EE244180-244235

TS (Single Row Tapered Roller Bearings) (Imperial) EE244180-244235

The EE244180-244235 is a single-row tapered roller bearing with an 18″ bore and 23.5″ outer diameter, built from sturdy chrome steel for heavy-duty use. It handles combined loads up to 318,000 lbf radially and 57,100 lbf thrust, making it suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures from -30°C to 110°C, ideal for industrial environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Perfect for large machinery, construction equipment, or heavy transport where robust performance is needed.

Weighing 109.10 lb, it’s built to last while meeting RoHS and REACH standards for safety and compliance. The standard radial clearance can be adjusted to C3/C4/C5 for specific needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE244180-244235
  • Brand TFL
  • Interchangeable Timken
  • Size 18" x 23.5" x 3"
  • Bore Dia 18"
  • Bore Dia Tolerance +0.002" to 0
  • Outer Dia 23.5"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 2.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3"
  • Width Tolerance +0.015" to -0.015"
  • Cone Backface ToClear Radius 0.380"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 21.38"
  • Cone Backface Backing Diameter 19.45"
  • Cup Frontface Backing Diameter 22.48"
  • Cup Backface Backing Diameter 22.32"
  • Cage Cone Frontface Clearance 0.24"
  • Cage Cone Backface Clearance 0.49"
  • Effective Center Location 1.05"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number EE244180
  • Cup Part Number 244235
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 244000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 318000 lbf
  • Static Radial Load 649000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 82400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 57100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 109.10 lb

Features

Performance Features of EE244180-244235 Bearing

EE244180-244235 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 318,000 lbf, ensuring reliable performance in heavy-duty applications.

The single row tapered design provides effective load distribution, enhancing durability.
With a standard radial clearance, it maintains consistent operation under varying conditions.

EE244180-244235 Bearing operates within a temperature range of -30° to 110°C, suitable for diverse environments.
The steel cage ensures proper roller alignment, reducing wear and extending service life.

Installation is straightforward with precise tolerances, saving time during assembly.
Regular lubrication helps maintain optimal performance over extended periods.

Application

Industrial Uses of EE244180-244235 Bearing
EE244180-244235 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The large imperial sizing makes it suitable for robust applications requiring durability.

In automotive systems, EE244180-244235 Bearing supports components such as truck axles and differentials, ensuring smooth operation under high radial and thrust loads. Its chrome steel construction provides long-lasting performance even in demanding conditions.

For industrial automation, EE244180-244235 Bearing is a reliable choice for conveyor systems and large rotating equipment. The open design allows for easy lubrication, maintaining efficiency in continuous operations.

Where Is EE244180-244235 Bearing Used?
EE244180-244235 Bearing finds its place in agricultural machinery, particularly in tractors and harvesters, where its strength and precision are vital. The standard radial clearance ensures consistent performance in varying temperatures.

This bearing is also ideal for wind turbine applications, where its ability to handle dynamic loads contributes to reliable energy generation. The steel cage enhances stability, even in high-speed rotations.

Built for Heavy-Duty Use: EE244180-244235 Bearing
EE244180-244235 Bearing excels in railway applications, supporting axle boxes and wheelsets with its robust design. The tapered rollers distribute loads evenly, reducing wear over time.

In marine environments, EE244180-244235 Bearing withstands harsh conditions while maintaining performance in propulsion systems. Its corrosion-resistant materials ensure longevity despite exposure to saltwater.

Light-Duty vs Heavy-Duty: Best Uses for EE244180-244235 Bearing
For light-duty applications, EE244180-244235 Bearing can be found in industrial fans and pumps, where its precision ensures quiet operation. The standard ABEC-1 rating meets most general machinery needs.

In heavy-duty scenarios, EE244180-244235 Bearing is essential for cranes and lifting equipment, handling extreme loads with ease. The high static radial load capacity makes it a dependable choice for critical operations.
