Drawn Cup Needle Roller Bearings SCH2016

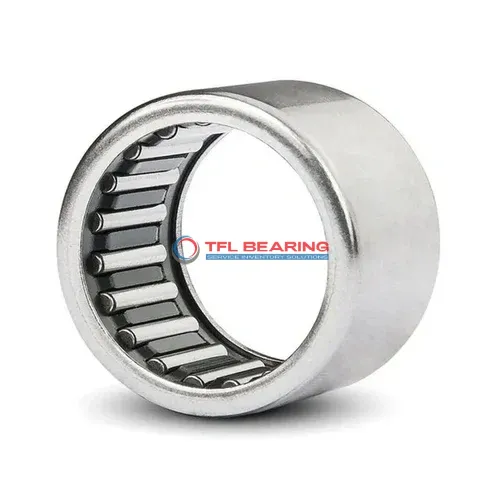

Drawn Cup Needle Roller Bearings SCH2016

The SCH2016 is a drawn cup needle roller bearing with a 1.25″ bore and 1.625″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 8093 lbf and can spin at speeds up to 7900 RPM.
Its open-end design and press-fit mounting make it easy to install, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Perfect for applications like automotive components or machinery where space is limited but high load capacity is needed.
Regular lubrication is recommended to maintain its performance. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCH2016
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.25"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.625"
  • Outer Dia Tolerance Not Rated
  • Width 1"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 8093 lbf
  • Static Radial Load 12814 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 7900 rpm
  • Weight 71 g
Drawn Cup Needle Roller Bearings SCH2016 dimension drawing
Download DWG Download PDF

Features

Why Choose SCH2016 Bearing for Precision Tasks?
SCH2016 Bearing is crafted with steel rings and needles, offering robust radial load support.
Its dynamic radial load capacity reaches 8093 lbf, making it suitable for high-performance applications.
The press-fit shaft mount design ensures secure installation, reducing slippage risks.
With a maximum speed of 7900 rpm, it delivers reliable performance in demanding conditions.
SCH2016 Bearing operates efficiently within a temperature range of -20 to 110°C.
Its open-end construction simplifies lubrication, ensuring smooth operation over time.

Application

Common Applications of SCH2016 Bearing
SCH2016 Bearing is widely used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for space-constrained applications. The steel construction ensures durability even in demanding environments.
In automotive systems, SCH2016 Bearing often supports components like transmission shafts and steering mechanisms. Its press-fit mounting simplifies installation, while the open design allows for easy lubrication.
For automation equipment, SCH2016 Bearing provides reliable performance in robotic arms and conveyor systems. The needle roller design offers smooth operation under high radial loads, making it a versatile choice.
In household appliances like washing machines, SCH2016 Bearing’s inch sizing and robust build ensure long-lasting performance. Its temperature range also makes it suitable for various domestic conditions.
