Drawn Cup Needle Roller Bearings SCH1412

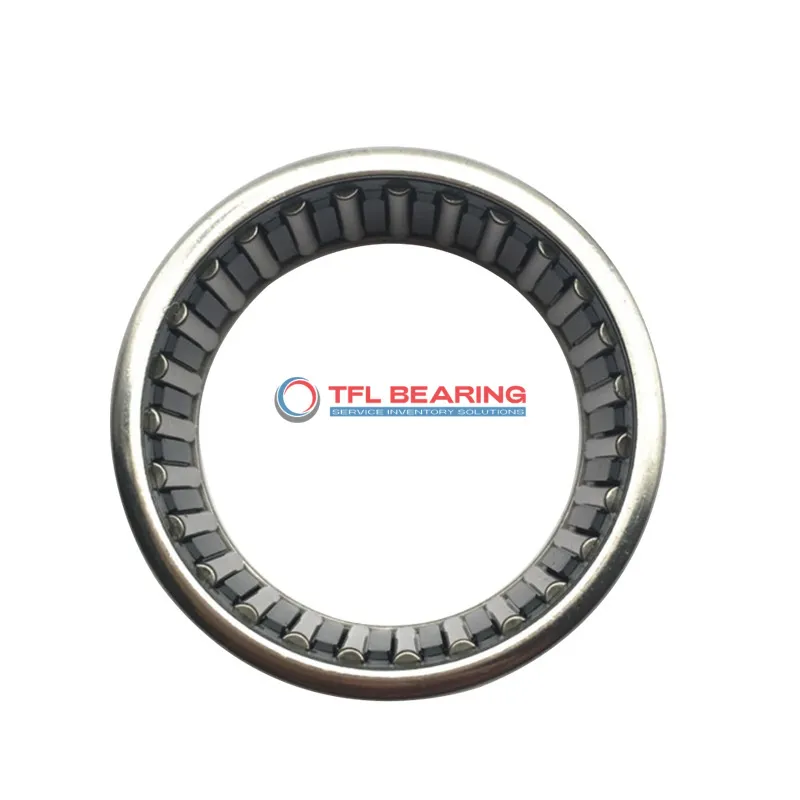

Drawn Cup Needle Roller Bearings SCH1412

The SCH1412 is a drawn cup needle roller bearing with a 0.875″ bore and 1.1875″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 4406 lbf and spins smoothly at speeds up to 11100 RPM.
Its open-end design and press-fit mounting make installation straightforward, while the steel cage ensures durability. The bearing operates well in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like automotive components or small machinery where space is limited.
Regular lubrication is needed to maintain its performance. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCH1412
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.875"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.1875"
  • Outer Dia Tolerance Not Rated
  • Width 0.75"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 4406 lbf
  • Static Radial Load 607 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 11100 rpm
  • Weight 32 g
Drawn Cup Needle Roller Bearings SCH1412 dimension drawing
Download DWG Download PDF

Features

How Does SCH1412 Bearing Support Radial Loads?
SCH1412 Bearing is built with steel rings and needles, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4406 lbf, making it suitable for demanding applications.
The press-fit shaft mount design ensures secure installation, reducing the risk of slippage.
With a maximum speed of 11,100 rpm, it delivers reliable performance in high-speed operations.
SCH1412 Bearing operates efficiently within a temperature range of -20 to 110°C.
Regular lubrication helps maintain smooth functionality and extends its service life.

Application

Common Applications of SCH1412 Bearing
SCH1412 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor systems and gearboxes. Its open-end design simplifies installation and maintenance, making it a go-to for engineers.
In automotive applications, SCH1412 Bearing fits well in transmission systems and steering mechanisms, thanks to its press-fit mounting and reliable steel construction. The inch sizing ensures compatibility with many North American vehicle designs.
For automation equipment, SCH1412 Bearing’s high-speed capability (up to 11,100 rpm) makes it suitable for robotic arms and precision tools. The steel cage and rollers provide durability even in continuous operation.
In household appliances like washing machines, SCH1412 Bearing offers smooth performance due to its balanced load handling. The open seal allows for easy relubrication, extending its lifespan.
Medical devices such as dental drills benefit from SCH1412 Bearing’s precision and low friction. Its temperature range (-20 to 110°C) ensures stability in sterilisation processes.
